Fractal Design Ridge Zwart
Op voorraad bij leverancier (2-5 werkdagen)

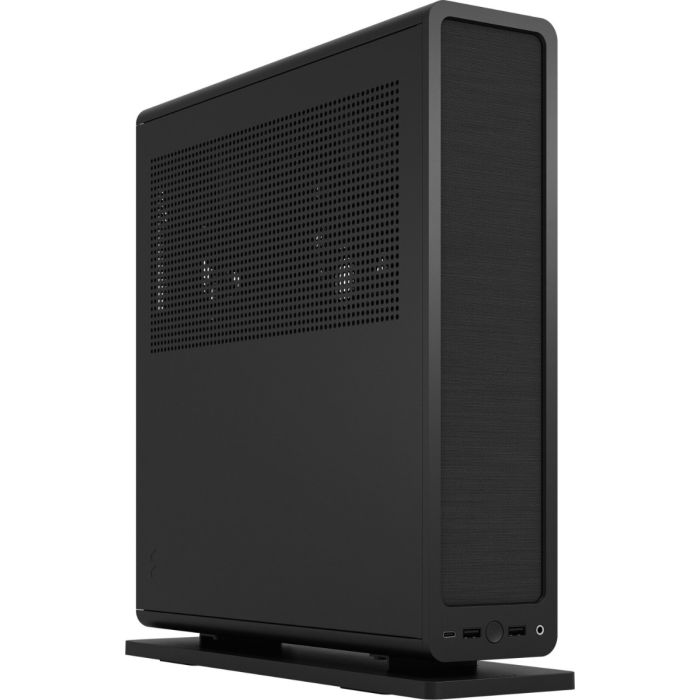

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
- • Supports GPUs up to a length of 335 mm
- • All panels are removable, enabling maximum accessibility
- • PCIe 4.0 riser card included
Specifications
Dedicated 2.5" drive mounts 4x included, 4x positions total
Expansion slots 3-slot
Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
Total fan mounts 2x 120/140 mm and 3x 80 mm
Side fan 2x 120/140 mm (2x PWM Aspect fan 140 mm included)
Top fan 3x 80 mm (not included)
Cable routing space 13,8 mm (behind PSU)
Tool-less slide with thumbscrew lock Side panels
Captive thumbscrews Side panels
Left side panel Steel
Right side panel Steel
Compatibility Motherboard compatibility
compatibility Mini ITX
Power supply type SFX, SFX-L
Side radiator 120 mm when ≤175mm long GPUs are installed (280 mm without GPU)
PSU max length SFX-L
GPU max length 325 mm with SSD installed. 335 mm without SSD installed.
GPU max height 125 mm with top fan(s) installed, 137 mm without top fans
GPU max thickness 57 mm with 2x 140 mm fans installed, 82 mm without side fans
CPU cooler max height 70 mm
Dimensions
Case dimensions Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm
Case dimensions w/o feet/protrusions/screws 355 x 95 x 375 mm
Net weight 4.3 kg
Package dimensions (LxWxH) 426 x 167 x 431 mm
Gross weight 5.5 kg
Volume 12.6 liter
Other Package contents
Case, Accessory box, Manual
SKU (Ridge PCIe 4.0) Black: FD-C-RID1N-11
EAN (Ridge PCIe 4.0) Black: 7340172706090
UPC (Ridge PCIe 4.0) Black: 843276106096
JAN (Ridge PCIe 4.0) Black: 4537694323123
Warranty 2 Years
| EAN | 7340172706090 |
|---|---|
| Vendor ID | FD-C-RID1N-11 |
| Soort kast | HTPC |
| Materiaal | Staal |
| Aantal 2,5 inch intern | 4 bays |
| Aantal 5,25 inch extern | Nee |
| Venster in de zijkant | Nee |
| Front USB aansluiting | USB 3.0 / USB 3.1 |
| Form Factor | Mini-ITX |
| Inclusief voeding | Nee |
| Color | Zwart |
