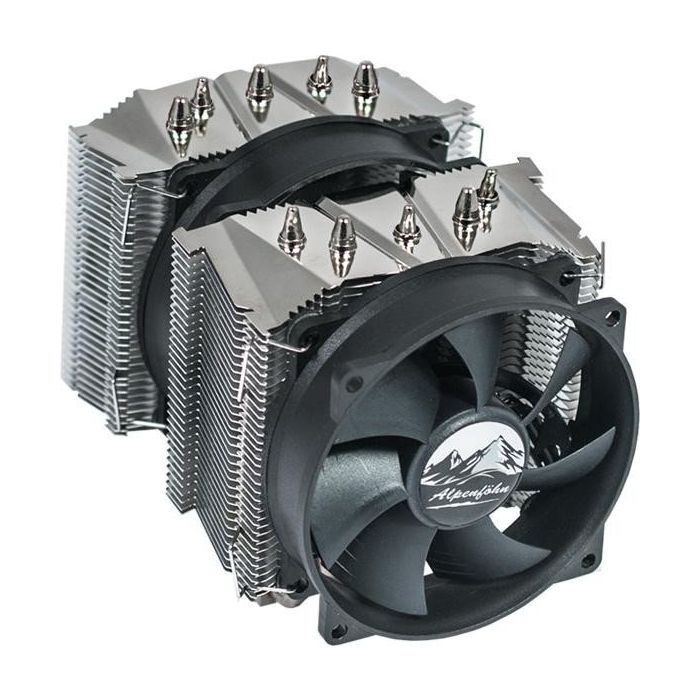

Alpenföhn "Atlas"
We proudly present our brand new premium class Twin Tower cooler ATLAS which is designed to offer outstanding performance in Mini-ITX and Micro ATX systems. With the dual-assymetrical design of the two towers all RAM modules can be used - even if they use large heatspreaders. In addition there is no incompatibility with the PCI-Express slot!
The new aerodynamic shape of the fins lead to the highest possible performance using the 2 included 92mm Wing Boost 2 fans.The convex surface of the base plate improves the thermal contact to the CPU. Especially when using intel CPUs of the latest Haswell generation. The maximum size of 125mm ensures gives you the highest flexibility in chosing your favourite chassis.
The included ultra-high-performance thermal grease Permafrost makes this deal perfect and guarantees the best possible cooling for CPUs in socket 2011, 2011-v3, 1366, 115x (Skylake compatible), 775, AM3(+), AM3, AM2(+), AM2, FM1 and FM2.
Heatsink Specifications
| Part number | 84000000124 |
| Dimensions | 125 x 105 x 140 mm |
| Weight | 650 g |
| Heatpipes | 5 x 6 Heatpipes |
| Fins | Aluminum |
| Baseplate | Full copper base |
Fan Specifications
| Dimensions | 92 x 25 mm |
| Rated Voltage |
12 VDC |
| Airflow | 63,63 m³/h |
| Noise | 8 - 24,3 dB(A) |
| Speed | 400 - 1800 rpm |
| Connector | PWM |
| Input Power |
0,96 W |
| Input Current |
0,08 A |
| Voltage Range |
4,2 - 13,2 VDC |
| MTTF | 250.000 h |
| EAN | 4250280302905 |
|---|---|
| Vendor ID | 84000000124 |
| Voorraad status | End of life |
| Socket | Socket 1150, Socket 1151, Socket 1155/1156, Socket 1366, Socket 2011, Socket 2011-v3, Socket 775, Socket AM2/AM3, Socket AM3+, Socket FM1, Socket FM2/FM2+ |
| Aantal Heatpipes | 5 Heatpipes |
| Type koeling | Lucht koeling |
