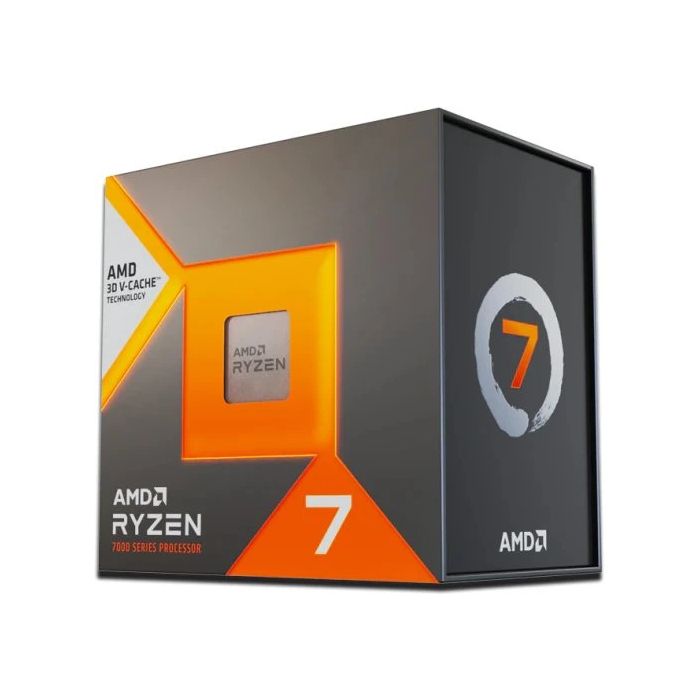

AMD Ryzen 7 7700X3D / 4.0 GHz

General Specifications
Name AMD Ryzen™ 7 7700X3D
Family Ryzen
Series Ryzen 7000 Series
Form Factor Desktops , Boxed Processor
Market Segment Enthusiast Desktop
Regional Availability Global
Former Codename Raphael AM5
Processor Architecture Zen 4
# of CPU Cores 8
Multithreading (SMT) Yes
# of Threads 16
Max. Boost Clock Up to 4.5 GHz
Base Clock 4 GHz
L1 Cache 512 KB
L2 Cache 8 MB
L3 Cache 96 MB
Default TDP 120W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm²
I/O Die (IOD) Size 122mm²
Package Die Count 2
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology Precision Boost 2
Instruction Setx 86-64
Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64
Thermal Solution (PIB) Not Included
Recommended Cooler Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) 89°C
Launch Date 07/16/2026
*OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps) 4
Native USB 3.2 Gen 1 (5Gbps) 0
Native USB 2.0 (480Mbps) 1
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes (Total/Usable) 28 , 24
NVMe Support Boot , RAID0 , RAID1 , RAID10
System Memory Type DDR5
Memory Channel s2
Max. Memory 128 GB
System Memory Subtype UDIMM
Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support Yes (Requires mobo support)
Graphics Capabilities
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes
Product IDs
Product ID Boxed 100-100002235WOF
Security
AMD Secure Processor Yes
AMD Platform Secure Boot Yes
Windows Secure Boot Yes
UEFI Secure Boot Yes
Windows Device Guard Yes
Supervisor Mode Execution Prevention (SMEP) Yes
Guest Mode Execution (GMET) Trap Yes
Virtualization-Based Security (VBS) Yes
Windows Secured-Core PC Yes
Firmware TPM Yes
AMD-V (SVM) Yes
AMD AVIC (Interrupt Virtualization) Yes
AMD-Vi (I/O MMU Virtualization) Yes
Second Level Address Translation (SLAT) Yes
Advanced Encryption Standard New Instructions (AES-NI) Yes
AMD Enhanced Virus Protection (NX bit) Yes
AMD Shadow Stack Yes
