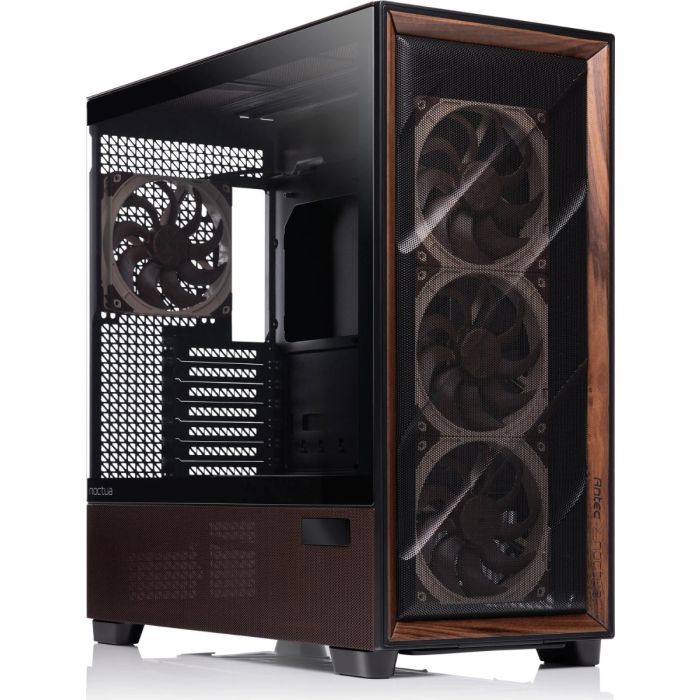

Antec Flux Pro Noctua Edition

Dimensions & weight

Form factor Full tower
Volume 70.77 l
Width 245 mm
Height (with feet) 545 mm
Height (without feet) 523 mm
Depth 530 mm
Dimensions  245x545x530 mm
Weight (with fans) 13.75 kg
Weight (without fans) 12.46 kg
Materials

Frame Steel 1 mm
Side panel Tempered glass 4 mm
Mesh 1 mm Front panel
FSC certified walnut wood
Steel mesh Plastic
Grommets Silicone
Compatibility & clearance

Max. CPU cooler height 190 mm
CPU cooler compatibility see compatibility section
Max. video card (GPU) length 455 mm
Motherboard form factors Mini-ITX, µATX, ATX, E-ATX
Max. motherboard width 285 mm
Max. PSU length with HDD 300 mm
Max. PSU length without HDD 470 mm
Max. PSU length @ 90° rotated 180 mm
Cable routing space 32.5 mm
Features

Dust filter

Display with Antec iUnity

Reverse connector motherboard support

Vertical GPU mounting

Removable fan/radiator brackets

Cable management ties

Modular hard drive cages

Drive bays & PCI slots

PCI slots 8
Combined 3.5" / 2.5” drive bays 4
Dedicated 2.5" drive bays 2
I/O panel

Connectors 1x USB-C 3.1 (10 Gbit/s) 2x USB-A 3.0 (5 Gbit/s) 3.5 mm headphone/mic combo jack
Buttons Power button Reset button
Temperature & display switch

Radiator support 360/420 mm compatibility details

Front mounted 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
Max. front mounted radiator stack thickness  90 mm
Top mounted 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
Max. top mounted radiator stack thickness  75 mm
Rear mounted 120 mm, 140 mm
Bottom mounted 120 mm, 240 mm
PSU cover mounted 120 mm, 240 mm, 360 mm
Fan support

Fan configuration
3x NF-A14x25 G2 PWM (front intake)
2x NF-A12x25 G2 PWM (PSU shroud intake)
1x NF-A14x25 G2 PWM (rear exhaust)
Fan support

Front 3x 140 mm, 3x 120 mm
Top 3x 140 mm, 3x 120 mm
Rear 1x 140 mm, 1x 120 mm
Bottom 2x 140 mm, 2x 120 mm
PSU cover 3x 120 mm
Fan: NF-A14x25 G2 PWM


Size (Form factor) 140 x 140 x 25 mm (square)
Speed range 0 – 1500 rpm
Airflow (max.) 155.6 m³/h (91.58 CFM)
Acoustical noise (max.) 24.8 dB(A)
Static pressure (max.) 2.56 mm H₂O
Rated voltage 12 V
Connector 4-pin
Colour Brown
Warranty 6 years
Fan: NF-A12x25 G2 PWM


Size (Form factor) 120 x 120 x 25 mm (square)
Speed range 0 – 1800 rpm
Airflow (max.) 107.3 m³/h (63.15 CFM)
Acoustical noise (max.) 22.5 dB(A)
Static pressure (max.) 3.14 mm H₂O
Rated voltage 12 V
Connector 4-pin
Colour Brown
Warranty 6 years
Fan hub: NA-FH1

Colour Black
Input connector S-ATA, 4-pin PWM
Fan connector 4-pin PWM
Max. power via S-ATA input 54 W
Max. power via 4-pin PWM input 24 W
Operating voltage 5 - 12 V
Size 93 x 43 x 12.5 mm
Weight 31 g
Fan compatibility All Noctua 12V and 5V fans, many third party fans
Warranty 6 years
Logistical specifications

Packaging dimensions 640 x 352 x 653 mm
Packaging weight (including product) 17.7 kg
EAN 9010018900330
UPC 841501190339
