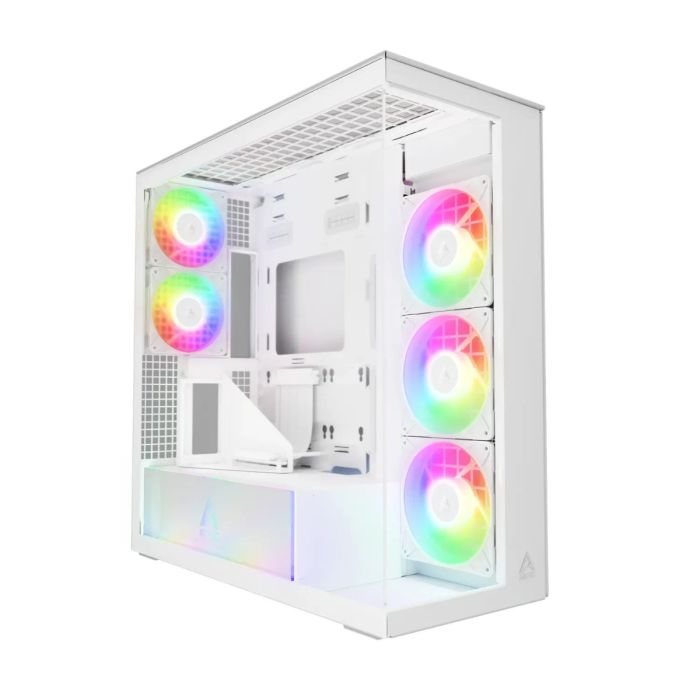

Arctic Xtender VG White

Compatibility and Clearances
Motherboard Support    up to E-ATX (285 mm wide)
Fan Support    Top:
3x 120 mm | 3x 140 mm
Side:
3x 120 mm | 3x 140 mm (included)
Rear:
2x 120 mm (included)
Radiator Support    Top:
240 / 280 / 360 / 420 mm
Side:
240 / 280 / 360 / 420 mm
CPU Cooler    up to 171 mm
PSU    ATX up to 318 mm (200 mm with HDD Cage)
GPU    up to 482 mm (337 mm with Side Radiator)
Front I/O    USB-C (USB 3.2 Gen2x1 - 10 Gbps)
2x USB-A (USB 3.2 Gen1x1 - 5 Gbps)
3.5 mm Jack (Line-In/Out)
Power Button
Warranty    6 Years
Operating Ambient Temperature    0–40 °C
Net Weight    15.4 kg
Volume    64 l
Dimensions    529 (L) x 231 (W) x 529 (H) mm
Drive Bays    Behind the Mainboard Tray: 3× 2,5"
HDD Cage: 2x 3,5" or 2,5" + 1x 2,5"
PCI Slots    7
Cable Management Space    35 mm
Dust Filters    Top, Right Side
PSU RGB Stripe Specifications
LEDs    24 × A-RGB Gen 2 LEDs
Current | Voltage    0.89 A | 5 V DC
Connector    3-Pin A-RGB Plug + Socket
Fan Specification
2x P12 Pro A-RGB (pre-installed at rear)

Speed    600–3000 rpm
Air Flow    77 cfm | 131 m³/h
Static Pressure    6.9 mmH2O
Bearing    Fluid Dynamic Bearing
Current | Voltage    0.33 A | 12 V DC
Connector    4-Pin Fan Plug + Socket
RGB Specifications
LEDs    12x A-RGB Gen 2 LEDs
Current | Voltage    0.40 A | 5 V DC
Connector    3-Pin A-RGB Plug + Socket
3x P14 Pro Reverse A-RGB (pre-installed at side)

Speed    400–2650 rpm
Airflow    98 cfm | 166.5 m³/h
Static Pressure    5.1 mmH2O
Bearing    Fluid Dynamic Bearing
Current | Voltage    0.40 A | 12 V DC
Connector    4-Pin Fan Plug + Socket
RGB Specifications
LEDs    12 x A-RGB Gen 2 LED
Current | Voltage    0.40 A | 5 V DC
Connector    3-Pin A-RGB Plug + Socket

Only VG versions
Vertical GPU Mounting Kit Specification
Dimensions    196 (L) x 153 (W) x 140 (H) mm
Supported Graphics Cards    Up to 482 mm Length and 3-Slot Mounting
Compatibility    PCIe 4.0 and Backward Compatible
Riser Cable    160 mm, PCIe 4.0 x16
PCI Slots Required    7
