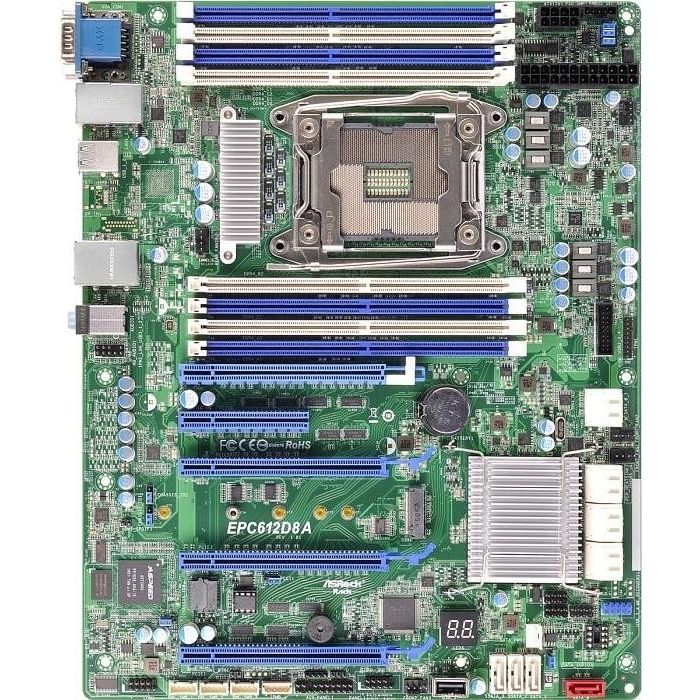

ASRock EPC612D8A
€340,00
End of life
SKU
GSER19
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
- ATX 12'' x 9.6''
- Socket LGA 2011 R3 Intel Xeon processor E5-1600/2600 v3 series
- Supports Quad channel DDR4 2133/1866 LR/R/ECC, 8 x DIMM slots
- Supports 9 SATA3 by C612 (1 support SATA DOM), 2 SATA3 by Marvell 9172
- Supports 4x PCIe 3.0 x16, 1x PCIe 3.0 x8 and 1 mini PCIe slot
- Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
- Supports Intel Dual GLAN (Intel i210 + Intel i217)
- Supports Audio by ALC 1150 (3 Jack)
Specifications
| MB Physical Status | |
| Form Factor | - ATX |
| Dimensions | - 12'' x 9.6'' (30.5 cm x 24.4 cm) |
| Processor System | |
| CPU | - Intel® Xeon® processor E5-1600/2600 v3 series |
| Socket | - Single Socket LGA 2011 R3* *Please use narrow type CPU Cooler |
| Chipset | - Intel® C612 |
| System Memory | |
| Capacity | - 8 DIMM slots |
| Type | - Quad Channel memory technology - Support DDR4 2133/1866/1600 RDIMM and LRDIMM |
| DIMM Size Per DIMM | - RDIMM: 32GB, 16GB, 8GB, 4GB - LRDIMM: 64GB, 32GB |
| Voltage | - 1.2V |
| Expansion Slot | |
| PCIe 3.0 x 16 | - 4 slots (PCIE1/PCIE3: x16x0 or x8/x8, PCIE5/PCIE7: x16x0 or x8/x8 ) |
| PCIe 3.0 x 8 | - 1 slot (PCIE4: x8 or x4 with mini PCIe x4 ) |
| mini PCIe | - 1 (support M.2 (Full and Half size)) (x4) |
| Storage | |
| SATA Controller | - Intel® C612 : 6 x SATA3 6.0Gb/s; 4 x sSATA3 6.0Gb/s; support RAID 0, 1, 5, 10 |
| Additional Storage Controller | - Marvell 9172: 2 x SATA3 6Gbps |
| Ethernet | |
| Interface | - 1000 /100 /10 Mbps |
| LAN Controller | - 2 x RJ45 by Intel® i210 + Intel® i217LM - 1 x RJ45 Dedicated IPMI LAN port - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function* - Supports PXE - LAN1 Supports NCSI *With Intel® i217LM LAN chip on board, the LAN Teaming function will be limited to below 3 modes as Intel® Active Management Technology (Intel® AMT) Enabled – Adapter Fault Tolerance (AFT), Switch Fault Tolerance (SFT) and Adaptive Load Balancing (ALB) teams. |
| Management | |
| BMC Controller | - ASPEED AST2400 |
| IPMI Dedicated LAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2400 |
| VRAM | - DDR3 16MB |
| Audio | |
| Audio Codec | - Realtek ALC1150 |
| Rear Panel I/O | |
| VGA Port | - 1 x D-Sub |
| USB 2.0 Port | - 2 |
| USB 3.0 Port | - 2 |
| Lan Port | - 2 + 1 (IPMI) Lan port (RJ45) - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 (COM1) |
| ThunderBolt | - NA |
| Display Port | - NA |
| Audio | - 3 Jack |
| Internal Connector | |
| Auxiliary Panel Header | - 1 (include chassis intrusion, location button & LED, front LAN LED, system fault LED) |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 1x CPU Fan, 4x system Fan (4-pin) |
| ATX Power | - 1 (24-pin) + 1 (8-pin) |
| USB 3.0 Header | - 1 (support 2 USB 3.0) |
| USB 2.0 Header | - 1 (support 2 USB 2.0) |
| Type A USB 3.0 Port | - 1 |
| Front Panel | - 1 |
| 4 pin 5V box connector | - 1 |
| System BIOS | |
| BIOS Type | - 128Mb AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing - Card Side Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS | |
| OS | Microsot Windows® - Windows® 7 (32 / 64 bit) - Windows® 8 (32 / 64 bit) - Windows® 8.1 (32 / 64 bit) - Windows® 10 (64 bit) - Server 2008 R2 SP1 (64 bit) - Server 2012 (64 bit) - Server 2012 R2 (64 bit) Linux - RedHat Enterprise Linux Server 6.5 (32 / 64 bit) - CentOS 5.10 / 6.5 (32 / 64 bit) - SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit) - FreeBSD 9.2 (32 / 64 bit) - Fedora core 19 (64 bit) - Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit) Virtual - VMWare® ESXi 5.5 (not supported for Marvell 9172) |
| Environment | |
| Temperature | - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| EAN | 4717677324778 |
|---|---|
| Vendor ID | EPC612D8A |
| Voorraad status | End of life |
| Form Factor | ATX |
| Socket | Intel Xeon 2011-v3 |
| Type Geheugen | DDR4 |
| PCIe 3.0 | 4 sloten |
| PCIe 4.0 | Nee |
| VGA onboard | Ja |
| SLI / Crossfire | Geen SLI/Crossfire |
| Aantal sata poorten | 10 poorten |
| M.2-Slot | Nee |
| USB 3.0 | 2X USB 3.0 |
| USB 3.1 | Nee |
| Bluetooth/Wifi | Nee |
