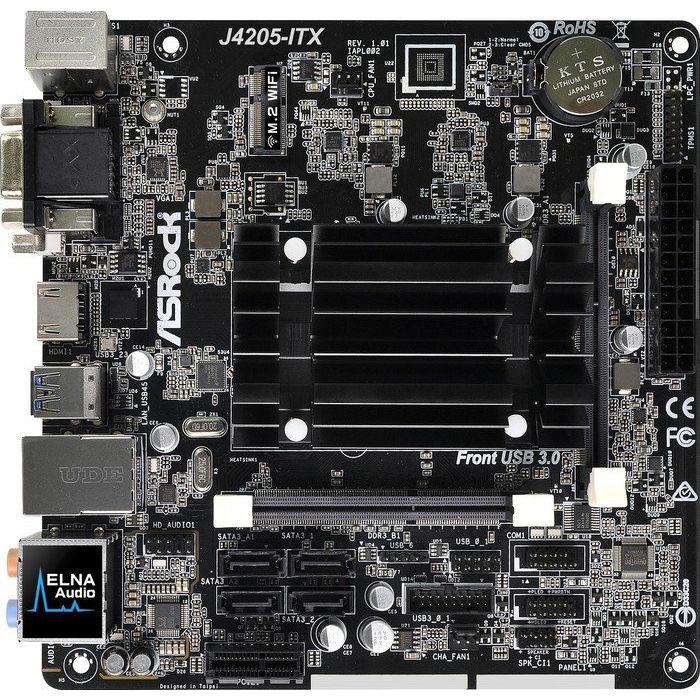

ASRock J4205-ITX

€122,00
End of life
SKU
sk214451
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
  1. ASRock Super Alloy
  2. Intel® Quad-Core Pentium® Processor J4205 (up to 2.6 GHz)
  3. Supports DDR3/DDR3L 1866 SO-DIMM
  4. 1 PCIe 2.0 x1, 1 M.2 (Key E)
  5. Graphics Output Options: D-Sub, HDMI, DVI-D
  6. 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  7. 4 SATA3
  8. 4 USB 3.0 (2 Front, 2 Rear)
  9. Supports Full Spike Protection, ASRock Live Update & APP Shop
 General
Unique Feature ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU - Intel® Quad-Core Pentium® Processor J4205 (up to 2.6 GHz)
Memory - Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots*
- Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB**

*2GB DRAM per module is not supported.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 compliant wake up events
- Supports jumperfree
- SMBIOS 3.0 support
 Audio, Video and Networking
Graphics - Integrated Intel® HD Graphics 505: 18 EUs inside (Up to 800MHz)
- DirectX 12, Pixel Shader 5.0
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
 Expansion / Connectivity
Slots - 1 x PCI Express 2.0 x1 Slot
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Connector - 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))*

*USB3_0_1 is shared with USB_0_1.
Rear Panel I/O - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Software and BIOS Software
- ASRock Power Gear
- ASRock XFast LAN*
UEFI
- ASRock Power Gear
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Hardware Monitor - CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design
OS - Microsoft® Windows® 10 64-bit*
- Linux: Ubuntu 16.10 / Fedora 25

*For the updated Windows® 10 driver, please visit ASRock's website for details.
Certifications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
Meer informatie
EAN 4717677332049
Vendor ID 90-MXB270-A0UAYZ
Voorraad status End of life
Form Factor Mini-ITX
Socket Intel CPU on board
Type Geheugen SO-DDR3
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Geen SLI/Crossfire
Aantal sata poorten 4 poorten
M.2-Slot Nee
USB 3.0 2X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Nee
