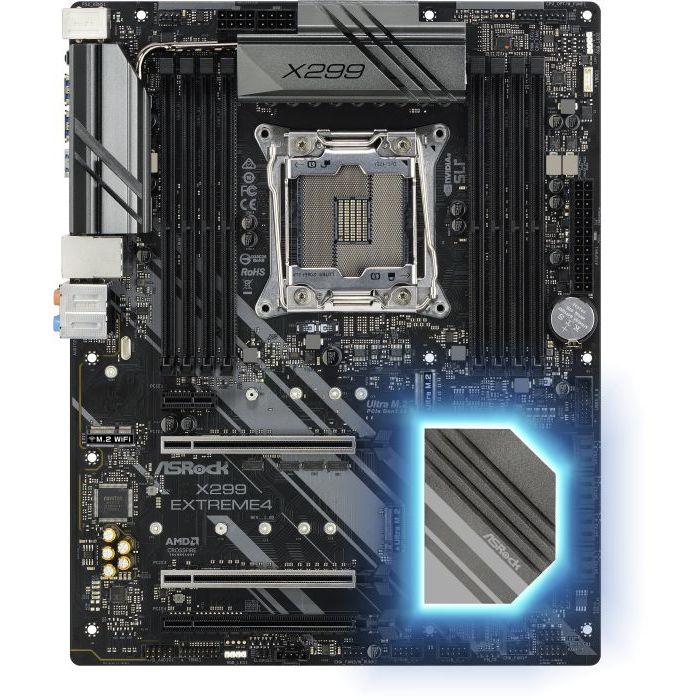

ASRock X299 Extreme4

Beschikbaarheid: Op stock in de winkel 1-2 dagen levertijd

€ 219,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

ASRock
My icon

Meer dan 17 jaar ervaring met high-end pc's !

My icon

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

My icon

Uw order altijd goed verpakt !

My icon

Niet alleen een online shop, maar ook een échte winkel ! Meer info...


Beschrijving
Details
  • Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket
  • 11 Power Phase Design, Dual Power Connectors
  • Supports DDR4 4200+(OC)
  • XXL Aluminum Alloy Heatsink & Heatpipe Design
  • 3 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Socket (Key E)
  • NVIDIA® Quad SLI., AMD Quad CrossFireX™
  • 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.1 Gen2 10Gb/s (1 Type-A, 1 Type-C)
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear)
  • Intel® Gigabit LAN
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • Supports Purity Sound. 4 & DTS Connect
  • ASRock RGB LED
  • Unieke Eigenschappen
    ASRock USB 3.1 Gen2
    - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
    - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    - XXL Aluminum Alloy Heatsink
    - Premium 60A Power Choke
    - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
    - Dual-Stack MOSFET (DSM)
    - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    - Matte Black PCB
    - High Density Glass Fabric PCB
    ASRock Steel Slots
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket
    - Digi Power design
    - 11 Power Phase design
    - Supports Intel® Turbo Boost Max Technology 3.0*

    *Please note that the 4-Core processors only support Intel® Turbo Boost Technology 2.0.
  • Chipset
    - Intel® X299
  • Geheugen
    - Quad Channel DDR4 Memory Technology
    - 8 x DDR4 DIMM Slots
    - Supports DDR4 4200+(OC)* / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
    - Supports non-ECC RDIMM (Registered DIMM)
    - Max. capacity of system memory: 128GB**
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    *The maximum memory frequency supported may vary by processor type.
    Bekijk de geheugen ondersteuningslijst op ASRock’s website voor meer informatie.

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.1 Compliant wake up events
    - SMBIOS 3.0 Support
    - CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, PEGRCOMP Voltage Multi-adjustment
  • Grafisch
    - n/a
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - Supports Purity Sound™ 4
    - Nichicon Fine Gold Series Audio Caps
    - 120dB SNR DAC with Differential Amplifier
    - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
    - Pure Power-In
    - Direct Drive Technology
    - PCB isolate shielding
    - Impedance Sensing on Front Out port
    - Individual PCB Layers for R/L Audio Channel
    - 15μ Gold Audio Connector
    - Supports DTS Connect
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I219V
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Sloten
    - 3 x PCI Express 3.0 x16 Slots*
    - 1 x PCI Express 3.0 x1 Slot**
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - Supports NVIDIA® Quad SLI™ and SLI™
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
    - 15μ Gold Contact in VGA PCIe Slot (PCIE2 and PCIE3)

    *If you install CPU with 44 lanes, PCIE2/PCIE3/PCIE4 will run at x16/x16/x4.
    If you install CPU with 28 lanes, PCIE2/PCIE3/PCIE4 will run at x16/x8/x4.
    If you install CPU with 16 lanes, PCIE2/PCIE3/PCIE4 will run at x16/x0/x4 or x8/x8/x4.
    Supports NVMe SSD as boot disks

    **If PCIE1 slot is occupied, M2_3 slot will be disabled.
  • Opslaan
    - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug*
    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *Als M2_1 wordt gebruikt door een SATA-type M.2 apparaat, wordt SATA3_0 uitgeschakeld.
    If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.

    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Aansluitingen
    - 1 x Virtual RAID On CPU Header
    - 1 x TPM Header
    - 1 x Power LED and Speaker Header
    - 2 x RGB LED Headers*
    - 1 x CPU Fan Connector (4-pin)**
    - 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    - 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    - 1 x Thunderbolt™ AIC Connector (5-pin)*****
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
    - 1 x Performance Mode / Easy OC Header

    *Supports in total up to 12V/3A, 36W LED Strip

    **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

    ****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
    CPU_OPT/W_PUMP1, CHA_FAN1, CHA_FAN2 and CHA_FAN3/W_PUMP2 can auto detect if 3-pin or 4-pin fan is in use.

    *****The Thunderbolt™ AIC card can be installed in the enabled PCIe slot (depending on CPU type).
  • I/O Achterpaneel
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x Optical SPDIF Out Port
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
    - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
    - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - 1 x Clear CMOS Button
    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Software en UEFI
    Software
    - ASRock A-Tuning
    - ASRock RGB LED
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Crashless BIOS
    - ASRock UEFI System Browser
    - ASRock UEFI Tech Service
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Ondersteuning CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accesoires
    - Quick Installation Guide, Support CD, I/O Shield
    - 4 x SATA Data Cables
    - 1 x ASRock SLI_HB_Bridge_2S Card
    - 3 x Screws for M.2 Sockets
    - 1 x WiFi Bracket
  • Hardware Monitor
    - Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
    - Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCSFR
  • Vorm factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certificaten
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
Extra info
Extra info
EAN 4717677334562
Vendor ID 90-MXB690-A0UAYZ
Voorraad status Op stock in de winkel 1-2 dagen levertijd
Form Factor ATX
Socket Intel 2066
Type Geheugen DDR4
PCI-E 3.0 2 sloten
VGA onboard Nee
SLI / Crossfire SLI + Crossfire
Aantal sata poorten 8 poorten
M.2-Slot 2x
USB 3.0 4X USB 3.0
USB 3.1 2X USB 3.1
Bluetooth/Wifi Nee
Firewire onboard Nee
Thunderbolt Nee
