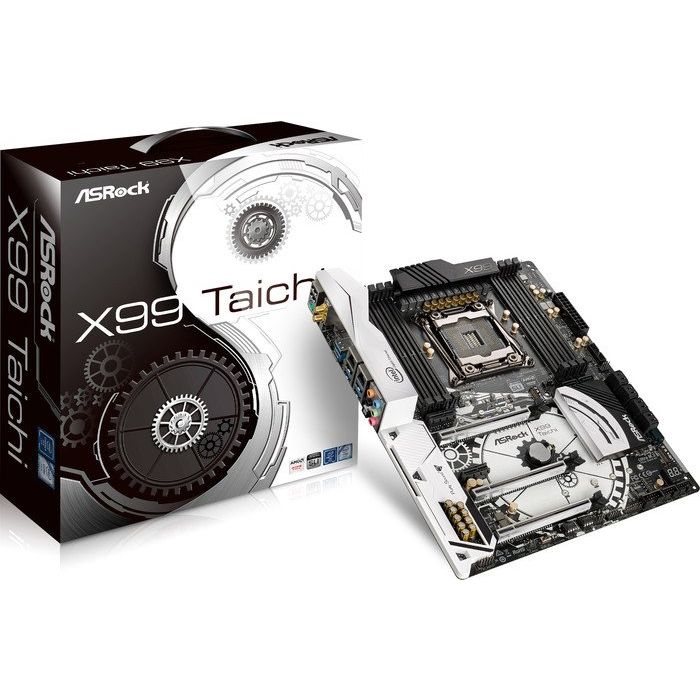

ASRock X99 Taichi
€265,00
End of life
SKU
sk214422
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
X99 Taichi
- ASRock Super Alloy
- Supports Intel® Core™ i7 and Xeon® 18-Core Processors (Socket 2011-3)
- Digi Power, 12 Power Phase design
- Supports Quad Channel DDR4 3300+(OC)
- 3 PCIe 3.0 x16, 2 PCIe 2.0 x1
- Supports AMD 3-Way CrossFireX™, NVIDIA® 3-Way SLI™
- 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 3 & DTS Connect
- 10 SATA3, 1 SATA Express, 2 Ultra M.2(PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 10Gb/s (1 Type-A + 1 Type-C), 5 USB 3.0 (2 Front, 3 Rear)
- Dual Intel® Gigabit LAN
- 1 M.2(Key E for WiFi), 802.11a/b/g/n/ac
- SLI™ HB Bridge free bundled
-
Unique FeatureASRock USB 3.1
- ASRock USB 3.1 Type-A Port (10 Gb/s)
- ASRock USB 3.1 Type-C Port (10 Gb/s)
ASRock X Series OC Socket
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Steel Slots
ASRock 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop -
CPU- Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family for the LGA 2011-3 Socket
- Digi Power design
- 12 Power Phase design
- Supports Intel® Turbo Boost Max Technology 3.0*
- Supports Untied Overclocking Technology
*Intel® Core™ i7-59xx/58xx processors only support Intel® Turbo Boost Max Technology 2.0. -
Chipset- Intel® X99
-
Memory- Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Supports DDR4 3300+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory
- Supports non-ECC RDIMM (Registered DIMM)
- Supports DDR4 ECC, un-buffered memory/RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
- Max. capacity of system memory: 128GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Please refer to Memory Support List on ASRock's website for more information. -
BIOS- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment -
Graphics- n/a
-
Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Supports Purity Sound™ 3
- Nichicon Fine Gold Series Audio Caps
- 115dB SNR DAC with differential amplifier
- TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB isolate shielding
- Supports DTS Connect -
LAN- Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel® I218V, 1 x GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Dual LAN with Teaming*
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
*Windows® 10 is not supported. -
Wireless LAN- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.0 / 3.0 + High speed class II -
Slots- 3 x PCI Express 3.0 x16 Slots (PCIE2 @ x16 mode; PCIE4 @ x16 mode; PCIE5 @ x0 mode) (PCIE2 @ x16 mode; PCIE4 @ x8 mode; PCIE5 @ x8 mode)*
- 2 x PCI Express 2.0 x1 Slots
- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT module
- 15μ Gold Contact in VGA PCIe Slot (PCIE2 and PCIE4)
*If you install CPU with 28 lanes, PCIE2/PCIE4/PCIE5 will run at x16/x0/x8 or x8/x8/x8.
Supports NVMe SSD as boot disks. -
Storage- 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13), NCQ, AHCI, Hot Plug*
- 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4 and SATA3_5)**
- 1 x Ultra M.2 Socket (M2_2), support type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***
- 1 x Ultra M.2 Socket (M2_1), support type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***
*SSATA3_3 connector is shared with the M2_1; SSATA3_2 connector is shared with the M2_2.
RAID is supported on SATA3_0 ~ SATA3_5 ports only.
**Support to be announced.
***If you install CPU with 28 lanes, the M2_1 only supports SATA type M.2 module.
Supports NVMe SSD as boot disks.
Supports ASRock U.2 Kit. -
Connector- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector (4-pin)* (Smart Fan Speed Control)
- 1 x CPU Optional/Water Pump Fan Connector (4-pin)*
- 3 x Chassis Fan Connectors (4-pin)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Headers (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Dr. Debug with LED
- 1 x BIOS Selection Switch
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
***CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. -
Rear Panel I/O- 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical SPDIF Out Port
- 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Type-A Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
- 3 x USB 3.0 Ports (Intel® X99) (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone -
Software and UEFISoftware
- ASRock A-Tuning
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
- ASRock Fast Boot (Fast Boot, Restart to UEFI)*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock UEFI Guide
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_Bridge_2S Card
- 1 x ASRock SLI_Bridge_2S Card
- 1 x ASRock 3-Way SLI-2S1S Bridge Card
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 2 x Screws for Ultra M.2 Socket -
Hardware Monitor- CPU / Chassis / CPU Optional/Water Pump temperature sensing
- CPU / Chassis / CPU Optional/Water Pump Fan Tachometer
- CPU / Chassis / CPU Optional/Water Pump Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU / Chassis / CPU Optional/Water Pump Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages -
Form Factor- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
- 4 x 2oz Copper -
OS- Microsoft® Windows® 10 64-bit / 8.1 64-bit / 8 64-bit / 7 32-bit / 7 64-bit
-
Certifications- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
EAN | 4717677331219 |
---|---|
Vendor ID | 90-MXB380-A0UAYZ |
Voorraad status | End of life |
Form Factor | ATX |
Socket | Intel 2011-v3 |
Type Geheugen | DDR4 |
PCIe 3.0 | 3 sloten |
PCIe 4.0 | Nee |
VGA onboard | Nee |
SLI / Crossfire | SLI + Crossfire |
Aantal sata poorten | 10 poorten |
M.2-Slot | Ja |
USB 3.0 | 3X USB 3.0 |
USB 3.1 | 2X USB 3.1 |
Bluetooth/Wifi | Ja |
