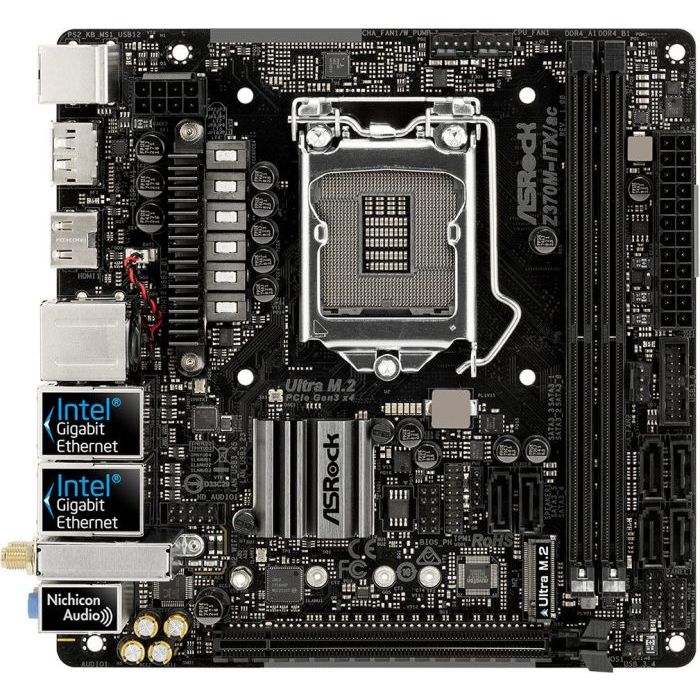

ASRock Z370M-ITX/AC

Beschikbaarheid: Niet voorradig ( wordt verwacht 10 - 15 werkdagen )

€ 148,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

ASRock

Altijd persoonlijke service en aanpak !

Meer dan 13 jaar ervaring met high-end pc's !

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

Uw order altijd goed verpakt !
Altijd bevestiging via mail.

Niet alleen een online shop, maar ook een échte winkel ! Meer info...

Beschrijving
Details
  • Supports 8th Generation Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 4000+(OC)
  • 1 PCIe 3.0 x16
  • Graphics Output Options: 2 HDMI, DisplayPort
  • Supports Triple Monitor
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec)
    Nichicon Fine Gold Series Audio Caps
  • 6 SATA3, 1 Ultra M.2
  • 8 USB 3.1 Gen1(2 Front, 6 Rear)
  • Dual Intel® Gigabit LAN
  • Intel® 802.11ac WiFi + BT 4.2 Module
  • Intel® Optane™ Memory Ready
  • Unique Feature
    ASRock Super Alloy
    - Premium 60A Power Choke
    - Dual-Stack MOSFET (DSM)
    - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    - Sapphire Black PCB
    - High Density Glass Fabric PCBIntel® 802.11ac WiFiASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports 8th Generation Intel® Core™ Processors (Socket 1151)
    - Digi Power design
    - 6 Power Phase design
    - Supports Intel® Turbo Boost 2.0 Technology
    - Supports Intel® K-Series unlocked CPUs
    - Supports ASRock BCLK Full-range Overclocking
  • Chipset
    - Intel® Z370
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM Slots
    - Supports DDR4 4000+(OC)* / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 32GB**
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    *8th Gen Intel® CPU supports DDR4 up to 2666.
    Please refer to Memory Support List on ASRock's website for more information.

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU, DRAM, PCH 1.0V, VCCST, CPU Internal PLL Voltage Multi-adjustment
  • Graphics
    - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
    - DirectX 12
    - HWA Encode/Decode: VP9 8-bit, VP9 10- bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1
    - Max. shared memory 1024MB**
    - Three graphics output options: DisplayPort 1.2 and 2 x HDMI ports
    - Supports Triple Monitor
    - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    - Supports HDCP with HDMI and DisplayPort 1.2 Ports
    - Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    **The size of maximum shared memory may vary from different operating systems.
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - Nichicon Fine Gold Series Audio Caps

    *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Dual LAN with Teaming*
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE

    *Teaming is supported on Windows® 10 RS2 and above.
  • Wireless LAN
    - Intel® 802.11ac WiFi Module
    - Supports IEEE 802.11a/b/g/n/ac
    - Supports Dual-Band (2.4/5 GHz)
    - Supports high speed wireless connections up to 433Mbps
    - Supports Bluetooth 4.2 / 3.0 + High speed class II
  • Slots
    - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
    - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

    *Supports NVMe SSD as boot disks
  • Storage
    - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*
    - 1 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    - 1 x TPM Header
    - 1 x Chassis Intrusion Header
    - 1 x CPU Fan Connector (4-pin)*
    - 1 x Chassis Fan Connector (4-pin)
    - 1 x Chassis Optional/Water Pump Fan Connector (4-pin)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    **The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
  • Rear Panel I/O
    - 2 x Antenna Ports
    - 1 x PS/2 Mouse/Keyboard Port
    - 2 x HDMI Ports
    - 1 x DisplayPort 1.2
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)
    - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock A-Tuning
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 2 x ASRock WiFi 2.4/5 GHz Antennas
    - 1 x Screw for M.2 Socket
  • Hardware Monitor
    - Temperature Sensing: CPU, Chassis, Chassis Optional/Water Pump Fans
    - Fan Tachometer: CPU, Chassis, Chassis Optional/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis Optional/Water Pump Fans
    - Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/Water Pump Fans
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
Extra info
Extra info
EAN 4717677334371
Vendor ID 90-MXB620-A0UAYZ
Voorraad status Nee
Form Factor Mini-ITX
Socket Intel 1151-v2
Type Geheugen DDR4
PCI-E (16x en 8x ) 1 slot
VGA onboard Ja, via processor
SLI / Crossfire Geen SLI/Crossfire
Aantal sata poorten 6 poorten
M.2-Slot 1x
USB 3.0 6X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Ja
Firewire onboard Nee
Thunderbolt Nee
