MSI MAG H670 TOMAHAWK WIFI DDR4 Vorige MSI MAG H670 TOMAHAWK WIFI DDR4

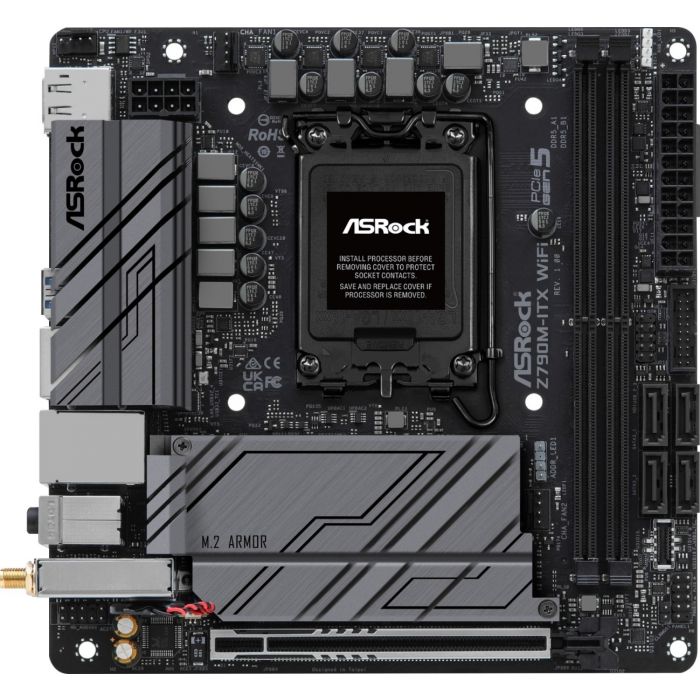

main product photo

ASRock Z790M-ITX WiFi

€253,00
Op voorraad bij leverancier (2-5 werkdagen) Op voorraad bij leverancier (2-5 werkdagen)
SKU
419546
  • Supports 13 Gen and 12 Gen Intel Core Processors
  • 7+1+1 Phase Power Design, Dr.MOS for VCore+GT
  • 2 x DDR5 DIMMs, supports up to 6800+(OC)
  • 1 PCIe 5.0 x16
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 and SATA3), 4 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)
  • Intel® 2.5G LAN, Intel® 1G LAN
  • 802.11ax Wi-Fi 6E + Bluetooth
Voeg toe aan je wensenlijst Vergelijk
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
    • Unique Feature
      Superb Productivity
      - PCIe Gen5 (Graphic)
      - Dual Channel DDR5
      Rock-Solid Durability
      - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
      - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
      Ultrafast Connectivity
      - 2.5G LAN, 802.11ax Wi-Fi 6E Module
      EZ Update
      - ASRock Auto Driver Installer
    • CPU
      - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
      - Supports Intel® Hybrid Technology
      - Supports Intel® Turbo Boost Max 3.0 Technology
      - Supports Intel® Thermal Velocity Boost (TVB)
      - Supports Intel® Adaptive Boost Technology (ABT)
    • Chipset
      - Intel® Z790
    • Memory
      - Dual Channel DDR5 Memory Technology
      - 2 x DDR5 DIMM Slots
      - Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
      - Max. capacity of system memory: 64GB
      - Supports Intel® Extreme Memory Profile (XMP) 3.0

      *1DPC 1R Up to 6800+ MHz (OC), 5600 MHz Natively.
      1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.
    • BIOS
      - 128Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      - Intel® Xe Graphics Architecture (Gen 12)
      - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
      - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
      - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

      *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    • Audio
      - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      - Nahimic Audio
    • LAN
      - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)
      - 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
    • Wireless LAN
      - 802.11ax Wi-Fi 6E Module
      - Supports IEEE 802.11a/b/g/n/ac/ax
      - Supports Dual-Band 2x2 with extended 6GHz band support*
      - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
      - Supports Bluetooth + High speed class II
      - Supports MU-MIMO

      *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
      A 6GHz compatible router is required for 6E functionality.
    • Slots
      CPU:
      - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
      Chipset:
      - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

      *Supports PCIe riser cards to extend one x16 slot to two x8 slots
      Supports NVMe SSD as boot disks
    • Storage
      CPU:
      - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
      Chipset:
      - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
      - 4 x SATA3 6.0 Gb/s Connectors

      *Supports Intel® Volume Management Device (VMD)
      Supports NVMe SSD as boot disks
    • RAID
      - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
      - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*

      * Requires additional M.2 NVMe expansion cards to support RAID 5



  • USB
    - 1 x USB 3.2 Gen2x2 Type-C (Rear)
    - 1 x USB 3.2 Gen2x2 Type-C (Front)
    - 4 x USB 3.2 Gen2 Type-A (Rear)
    - 2 x USB 3.2 Gen1 (Front)
    - 3 x USB 2.0 (1 Rear, 2 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x eDP Signal Connector
    - 1 x RGB LED Header*
    - 1 x Addressable LED Header**
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 2 x Chassis Fan Connectors (4-pin)****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*****

    *Supports in total up to 12V/3A, 36W LED Strip

    **Supports in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1/WP supports the fan power up to 2A (24W).
    CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

    ****CHA_FAN1~2 support the fan power up to 1A (12W).

    *****Actual speed depends on USB devices and extension cable in the chassis.
  • Rear Panel I/O
    - 2 x Antenna Ports
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x Optical SPDIF Out Port
    - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
    - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    - 1 x USB 2.0 Port
    - 2 x RJ-45 LAN Ports
    - 1 x Line Out Jack (Gold Audio Jack)
    - 1 x Microphone Input Jack (Gold Audio Jack)
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Polychrome SYNC
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 1 x I/O Shield
    - 2 x SATA Data Cables
    - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    - 2 x Screws for M.2 Sockets
  • Form Factor
    - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    - 8 Layer PCB
  • OS
    - Microsoft® Windows® 10 64-bit / 11 64-bit

    *Windows® 10 only supports version 21H2 or later
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)





Meer informatie
EAN 4710483941054
Vendor ID 90-MXBKE0-A0UAYZ
Form Factor Mini-ITX
Socket Intel 1700
Type Geheugen DDR5
PCIe 3.0 Nee
PCIe 4.0 Nee
PCIe 5.0 1 slot
VGA onboard Ja, via processor
SLI / Crossfire Geen SLI/Crossfire
Aantal sata poorten 4 poorten
M.2-Slot 2x
USB 3.0 Nee
USB 3.1 5X USB 3.1
Bluetooth/Wifi Ja
Thunderbolt Nee
Minstens 2 jaar carry in garantie

Bij ons krijgt u altijd de fabrieksgarantie, dat kan variëren van 2, 3, 5 tot 10 jaar of soms lifetime* garantie van de fabrikant !

Notebook en monitor fabrikanten hanteren vaak een ophaal en retour service.

Bewaar altijd de verpakking van het product, op die manier gaat de afhandeling vele malen sneller!
En bent u niet verantwoordelijk voor enige transportschade wegens ondeugdelijke verpakking.



* Lifetime = Zo lang het product gefabriceerd wordt bij de fabrikant.
