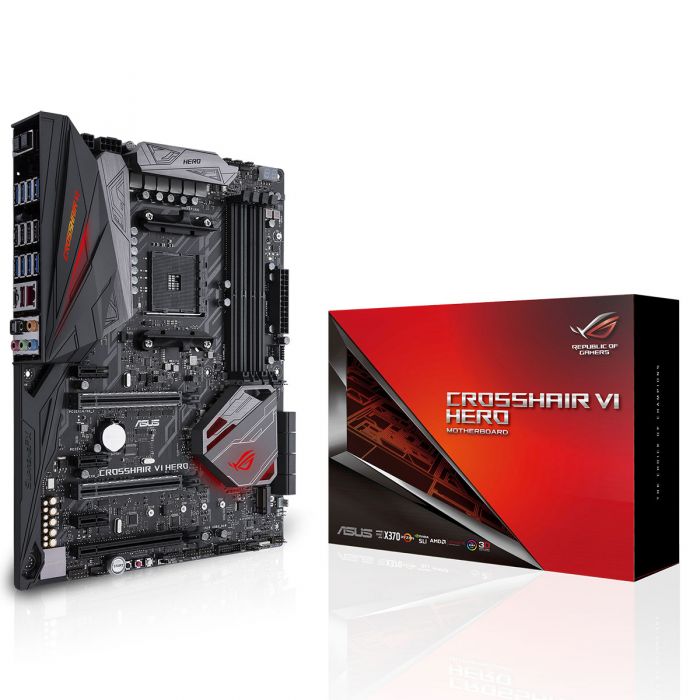

Asus Crosshair VI Hero

€192,00
End of life
SKU
221566
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

AMD X370 ATX Gaming motherboard with Aura Sync RGB LEDs, M.2, USB3.1 front-panel connector and type - A/C

  • ROG Water Cooling Zone : Dominate your cooling system
  • Aura Sync RGB LED: Stunning synchronized effects and two Aura 4-pin RGB-strip headers
  • SupremeFX: Exclusive new codec plus intuitive Sonic Studio III and Sonic Radar III
  • 5-Way Optimization: One-click system-wide overclocking.
  • Best gaming networking: Intel® Gigabit Ethernet, LANGuard and GameFirst technologies
  • Best gaming connectivity: USB 3.1 front-panel connector, M.2 and both USB 3.1 Type-A and Type-C
  • Best gaming durability: Safeslot and premium components for maximum durability
  • CPU
    AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
    Supports AM4 Socket 14 nm CPU
    Supports CPU up to 8 cores
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD X370
  • Memory
    AMD Ryzen™ Processors
    4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    AMD 7th Generation A-series/Athlon™ Processors
    4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support
    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD CrossFireX™ Technology
  • Expansion Slots
    AMD Ryzen™ Processors
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
    AMD 7th Generation A-series/Athlon™ Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD X370 chipset
    1 x PCIe 2.0 x16 (max at x4 mode) *1
    3 x PCIe 2.0 x1
  • Storage
    AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    AMD 7th Generation A-series/Athlon™ Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
    AMD X370 chipset :
    8 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Intel® I211-AT, 1 x Gigabit LAN Controller(s)
    Anti-surge LANGuard
    ROG GameFirst IV
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - ESS® ES9023P
    - Supports up to 32-Bit/192kHz playback *2
    Audio Feature :
    - Gold-plated jacks
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III
  • USB Ports
    AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
    4 x USB 3.0 port(s) (4 at back panel, blue)
    AMD X370 chipset :
    1 x USB 3.1 front panel connector port(s)
    AMD X370 chipset :
    6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
    AMD X370 chipset :
    6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)
    ASMedia® USB 3.1 controller :
    2 x USB 3.1 port(s) (2 at back panel, , Type-A + Type-C)
  • ROG Exclusive Features
    ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Slow Mode
    Overwolf
    ReTry Button
    Safe Boot Button
    Start Button
    Reset Button
    LN2 Mode
    GameFirst IV
    ROG Aura
    - Aura Lighting Control
    - Aura RGB Strip Headers
    Extreme Engine Digi+ :
    - MicroFine Alloy Chokes
    - NexFET™ Power Block MOSFET
    - 10K Black Metallic Capacitors
    Mem TweakIt
    KeyBot II
    - One-click Overclocking
    - DirectKey
    - ClrCMOS
    - Power On
    UEFI BIOS features :
    - O.C. Profile
    - Tweakers' Paradise
    - ROG SSD Secure Erase
    - Graphic Card Information Preview
    ROG RAMDisk
    Loadline Calibration
    BIOS Flashback
  • Special Features
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
    - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
    TPU
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
    Gamer's Guardian:
    - SafeSlot
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-DIMM
    - ASUS Q-Connector
  • Back I/O Ports
    1 x LAN (RJ45) port(s)
    1 x USB 3.1 (black)Type-C
    1 x USB 3.1 (red)Type-A
    8 x USB 3.0 (blue)
    4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
    1 x Optical S/PDIF out
    1 x Clear CMOS button(s)
    1 x USB BIOS Flashback Button(s)
    5 x Gold-plated audio jacks
    1 x M.2 Wi-Fi Slot
  • Internal I/O Ports
    2 x RGB Header(s)
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x TPM header
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x W_PUMP+ connector
    1 x AIO_PUMP connector
    1 x 24-pin EATX Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Thermal sensor connector(s)
    1 x Reset button(s)
    1 x LN2 Mode switch(es)
    1 x ROG extension (ROG_EXT) header(s)
    1 x Safe Boot button
    1 x ReTry button
    1 x Slow Mode jumper(s)
    1 x System panel connector
    2 x 3D Mount screw port(s)
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x Start button
    1 x USB 3.1 front panel connector
  • Accessories
    User's manual
    ASUS Q-Shield
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x ROG big sticker
    1 x Q-Connector
    0 x 10-in-1 ROG cable label
    1 x Extension Cable for RGB strips (80 cm)
    1 x 3D printing mount package
    1 x ROG coasters
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS,
    ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
    F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, WOL by PME, PXE
  • Support Disc
    Drivers
    AURA
    ROG GameFirst IV*3
    ROG RAMDisk
    ROG RAMCache II
    ROG CPU-Z
    ROG Mem TweakIt
    ROG Keybot II
    Sonic Studio III
    Sonic Radar III
    Overwolf
    CloneDrive
    Kaspersky® Anti-Virus
    DAEMON Tools Software
    Winzip
    ASUS WebStorage
    ASUS Utilities
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( cm x cm )
  • Note
    *1 PCIeX4_3 slot shares bandwidth with PCIeX1_1, PCIeX1_2 and PCIeX1_3.
    *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
    *3 ROG GameFirst IV is only available for Windows 10/8.1 64-bit
Meer informatie
EAN 4712900660241
Vendor ID 90MB0SC0-M0EAY0
Voorraad status End of life
Form Factor ATX
Socket AMD AM4
Type Geheugen DDR4
PCIe 3.0 2 sloten
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire SLI + Crossfire
Aantal sata poorten 8 poorten
M.2-Slot Ja
USB 3.0 8X USB 3.0
USB 3.1 2X USB 3.1
Bluetooth/Wifi Nee
