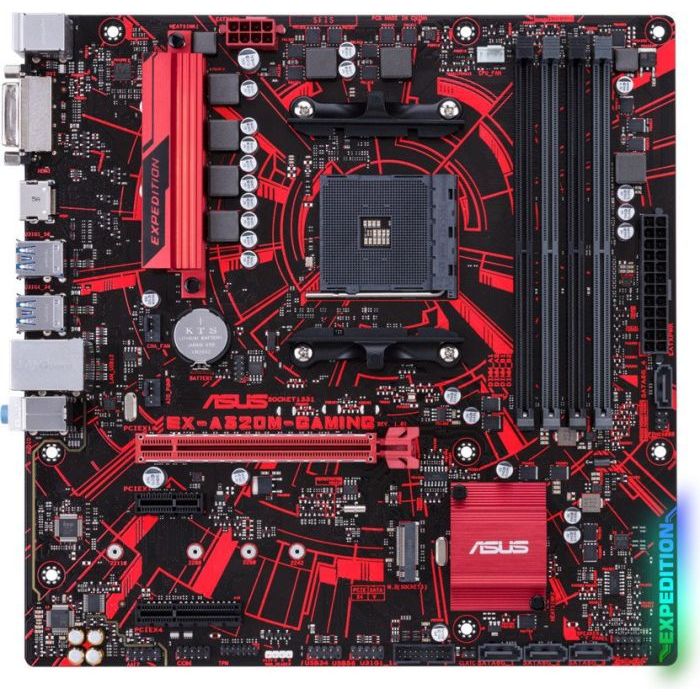

Asus EX-A320M-Gaming

AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list

AMD A320

AMD Ryzen™ Processors
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz ECC, Non-ECC, Un-buffered Memory
AMD Ryzen™/7th Generation A-series/Athlon™ Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz ECC, Non-ECC, Un-buffered Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB

AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon™ Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset
1 x PCIe 2.0 x4 (x2 mode)
1 x PCIe x1

AMD Ryzen™ Processors :
1 x M.2 x4 Socket 3(SATA 6Gb/s & PCI-E Gen3 x4 link),
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3,
AMD A320 chipset :
4 x SATA 6Gb/s port(s),

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

AMD A320 chipset :
6 x USB 3.0 port(s) (4 at back panel, , 2 at mid-board)
AMD A320 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM

Windows® 10 64-bit

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)

1 x AAFP connector
1 x RGB Header(s)
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x AIO PUMP Header

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
