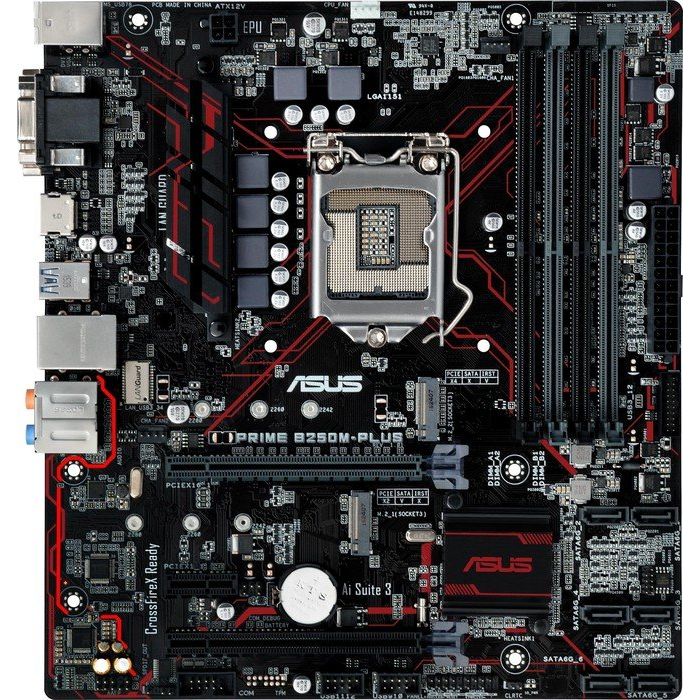

Asus Prime B250M-PLUS

€88,00
End of life
SKU
sk214562
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Intel LGA-1151 mATX motherboard with LED lighting, DDR4 2400MHz, dual M.2, Intel Optane memory ready, HDMI, SATA 6Gb/s, USB 3.0

  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • LED illumination: Lighting control for both PCIe slot and audio trace paths
  • Dual native M.2: Lightning-fast storage speeds
  • USB Type-C: Convenient reversible connectivity
  • Intel® Optane™ memory ready: Exploit the latest high-speed storage technology
  • CPU
    Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B250
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
    ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Multi-GPU Support
    Supports AMD CrossFireX™ Technology
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
    1 x PCIe 3.0/2.0 x16 (x4 mode, black)
    1 x PCIe 3.0/2.0 x1
  • Storage
    Intel® B250 Chipset :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)*2
    6 x SATA 6Gb/s port(s), gray
    Intel® Optane™ Memory Ready *3
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s)
    ASUS LAN Guard
    Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB Ports
    Intel® B250 Chipset :
    1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Support 3A power output)
    Intel® B250 Chipset :
    5 x USB 3.0/2.0 port(s) (3 at back panel, blue, Type-A, 2 at mid-board)
    Intel® B250 Chipset :
    6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - ESD Guards
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution & MOS Heatsink
    - ASUS Fan Xpert 2+
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
    3 x USB 3.0 (blue) Type-A
    2 x USB 2.0
    6 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    2 x M.2 screws
    1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)
  • Operating System
    Windows® 10 64-bit
    Windows® 8.1 64-bit *4
    Windows® 7 32-bit *4
    Windows® 7 64-bit *4
  • Form Factor
    mATX Form Factor
    9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm )
  • Note
    *1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
    *2 Only M.2_2 socket can support Intel® Optane™ Memory.
    *3 Intel® Optane™ Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane™ memory modules,ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
    *4 Windows® 8.1 64-bit and Windows® 7 32 / 64-bit are only supported when using 6th Generation Intel® Processors
Meer informatie
EAN 4712900598933
Vendor ID 90MB0SI0-M0EAY0
Voorraad status End of life
Form Factor Micro-ATX
Socket Intel 1151
Type Geheugen DDR4
PCIe 3.0 1 slot
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire SLI compatible
Aantal sata poorten 6 poorten
M.2-Slot Ja
USB 3.0 4X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Nee
