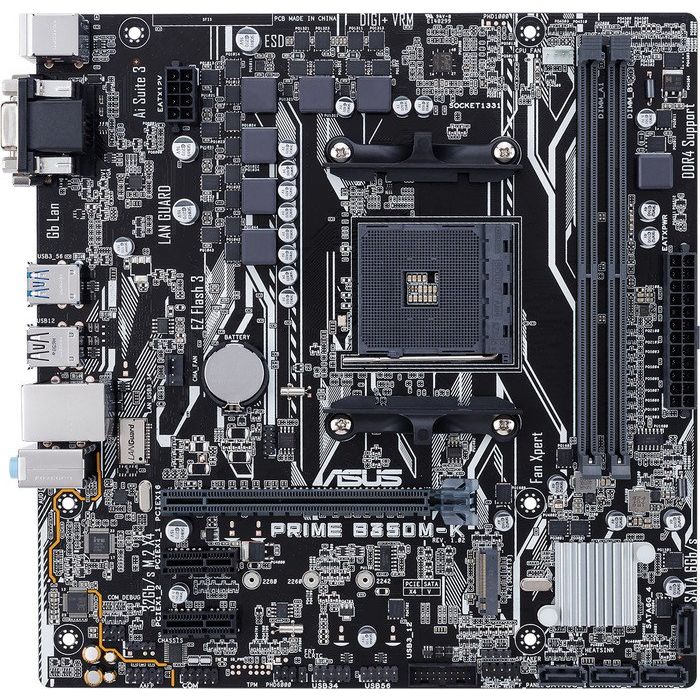

Asus Prime B350M-K

€75,00
End of life
SKU
sk214636
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

AMD AM4 uATX motherboard with LED lighting, DDR4 3200MHz, 32Gb/s M.2, USB3.0,SATA 6Gb/s, USB 3.0.

  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • LED illumination: Lighting control for audio trace paths
  • Native M.2: Lightning-fast storage speeds
  • One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3
  • CPU
    AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
    Supports CPU up to 8 cores
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD B350
  • Memory
    AMD Ryzen™ Processors
    2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *1
    AMD 7th Generation A-series/Athlon™ Processors
    2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *2
    Multi-VGA output support : DVI-D/RGB ports
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 2048 MB
  • Expansion Slots
    AMD Ryzen™ Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    AMD 7th Generation A-series/Athlon™ Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD B350 chipset
    2 x PCIe 2.0 x1
  • Storage
    AMD B350 chipset :
    4 x SATA 6Gb/s port(s), gray,
    Support Raid 0, 1, 10
    AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    AMD 7th Generation A-series/Athlon™ Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
  • USB Ports
    AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
    4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
    AMD B350 chipset :
    2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    AMD B350 chipset :
    6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
  • Operating System Support
    Windows® 10 , 64bit
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 1 (blue)
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x Speaker connector
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    mATX Form Factor
    8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
  • Note
    1*Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM Per Channel.
    2*.AMD Ryzen™ Processor does not support
Meer informatie
EAN 4712900697377
Vendor ID 90MB0UH0-M0EAY0
Voorraad status End of life
Form Factor Micro-ATX
Socket AMD AM4
Type Geheugen DDR4
PCIe 3.0 1 slot
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Geen SLI/Crossfire
Aantal sata poorten 4 poorten
M.2-Slot Ja
USB 3.0 4X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Nee
