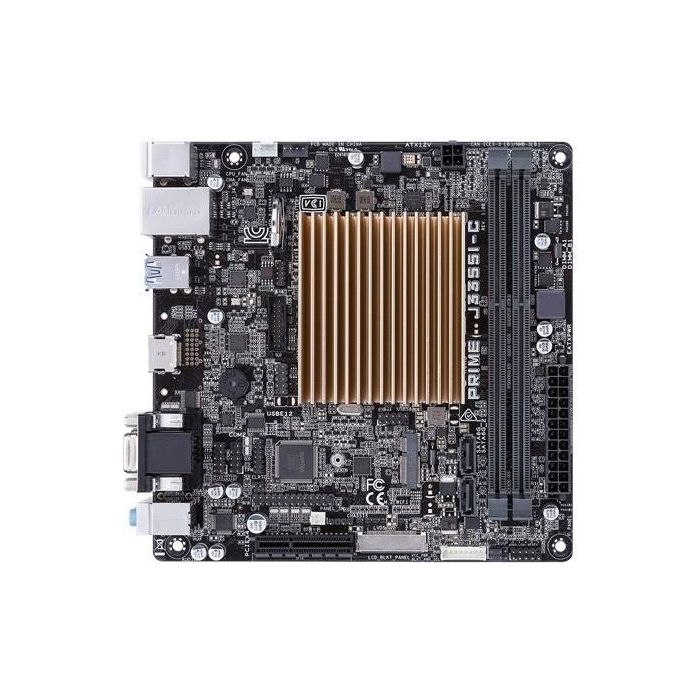

Asus PRIME J3355I-C

Beschikbaarheid: End of life

€ 79,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Asus
My icon

Meer dan 17 jaar ervaring met high-end pc's !

My icon

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

My icon

Uw order altijd goed verpakt !

My icon

Niet alleen een online shop, maar ook een échte winkel ! Meer info...


Beschrijving
Details

ASUS PRIME J3355I-C Intel Celeron Dual-Core SoC fanless microATX Motherboard with 5X Protection HDMI VGA SATA 6G

  • 5X Protection II – Advanced hardware safeguards for all-around protection
  • Fan Xpert:Dedicated CPU and case fan controls
  • New UEFI BIOS and EZ Mode:Friendlier, easier, and more intuitive with helpful info added
  • Compatibility with over 1000+ Tested devices
  • CPU
    Build in Intel® Celeron® Dual-Core J3355 SoC onboard Processors
  • Memory
    2 x U-DIMM, Max. 16GB, DDR3 1866*/1600/1333 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value.
    * Due to the chipset limitation, we recommend that you use single-sided 4GB or 8GB, or double-sided 8GB DDR3 per DIMM slot. The maximum memory for the two DIMM slots is 16GB.
  • Graphic
    Integrated Graphics Processor
    Multi-VGA output support : HDMI/RGB/LVDS ports
    - Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz
    - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 512 MB
    Supports up to 2 displays simultaneously
  • Expansion Slots
    1 x PCIe 2.0 x4 (x1 mode)
  • Storage
    Built-in Controller :
    2 x SATA 6Gb/s port(s),
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *1
    - Supports : Jack-detection, Front Panel Jack-retasking
  • USB Ports
    Built-in Controller :
    4 x USB 3.1 Gen 1 port(s) (4 at back panel, )
    ASMedia® ASM1042 controller :
    2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    Built-in Controller :
    2 x USB 2.0 port(s) (2 at mid-board)
    ASMedia® ASM1042 controller :
    2 x USB 2.0 port(s) (2 at mid-board)
  • Special Features
    ASUS 5X Protection II :
    - ASUS LANGuard - 2.5X higher surge tolerance
    - ASUS Overvoltage Protection - World-class circuit-protecting power design
    - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
    - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
    - ASUS ESD Guards - Electrostatic discharge protection
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - PC Cleaner
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-DIMM
  • Operating System Support
    Windows® 10 , 64bit
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 1 (blue)
    1 x COM port(s)
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x TPM header
    1 x COM port(s) connector(s)
    2 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x parallel port connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Chassis Intrusion connector(s)
    1 x Clear CMOS jumper(s)
    1 x Panel off header
    1 x LVDS connector(s)
    1 x Buzzer
    1 x System panel connector
    1 x Display panel backlight power selector
    1 x Flat panel display brightness connector
    1 x Display panel VCC power selector
    1 x LCD panel monitor switch header
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, ErP ready*
  • Manageability
    WfM 2.0, DMI 2.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Form Factor
    Mini ITX Form Factor
    6.7 inch x 6.7 inch ( 17 cm x 17 cm )
  • Note
    *1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
Extra info
Extra info
EAN 4712900732931
Vendor ID 90MB0UP0-M0EAY0
Voorraad status End of life
Form Factor Micro-ATX
Socket Intel CPU on board
Type Geheugen DDR3
PCIe 3.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Geen SLI/Crossfire
Aantal sata poorten 2 poorten
M.2-Slot Nee
USB 3.0 4X USB 3.0
USB 3.1 Nee
10Gb LAN N/B
Bluetooth/Wifi Nee
PCIe 4.0 Nee
Thunderbolt Nee
