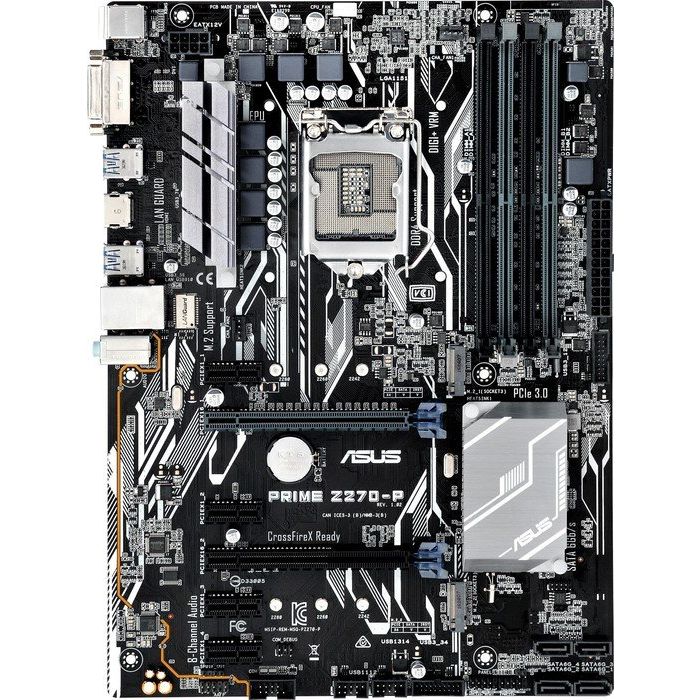

Asus Prime Z270-P

Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Raadpleeg www.asus.com voor lijst met ondersteunde CPU's

Intel® Z270

4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Ondersteunt Intel® Extreme Memory Profile (XMP)
* Raadpleeg www.asus.com voor lijst met ondersteunde CPU's
* De maximaal ondersteunde geheugenfrequentie verschilt per processor.

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Supports AMD CrossFireX™ Technology

1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1

2 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*1
4 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology*2
Intel® Optane™ Memory Ready *3

Realtek® RTL8111H

Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Intel® Z270 Chipset :
8 x USB 3.0 port(s) (4 at back panel, blue, Type-A, 4 at mid-board)
Intel® Z270 Chipset :
6 x USB 2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 7 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue) Type-A
2 x USB 2.0
1 x 8-channel Audio I/O

2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x SCD

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

WfM 2.0, DMI 3.0, WOL by PME, PXE

Windows® 10 64-bit
Windows® 8.1 64-bit *4
Windows® 7 32-bit *4
Windows® 7 64-bit *4

*1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
*2 These functions will work depending on the CPU installed.
*3 Intel® Optane Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*4 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
