Asus ROG Maximus X Code

Beschikbaarheid: End of life

€ 422,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Asus
My icon

Meer dan 17 jaar ervaring met high-end pc's !

My icon

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

My icon

Uw order altijd goed verpakt !

My icon

Niet alleen een online shop, maar ook een échte winkel ! Meer info...


Beschrijving
Details

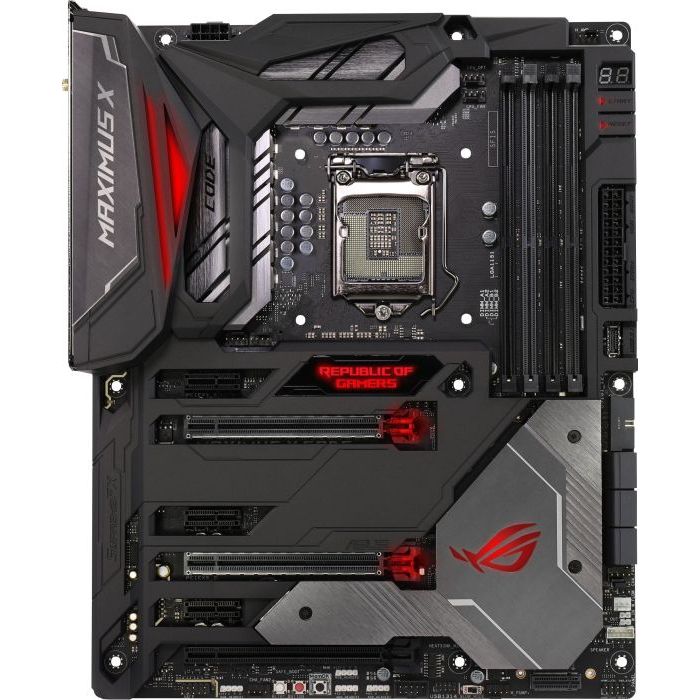

Intel Z370 ATX gaming motherboard with Aura Sync RGB LEDs, 802.11ac Wi-Fi, DDR4 4133MHz, dual M.2 and USB 3.1 Gen 2

  • LGA1151 socket for 8th Gen Intel® Core™ desktop processors.
  • Leading personalization: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips.
  • Onboard M.2 Heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.
  • Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action.
  • All the connectivity you need: Intel Gigabit Ethernet, LANGuard, 2x2 802.11ac Wi-Fi, Dual M.2, USB 3.1 Gen 2 Type-A and Type-C™ connectors.
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
  • Gaming durability: ROG Armor, pre-mounted I/O shield and premium components throughout.
  • CPU
    Intel® Socket 1151 for 8th Generation Core Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® Z370
  • Memory
    4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    Multi-VGA output support : HDMI/DisplayPort 1.2 ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 1024 MB
  • Multi-GPU Support
    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4)
    1 x PCIe 3.0/2.0 x16 (x4 mode, black) *1
    3 x PCIe 3.0/2.0 x1
  • Storage
    Intel® Z370 Chipset :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*3
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology*4
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I219V
    Anti-surge LANGuard
    ROG GameFirst IV
  • Wireless Data Network
    Wi-Fi 802.11 a/b/g/n/ac
    Supports dual band frequency 2.4/5 GHz
    Supports MU-MIMO
  • Bluetooth
    Bluetooth V4.2
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - ESS® ES9023P
    - Supports up to 32-Bit/192kHz playback *5
    Audio Feature :
    - Gold-plated jacks
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III
  • USB Ports
    ASMedia® USB 3.1 Gen 2 controller :
    1 x USB 3.1 Gen 2 front panel connector port(s)
    ASMedia® USB 3.1 Gen 2 controller :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, black+red, Type-A + USB Type-CTM)
    Intel® Z370 Chipset :
    6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® Z370 Chipset :
    6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)
  • ROG Exclusive Features
    Clear CMOS button
    ROG Armor
    ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Pre-mounted I/O Shield
    MemOK! Button
    Slow Mode
    Overwolf
    ReTry Button
    Safe Boot Button
    Start Button
    Reset Button
    LN2 Mode
    GameFirst IV
    Extreme Engine Digi+ :
    - MicroFine Alloy Chokes
    - NexFET™ Power Block MOSFET
    - 10K Black Metallic Capacitors
    KeyBot II
    - X.M.P.
    - ClrCMOS
    - Power On
    UEFI BIOS features :
    - O.C. Profile
    - Tweakers' Paradise
    - ROG SSD Secure Erase
    - Graphic Card Information Preview
    ROG RAMDisk
    Extreme Tweaker
    USB BIOS Flashback
  • Special Features
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
    - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
    Gamer's Guardian:
    - SafeSlot
    LiveDash OLED 1.3 ”
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    - Aura Addressable Strip Header(s)
    ASUS Exclusive Features :
    - MemOK!
    - AI Suite 3
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS USB BIOS Flashback
    ASUS Q-Design :
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
  • Back I/O Ports
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 3.1 Gen 2 (red)Type-A
    1 x USB 3.1 Gen 2 (black)USB Type-CTM
    4 x USB 3.1 Gen 1 (blue)
    4 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x Clear CMOS button(s)
    1 x USB BIOS Flashback Button(s)
    1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module
  • Internal I/O Ports
    2 x Aura Addressable Strip Header(s)
    2 x Aura RGB Strip Headers
    1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x H_AMP fan connector
    1 x W_PUMP+ connector (1 x 4 -pin)
    1 x AIO_PUMP connector (1 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Q-Connector)
    1 x MemOK! button(s)
    1 x Slow Mode switch(es)
    1 x Reset button(s)
    1 x LN2 Mode jumper(s)
    1 x Safe Boot button
    1 x ReTry button
    1 x EXT_Fan header
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x Thermal sensor connector
    1 x Start button
    1 x USB 3.1 Gen 2 front panel connector
  • Accessories
    User's manual
    1 x ROG logo plate sticker
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x CPU installation tool
    1 x Supporting DVD
    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x ROG big sticker
    1 x Q-Connector
    1 x M.2 bracket
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    1 x ROG coaster(s)
    1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable
  • BIOS
    1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1 The PCIe x4_3 slot shares bandwidth with PCIex1_3. The PCIe x4_3 is default set at x2 mode.

    *2 When the M.2_1 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.

    *3 When the M.2_2 Socket 3 is operating in PCIe 3.0 x4 mode, SATA ports 5 and 6 will be disabled.

    *4 This function will work depending on the CPU installed.

    *5 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio
Extra info
Extra info
EAN 4712900906332
Vendor ID 90MB0VX0-M0EAY0
Voorraad status End of life
Form Factor ATX
Socket Intel 1151-v2
Type Geheugen DDR4
PCIe 3.0 3 sloten
VGA onboard Ja, via processor
SLI / Crossfire SLI + Crossfire
Aantal sata poorten 6 poorten
M.2-Slot 2x
USB 3.0 4X USB 3.0
USB 3.1 2X USB 3.1
10Gb LAN N/B
Bluetooth/Wifi Ja
PCIe 4.0 Nee
Thunderbolt Nee
