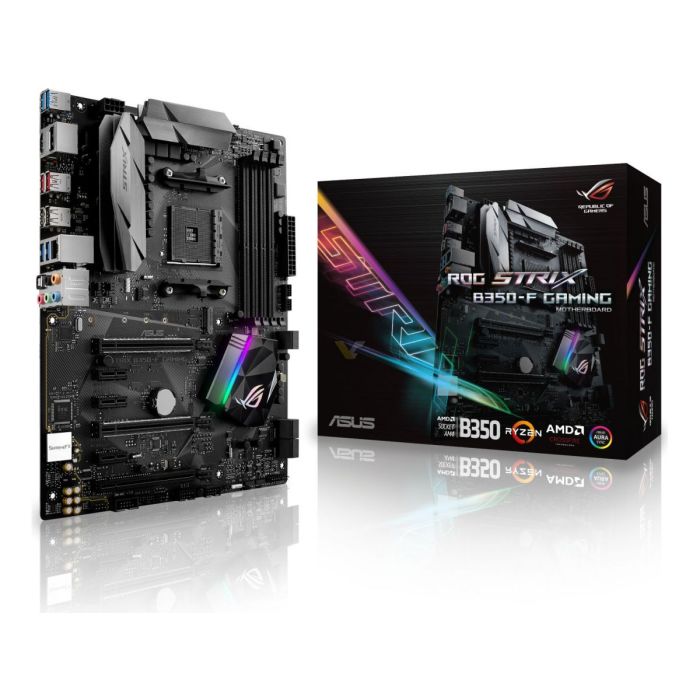

AMD AM4 B350 ATX gaming motherboard with Aura Sync RGB LED, DDR4 3200MHz, M.2, SATA 6Gbps and USB 3.1

  • The successor to Pro Gaming motherboards
  • Aura Sync RGB LED: Stunning synchronized effects and two Aura 4-pin RGB-strip headers
  • SupremeFX audio: Renowned audio performance with intuitive Sonic Studio III and Sonic Radar III
  • 5-Way Optimization: One-click system-wide overclocking
  • Gaming connectivity: M.2 and USB 3.1 Type-A connectors
  • Gaming networking: Intel® Gigabit Ethernet, LANGuard and GameFirst technologies
  • Gaming durability: ASUS SafeSlot and premium components for maximum durability
  • CPU
    AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
    Supports AM4 Socket 14 nm CPU
    Supports CPU up to 8 cores
    * Refer to for CPU support list
  • Chipset
    AMD B350
  • Memory
    AMD Ryzen™ Processors
    4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *
    AMD 7th Generation A-series/Athlon™ Processors
    4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU
    Multi-VGA output support : HDMI/DisplayPort ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
    Maximum shared memory of 2048 MB
  • Multi-GPU Support
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    AMD Ryzen™ Processors
    2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
    AMD 7th Generation A-series/Athlon™ Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD B350 chipset
    1 x PCIe 2.0 x16 (max at x4 mode) *1
    3 x PCIe 2.0 x1
  • Storage
    AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*5
    2 x SATA 6Gb/s port(s),
    AMD 7th Generation A-series/Athlon™ Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)*6
    AMD B350 chipset :
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Intel® I211-AT, 1 x Gigabit LAN Controller(s)
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual Headphone Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - Supports up to 32-Bit/192kHz playback
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III
  • USB Ports
    AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
    4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
    AMD B350 chipset :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
    AMD B350 chipset :
    2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    AMD B350 chipset :
    6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
  • ROG Exclusive Features
    ROG RAMCache II
    ROG CloneDrive
    GameFirst IV
  • Special Features
    5-Way Optimization by Dual Intelligent Processors 5
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    - Auto Tuning, TurboV, GPU Boost
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    - SafeSlot
    ASUS EPU :
    - EPU
    AURA :
    - Aura Lighting Control
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Gaming Aesthetics :
    - AURA-RGB Lighting
  • Back I/O Ports
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 2 Type-A
    4 x USB 3.1 Gen 1
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    2 x RGB Header(s)
    1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x TPM connector(s)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Thermal sensor connector(s)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
  • Accessories
    User's manual
    I/O Shield
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ROG Strix stickers
    1 x 10-in-1 ROG cable label
    1 x Cable ties pack(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x ROG coaster(s)
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0 ACPI 6.1, Multi-language BIOS,ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1 PCIEX16_3 Socket shares bandwidth witch PCIEX1_1 and PCIEX1_3
    *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
    *3 Due to AMD Ryzen™ Processor limitation, More than DDR4-2666 is supported by one DIMM per channel only
    *4 ROG GameFirst IV is only available for Windows® 10 64-bit.
    *5 When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports.
    *6 When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
Extra info
Extra info
EAN 4712900747126
Vendor ID 90MB0UJ0-M0EAY0
Voorraad status Nee
Form Factor ATX
Socket AMD AM4
Type Geheugen DDR4
PCI-E (16x en 8x ) 2 sloten
VGA onboard Ja, via processor
SLI / Crossfire Crossfire compatible
Aantal sata poorten 6 poorten
M.2-Slot 1x
USB 3.0 4X USB 3.0
USB 3.1 2X USB 3.1
Bluetooth/Wifi Nee
Firewire onboard Nee
Thunderbolt Nee
