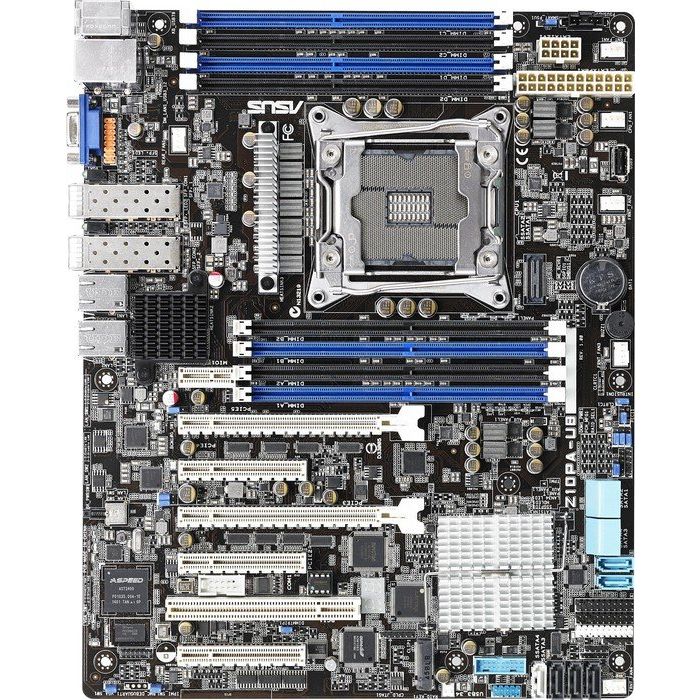

Asus Z10PA-U8

€329,00
End of life
SKU
sk214390
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

ATX Size Server Board with Fruitful Expansion Capability

Z10PA-U8 is an ATX size with EEB mounting hole locations server board which allows to fit into many ATX cases.Through innovative and top-notch engineering design, this board features server performance with compact design, enhanced storage expandability, premium components for premium efficiency. With support of the latest Intel® Xeon® processor E5-2600/1600 v3 product families, eight DIMM slots, and ten 6 Gb/s SATA ports, Z10PA-U8 is ideal for small and medium business, entry storage server, and workstation graphics applications.


  • Processor / System Bus
    1 x Socket R3 (LGA 2011-3; Square type 80x80mm;The maximum length of the heatsink screw thread is 3.7mm.)
    Intel® Xeon® processor E5-1600 v4 product family
    Intel® Xeon® processor E5-1600 v3 product family
    Intel® Xeon® processor E5-2600 v4 product family
    Intel® Xeon® processor E5-2600 v3 product family
  • Core Logic
    Intel® C612 PCH
  • Memory
    Total Slots : 8 (4-channel per CPU, 8 DIMM per CPU)
    Capacity : Maximum up to 512GB LRDIMM
    Memory Type :
    DDR4 2400 /2133 /1866/1600/1333 RDIMM*
    DDR4 2400 /2133 /1866/1600/1333 LRDIMM*
    Memory Size :
    32GB, 16GB, 8GB, 4GB RDIMM
    64GB, 32GB LRDIMM
    * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
  • Expansion Slots
    Total Slot : 6
    Slot Location 1 : PCI-E x8 (Gen2 X4 Link)
    Slot Location 2 : PCI 32bit/33MHz
    Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
    Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied
    Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
    Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied
    Slot Location 7 : MIO Slot for Audio card
  • Form Factor
    ATX (12"x9.6", 305mm x 244mm) *1
  • ASUS Features
    FAN speed control
    Rack Ready (Rack and Pedestal dual use)
    ASWM Enterprise
  • Storage
    SATA Controller :
    Intel® C612
    10 x SATA3 6Gb/s ports
    or
    9 x SATA3 6Gb/s ports + 1 x M.2 connector *2
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
    (Support Software RAID 0, 1, 5, 10 )
    LSI® MegaRAID (For Linux/Windows)
    (Support Software RAID 0, 1, 10 )
    SAS Controller :
    ASUS PIKE II 3008 8-port SAS HBA card(Optional)
    ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
  • Networking
    2 x Intel® I210AT + 1 x Mgmt LAN
  • Graphic
    Aspeed AST2400 with 32MB VRAM
  • On Board I/O
    1 x TPM header
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    1 x Management Connector , Onboard socket for optional management card
    1 x USB 3.0 pin header , Up to 2 Devices
    1 x USB 2.0 pin header , Up to 2 Devices
    6 x Fan Header , 4pin
    1 x SMBus
    1 x Chassis Intruder
    2 x Front LAN LED
    1 x Serial Port Header
    1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB
  • Back I/O Ports
    2 x USB 3.0
    2 x USB 2.0
    1 x VGA Port
    2 x GbE LAN
    1 x Mgmt LAN
    1 x PS/2 KB/Mouse
  • Management Solution
    ASWM Enterprise
    Optional ASMB8-iKVM for KVM-over-Internet
  • Environment
    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
  • Weight
    Gift Box (1-in-1)
    Net Weight : 1.281 KG
    Gross Weight : 1.7 KG

    Bulk Pack (10-in-1)
    Net Weight : 9.79 KG
    Gross Weight : 12 KG
  • Monitoring
    CPU Temperature
    Fan RPM
  • Note
    * Please refer to www.asus.com for latest momory AVL update

    *1 EEB Mounting Hole Locations

    *2 9 x SATA3 6Gb/s ports + 1 x M.2 connector(SATA 6Gb/s)
