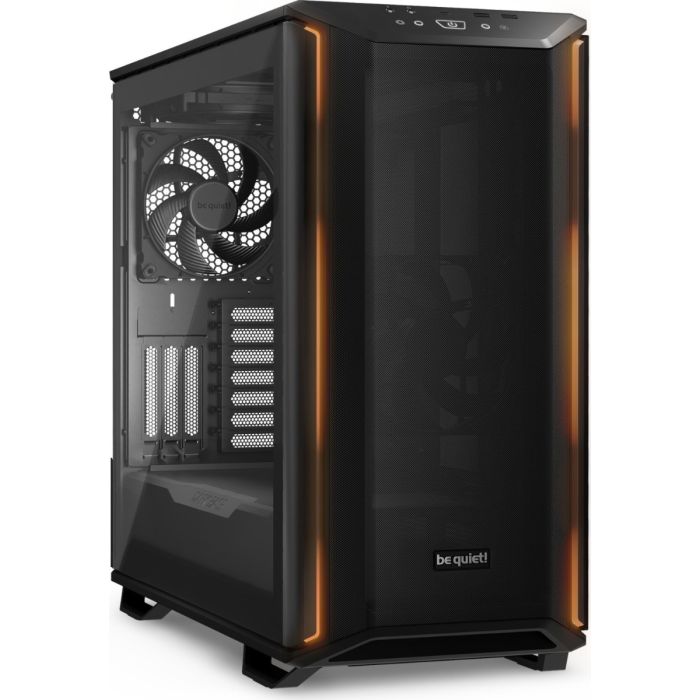

be quiet! Dark Base 701 Zwart

General data
Model    Dark Base 701 Black
Color option    Black
Motherboard compatibility    E-ATX (30.5 x 27.5cm), ATX, M-ATX, Mini-ITX
Case size excl. stands (L x W x H), (mm)    565 x 249 x 495
Case size incl. stands (L x W x H), (mm)    565 x 249 x 523
Volume (l)    69.64
PSU form factor    ATX PS/2
Weight (kg)    12.8
Expansion slots    7 + 3

Pre-installed fans
Fan at top    1x Silent Wings 4 140mm PWM high-speed
Fan at front    1x Silent Wings 4 140mm PWM high-speed
Fan at side    -
Fan at rear    1x Silent Wings 4 140mm PWM high-speed
Fan at bottom    -
Dimensions (L x W x H), (mm)    Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm)    1900
Airflow at 100% PWM / 12V (CFM / m3/h)    78.4 / 133.2
Air Pressure at 100% PWM / 12V (mm H2O)    2.36
Noise level at 100% PWM / 12V (dB(A))    29.3
Voltage range (V DC)    12
Input power (W)    4.8
Input current (A)    0.4
Connector    4-pin PWM
Lifespan (h / 25°C)    300,000
Fan controller    PWM and ARGB Hub
Maximum fan installation
Maximum fans    8
Top (mm)    3x 140 / 3x 120
Front (mm)    3x 140 / 3x 120
Side (mm)    -
Rear (mm)    1x 140 / 1x 120
Bottom (mm)    1x 140 / 1x 120
PSU shroud    -
Optional radiator installation
Top (mm)    120 / 140 / 240 / 280 / 360
Front (mm)    120 / 140 / 240 / 280 / 360
Side (mm)    -
Rear (mm)    120
Bottom (mm)    -
PSU compatibility
Maximum dimensions excl. bottom fan (mm)    250
Maximum dimensions incl. bottom fan (mm)    250
Graphics card
HDD cage (in height of graphics card) installed (mm)    430
HDD cage (in height of graphics card) removed (mm)    430
Maximum PCIe slots with vertical graphics card (pcs.)    3
Drive bay capacity
5.25 bays (pcs.)    -
3.5 slots (scope of delivery)    3
3.5 slots (max.)    5
2.5 slots (scope of delivery)    2
2.5 slots (max.)    3
Cooling
Max.construction height of CPU cooler unit (mm)    185
Airflow channel    Front / Top / Rear / Bottom
Lighting
LED illumination    ✓
LEDs (pcs.)    48
LED type    ARGB - 5V
LEDs synchronizable with controller/motherboard    ✓
I/O Panel
USB 3.2 Gen. 2 Type C    1
USB 3.2 Type A    2
USB 2.0    -
HD Audio I/O    Mic + Audio
Qi charger / Quick Charging Option    -
Insulation and damping
Top panel insulation mats    -
Front panel insulation mats    -
Side panel insulation mats    ✓
Anti-vibration decoupled HDD    ✓
Anti-vibration decoupled fan    ✓
Anti-vibration decoupled PSU    ✓
Anti-vibration decoupled motherboard-tray    ✓
Removeable dust filters
Top    -
Front    1
Side    -
Bottom    1
Material
Top cover    Steel
Front panel    Steel
Side panel    Glas
Side panel window    Tempered glass
Stands    ABS
Safety certification
Approvals    CE, UKCA
Environmental directives
RoHS    ✓
Reach    ✓
WEEE    ✓
Triman    ✓
Scope of delivery
Screw set (Drives/Motherboard)    ✓
Additional standoffs (pcs.)    1 (for E-ATX)
SSD bracket for PSU shroud    -
LED strips (pcs.)    -
Cable ties (pcs.)    9 (Velcro)
Screw box    -
VGA holder    -
VGA holder for inverted layout    -
Mesh Front Panel    ✓
ODD Bracket    -
Fan / Radiator bracket for multi mounting panel    -
Service
Warranty (Years)    3
International hotline / free of charge    ✓ / DE, FR
Logistics data and RRP
Article number    BGW58
EAN code    4260052190654
Dimensions, package (L x W x H), (mm)    594 x 343 x 670
Gross weight, package (kg)    15.5
