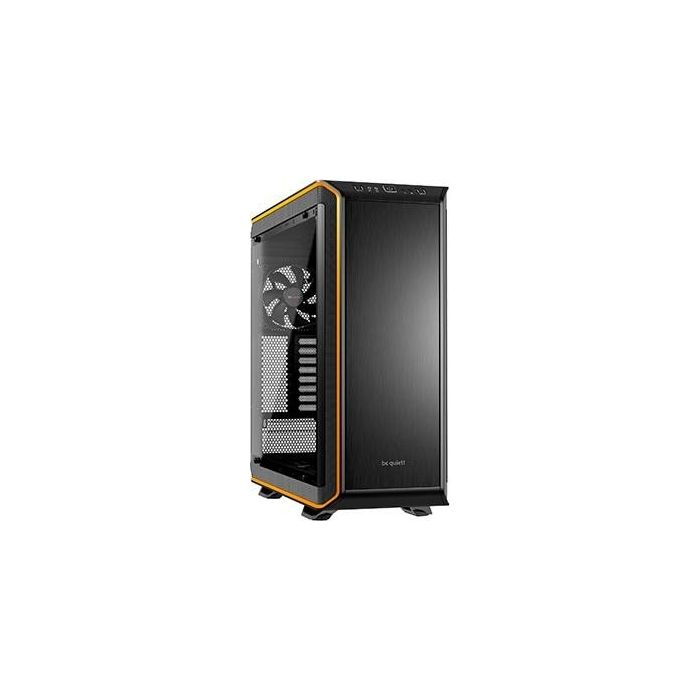

be quiet! Dark Base Pro 900 Oranje
€229,00
End of life
SKU
TQXV2023
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
Material
| Top cover | ABS, Aluminium |
| Side panel | Steel, ABS |
| Side panel window | 4mm Tempered Glass |
| Front panel | ABS, Aluminium |
| Stands | ABS |
Drive bay capacity
| 5.25 bays | 2 |
| 3.5 bays | 7 |
| 2.5 bays | 15 |
HDD cage specifications
| HDD cages total | 7 |
| Cage capacity (HDDs) | 1 |
| Removable HDD cage | 7 |
| Relocatable HDD cage | 7 |
Pre-installed fans
| Fan @ front | 2x be quiet! SilentWings® 3 |140mm PWM/ 1,000rpm |
| Fan @ rear | 1x be quiet! SilentWings® 3 |140mm PWM/ 1,000rpm |
| Dimensions (L x W x H), (mm) | Front: 140 x 140 x 25, Rear: 140 x 140 x 25 |
| Fan speed @ 12V (rpm) | 1,000 |
| Noise level @ 12V (dB(A)) | 15.5 |
| Air flow @ 12V (cfm / m3/h) | 59.5 / 101.09 |
| Air pressure @ 12V (mm H2O) | 1.08 |
| Voltage range (V DC) | 5 - 13.2 |
| Input power (W) | 3.6 |
| Input current (A) | 0.3 |
| Connector | 4-pin |
| Lifespan (h / 25°C) | 300,000 |
| Fan controller | Manual/PWM stepless fan controller (4x 4-pin, 4x 3-pin), PWM hub |
Optional fan installation
| Front (mm) | 1x 140 (w/o ODD cage) |
| Top (mm) | 3x 140 / 4x 120 / 1x 180 |
| Bottom (mm) | 2x 140/120 |
| Side panel (mm) | - |
| PSU shroud | - |
Optional radiator installation
| Front (mm) | 120 / 140 / 240 / 280 / 360 / 420 |
| Top (mm) | 120 / 140 / 180 / 240 / 280 / 360 / 420 |
| Bottom (mm) | 120 / 140 / 280 |
| Rear (mm) | 120 / 140 |
Cooling
| Max.construction height of CPU cooler unit (mm) | 185 |
| Airflow channel | Full circuit airflow system |
Lighting
| RGB LED illumination | internal |
| LEDs synchronizable with RGB controller/motherboard | - |
| Expandable RGB controller | - |
PSU compatibility
| Maximum dimensions excl. bottom fan (mm) | 284 |
| Maximum dimensions incl. bottom fan (mm) | 150 |
Graphics card
| HDD cage (in height of graphics card) installed (mm) | 323 |
| HDD cage (in height of graphics card) removed (mm) | 472 |
Insulation and damping
| Top panel insulation mats | - |
| Front panel insulation mats | ✓ |
| Side panel insulation mats | ✓ |
| Anti-vibration decoupled HDD | ✓ |
| Anti-vibration decoupled fan | ✓ |
| Anti-vibration decoupled PSU | ✓ |
| Anti-vibration decoupled motherboard-tray | ✓ |
Removeable dust filters
| Front | 1 |
| Bottom | 1 |
| Side panel | 1 |
Accessories
| Screw set (HDD/SSD/MB-mounting) | ✓ |
| Rubber rail (pcs.) | - |
| Standoff (pcs.) | 3 (for E-ATX) |
| LCS bracket (pcs). | 1 |
| Upper fan bracket (pcs.) | 1 |
| HDD panel rubber grommet (pcs.) | 1 |
| LED strips (pcs.) | 2 |
| Cable ties (pcs.) | 6 (Velcro) |
| Cable tie holder (pcs.) | - |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data, RRP
| Range | Dark Base Pro 900 |
| Article number | BGW10 |
| EAN code | 4260052184943 |
| Certifications | CE, RoHS, FCC |
| Dimensions, package (L x W x H), (mm) | 655 x 325 x 680 |
| EAN | 4260052184943 |
|---|---|
| Vendor ID | BGW10 |
| Voorraad status | End of life |
| Soort kast | Full tower |
| Materiaal | Aluminium / Staal |
| Aantal 3,5 inch intern | 7 bays |
| Aantal 2,5 inch intern | 15 bays |
| Aantal 5,25 inch extern | 2 bays |
| Venster in de zijkant | Ja |
| Front USB aansluiting | USB 2.0 / USB 3.0 |
| Form Factor | EATX |
| Inclusief voeding | Nee |
| Color | Zwart / Oranje |
