be quiet! Light Base 500 LX White
Vorige
be quiet! Light Base 500 Black
Op voorraad bij leverancier (2-5 werkdagen)

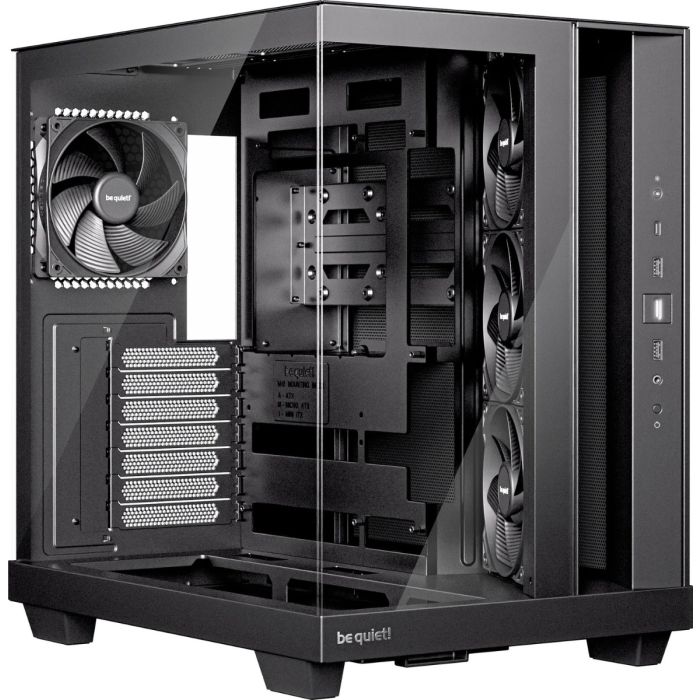

Light Base 500 stands for a clean design and the core values of gaming: performance, accessibility and functionality.
Angled slide-out fan frame on the side routes air directly to the GPU
Fans can be installed in the lowered fan bay to line up perfectly with the case floor
4 preinstalled Pure Wings 3 120mm PWM f ans for extraordinary airflow
Spacious design for radiators up to 360mm, an ATX motherboard, 2 HDDs and SSDs at the same time
2 possible PSU positions enable backside connector motherboards
Zero RGB for an unobtrusive and elegant appearance in any room
3-year manufacturer’s warranty
General data
Model LIGHT BASE 500 | Black
Color option Black
Motherboard compatibility ATX / M-ATX / Mini-ITX support BTF MB
Case size excl. stands (L x W x H), (mm) 432 x 305 x 410
Case size incl. stands (L x W x H), (mm) 432 x 305 x 436
Volume (l) 49,6L
PSU form factor ATX PS/2
Net weight (kg) 10,91
Expansion slots 7
Pre-installed fans
Fan at top -
Fan at front -
Fan at side 3x Pure Wings 3 Reverse 120mm PWM Black
Fan at rear 1x Pure Wings 3 120mm PWM Black
Fan at bottom -
Dimensions (L x W x H), (mm) 120 x 25 x 120
Fan speed at 100% PWM / 12V (rpm) 1600 | 1500
Airflow at 100% PWM / 12V (CFM / m3/h) 51.5 / 87.5
Air Pressure at 100% PWM / 12V (mm H2O) 1.34
Noise level at 100% PWM / 12V (dB(A)) 25.5
Voltage range (V DC) 5 - 13.2
Input power (W) 3.8
Input current (A) 0.32
Connector 4-pin PWM
Lifespan (h / 25°C) 60,000
Fan controller -
Maximum fan installation
Maximum fans 10
Top (mm) 2x 140 / 3x 120
Front (mm) -
Side (mm) 3x120
Rear (mm) 1x 120 / 1x 140
Bottom (mm) 3x 120
PSU shroud -
Optional radiator installation
Top (mm) 120 / 240 / 280 / 360
Front (mm) -
Side (mm) 120 / 240
Rear (mm) 120
Bottom (mm) -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) <200
Maximum dimensions incl. bottom fan (mm) <200
Graphics card
HDD cage (in height of graphics card) installed (mm) 400
HDD cage (in height of graphics card) removed (mm) 400
Maximum PCIe slots with vertical graphics card (pcs.) 4
Drive bay capacity
5.25 bays (pcs.) -
3.5 slots (scope of delivery) 2
3.5 slots (max.) 2
2.5 slots (scope of delivery) 2
2.5 slots (max.) 2
Cooling
Max.construction height of CPU cooler unit (mm) 185
Airflow channel -
Lighting
LED illumination -
LEDs (pcs.) -
LED type -
LEDs synchronizable with controller/motherboard -
I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option (W) -
Insulation and damping
Top panel insulation mats -
Front panel insulation mats -
Side panel insulation mats -
Anti-vibration decoupled HDD ✓
Anti-vibration decoupled fan ✓
Anti-vibration decoupled PSU ✓
Anti-vibration decoupled motherboard-tray -
Scope of delivery
Screw set (Drives/Motherboard) ✓
Additional standoffs (pcs.) 1
SSD bracket for PSU shroud -
LED strips (pcs.) -
Cable ties (pcs.) 5
Screw box -
VGA holder -
VGA holder for inverted layout ✓
Mesh Front Panel -
ODD Bracket -
Fan / Radiator bracket for multi mounting panel -
Removeable dust filters
Top -
Front -
Side 1
Bottom 1
Material
Top cover Steel
Front panel Glass
Side panel Glass
Side panel window Steel
Stands ABS
Safety certification
Approvals CE, UKCA
Environmental directives
RoHS ✓
Reach -
WEEE ✓
Triman ✓
Service
Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR
Logistics data and RRP
Article number BGW83
EAN code 4260052193808
Dimensions, package (L x W x H), (mm) 493 x 388 x 515
Gross weight, package (kg) 14.6
| EAN | 4260052193808 |
|---|---|
| Vendor ID | BGW83 |
| Soort kast | Midi tower |
| Materiaal | Staal / Glas |
| Aantal 3,5 inch intern | 2 bays |
| Aantal 2,5 inch intern | 2 bays |
| Aantal 5,25 inch extern | Nee |
| Venster in de zijkant | Ja |
| Front USB aansluiting | USB 3.0 / USB 3.1 |
| Form Factor | ATX |
| Inclusief voeding | Nee |
| Color | Zwart |
