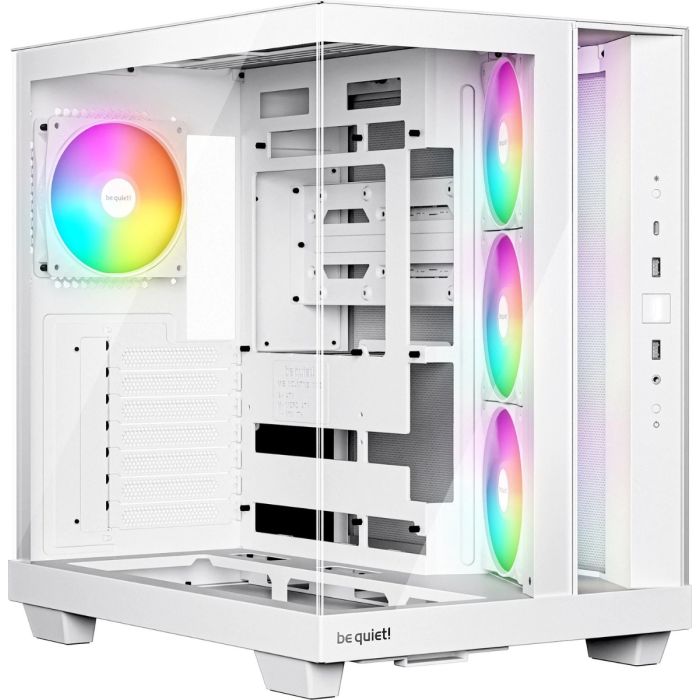

be quiet! Light Base 500 LX White

General data
Model    LIGHT BASE 500 LX | White
Color option    Black
Motherboard compatibility    ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm)    432 x 305 x 410
Case size incl. stands (L x W x H), (mm)    432 x 305 x 436
Volume (l)    49,6
PSU form factor    ATX PS/2
Net weight (kg)    10,95
Expansion slots    7

Pre-installed fans
Fan at top    -
Fan at front    -
Fan at side    3x Light Wings LX Reverse 120mm PWM White
Fan at rear    1x Light Wings LX 120mm PWM White
Fan at bottom    -
Dimensions (L x W x H), (mm)    120 x 120 x 25
Fan speed at 100% PWM / 12V (rpm)    1600 | 1500
Airflow at 100% PWM / 12V (CFM / m3/h)    51.5 / 87.5
Air Pressure at 100% PWM / 12V (mm H2O)    1.34
Noise level at 100% PWM / 12V (dB(A))    25.5
Voltage range (V DC)    5 - 13.2
Input power (W)    3.8
Input current (A)    0.32
Connector    4-pin PWM
Lifespan (h / 25°C)    60,000
Fan controller    2x 12 Ports
Maximum fan installation
Maximum fans    10
Top (mm)    2x 140 / 3x 120
Front (mm)    -
Side (mm)    3x120
Rear (mm)    1x 120 / 1x 140
Bottom (mm)    3x 120
PSU shroud    -
Optional radiator installation
Top (mm)    120 / 240 / 280 / 360
Front (mm)    -
Side (mm)    120 / 240
Rear (mm)    120
Bottom (mm)    -
PSU compatibility
Maximum dimensions excl. bottom fan (mm)    <200
Maximum dimensions incl. bottom fan (mm)    <200
Graphics card
HDD cage (in height of graphics card) installed (mm)    400
HDD cage (in height of graphics card) removed (mm)    400
Maximum PCIe slots with vertical graphics card (pcs.)    4
Drive bay capacity
5.25 bays (pcs.)    -
3.5 slots (scope of delivery)    1
3.5 slots (max.)    1
2.5 slots (scope of delivery)    2
2.5 slots (max.)    2
Cooling
Max.construction height of CPU cooler unit (mm)    185
Airflow channel    -
Lighting
LED illumination    ✓
LEDs (pcs.)    -
LED type    -
LEDs synchronizable with controller/motherboard    ✓
I/O Panel
USB 3.2 Gen. 2 Type C    1
USB 3.2 Type A    2
USB 2.0    -
HD Audio I/O    Mic + Audio
Qi charger / Quick Charging Option (W)    -
Insulation and damping
Top panel insulation mats    -
Front panel insulation mats    -
Side panel insulation mats    -
Anti-vibration decoupled HDD    ✓
Anti-vibration decoupled fan    ✓
Anti-vibration decoupled PSU    ✓
Anti-vibration decoupled motherboard-tray    -
Scope of delivery
Screw set (Drives/Motherboard)    ✓
Additional standoffs (pcs.)    1
SSD bracket for PSU shroud    -
LED strips (pcs.)    -
Cable ties (pcs.)    5
Screw box    -
VGA holder    -
VGA holder for inverted layout    ✓
Mesh Front Panel    -
ODD Bracket    -
Fan / Radiator bracket for multi mounting panel    -
Removeable dust filters
Top    -
Front    -
Side    1
Bottom    1
Material
Top cover    Steel
Front panel    Glass
Side panel    Glass
Side panel window    Steel
Stands    ABS
Safety certification
Approvals    CE / RoHS
Environmental directives
RoHS    ✓
Reach    -
WEEE    ✓
Triman    ✓
Service
Warranty (Years)    3
International hotline / free of charge    ✓ / DE, FR
Logistics data and RRP
Article number    BGW86
EAN code    4260052193891
