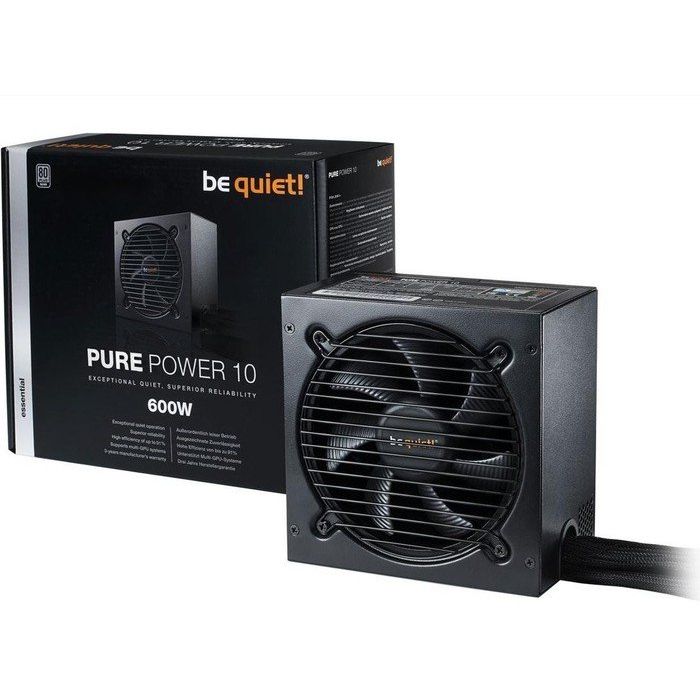

Be quiet! Pure Power 10 600W

€ 79,00
End of life
SKU
219384
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

The Pure Power 10 PSU series stands for peerless dependability and best-in-class features. Whether you are assembling a very quiet system, upgrading an existing PC, building a multimedia or a multi-GPU gaming system, your build will benefit from this PSU series. It simply has the best combination of features, performance and quality at very popular price.

  • 600 Watts of continuous power and two 12V-rails ensure rock-solid voltage stability for powerful multi-GPU systems
  • 80PLUS® Silver certification and up to 91% power conversion efficiency
  • Exceptionally quiet operation is achieved by an array of careful enhancements, including the use of a silence-optimized 120mm be quiet! fan
  • Stable operation thanks to DC-to-DC power conversion technology
  • Attractively sleeved cables simplify component installation, increase airflow and improve cooling
  • Product conception, design and quality control in Germany

General

Model
PURE POWER 10 | 600W

General Data

Continuous power (W)
600
Peak power (W)
650
Form factor ATX 12V
Version 2.4
Form factor EPS 12V
Version 2.92
Modular cable management
-
Topology
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
8 / 5
PFC
active
Power factor at 100% load
>0.99
Compliant to Intel C6/C7
✓
Compliant to Intel C6 mode
✓
Power consumption in standby (W)
0.11
Average life time (h / 25°C)
100.000
Operating temperature up to (°C)
40

Output

12V rails (multi-rail operation)
2
12V single rail operation
-
Overclocking key
-
+3.3V (A)
25
+5V (A)
18
+12V1 (A)
32
+12V2 (A)
28
+12V3 (A)
-
+12V4 (A)
-
+12V5 (A)
-
+12V6 (A)
-
-12V (A)
0.3
+5Vsb (A)
3
Max. combined power 12V (W)
576
Max. combined power 3.3V + 5V (W)
140
Hold-up time (ms @ 100%)
34

Fan / Cooling technology

Fan type
exclusive be quiet! fan
Motor technology
Bearing technology
Rifle
Fan size (mm)
120
Max. fan speed (rpm), temperature-dependent
1,280
Temperature control for case fans
-
dB(A) at 20% load
11.2
dB(A) at 50% load
12.5
dB(A) at 100% load
23.6

Protection

OCP (over current protection)
✓
OVP (over voltage protection)
✓
UVP (under voltage protection)
✓
SCP (short circuit protection)
✓
OTP (over temperature protection)
✓
OPP (over power protection)
✓

Safety certification

✓
✓
✓
Nemko (N)
-
Semko (S)
-
Fimko (FI)
-
Demko (D)
-
FCC
✓
cRUus
-
cTUVus
✓
RCM (Australia)
✓
BSMI
✓
CU (Russia)
✓

Eco / Efficiency

80PLUS certification
Silver
Efficiency (%) at 230V, 20% load
90.1
Efficiency (%) at 230V, 50% load
91.7
Efficiency (%) at 230V, 100% load
90.6

Environmental directives

ENERGY STAR
6.0
✓
✓
RoHS
✓

Cablemanagement / Connectors

Modular cable management
-
Sleeved cables
✓
Flat Cables
-
Cable length to mainboard (cm)
55
Cable length to first connector (cm)
55
Maximum cable length (cm)
95
All-in-one cable (SATA/PATA/FDD)
✓
No. of cables
7
ATX-Mainboard (20+4 pin)
1
P8 (CPU)
-
P4+4 (CPU)
1
P4 (CPU)
-
PCI-E 6 pin (GPU)
-
PCI-E 6+2 pin (GPU)
4
PATA 4 pin
3
SATA 15-pin (HDD, Drives)
6
FDD (Floppy)
1
Mainboard Connector (PATA 4 pin)
3
External fan connectors
-

GPU compatibility

Multi-GPU ready
✓

Casing

Dimensions without cable (L x W x D), (mm)
150 x 150 x 86
Weight incl. fixed cables (kg)
2.07
Color
black

Accessories

Thumb screws
-
Screws
✓
Velcro cable ties
-
Cable ties
✓
AC power cord (mm)
1.500
Box/Bag for PSU/Cables
-
User manual languages
EN, DE, FR, PL, ES, RU
OCK slot bracket with switch / OCK Jumper
-

Service

Warranty (Years)
3
Express replacement service in first year
-
International hotline / free of charge
✓ / DE, FR

Logistics Data, RRP

Range
Pure Power
Article number
BN274
EAN code
4260052185339
Dimensions, package (L x W x H), (mm)
260 x 202 x 98
Gross weight, package (kg)
2.65
Meer informatie
EAN 4260052185339
Vendor ID BN274
Voorraad status End of life
Energie Certificering 80 Plus Silver
Modulair Nee
Wattage 600W - 700W
Aantal ATX 12V 1 x 8 (2x4) polig
Aantal PCI-E 4 x 6+2-polig
Sata connectors 6 X Sata
Molex 4-pin 3 x molex
