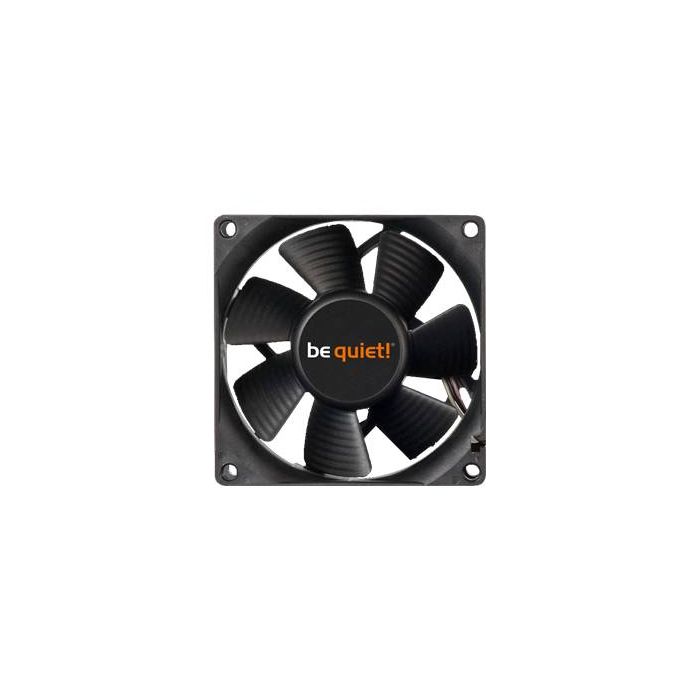

be quiet! Shadow Wings SW1 80mm Low-Speed
€11,00
End of life
SKU
TL6V35
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
- Low-noise operation due to high-quality rifle bearing. The parallel arrangement of recesses on the outer side of the bearing shaft ensure uniform circulation of the high-quality oil and make the fan very quiet. Mechanical noise is minimized by antivibration fasteners and the rubberized fan frame. The high-quality IC motor controller reduces electrical noise sources.
Very quiet operation
- Reliable cooling for up to 200,000 hours thanks to the high-quality rifle bearing.
Long service life
- The flow-optimized surface structure of the fan blades produce more air flow in combination with smooth running.
High air flow
- Screwless installation makes handling simple.
Simple assembly
- 3 year manufacturer guarantee.
Service
General
Model
SHADOW WINGS SW1 80mm 1400rpm
General Specs
Dimensions (L x W x D), (mm)
80 x 80 x 25
-
Fan speed @ 12V (rpm)
1400
Air flow @ 12V (cfm, m3/h)
14.8 / 23.8
Air pressure @ 12V (mm H2O)
0.97
Noise level @ 12V (dB(A))
8.4
Mechanical spec
Dimensions (L x W x D), (mm)
80 x 80 x 25
Bearing type
Rifle
Weight incl. fixed cables (kg)
0.15
Push pin fixing
✓
Screw fixing
-
Cables & Connectors
Connector
3 pin
Cable length (mm)
450
Cable sleeve
-
Performance & Noise
Fan speed @ 12V (rpm)
1400
Air flow @ 12V (cfm, m3/h)
14.8 / 23.8
Air pressure @ 12V (mm H2O)
0.97
Noise level @ 12V (dB(A))
8.4
Lifespan (h / 25°C)
200.000
Electrical specs
Rated voltage DC (V)
12
Starting voltage DC (V)
5
Operating voltage DC (V)
5 ~ 12
Current consumption (A)
0.07
Safety current (A)
0.12
Input power (W)
1.44
Accessories
3pin to 4pin Y-connector
-
12V to 7V adapter
✓
12V to 5V adapter
-
Screws
-
Push pins
5
Silica gel washer
5
Others
-
Service
Warranty (Years)
3
International hotline / free of charge
✓ / DE, FR
Logistics data, RRP
Range
SHADOW WINGS
Article number
BL050
EAN Code
4260052182680
| EAN | 4260052182680 |
|---|---|
| Vendor ID | BL050 |
| Voorraad status | End of life |
| Verlichting | Geen |
| Afmeting | 80 mm |
| CFM ( Airflow ) | < 30 CFM |
| Fan Decibel MAX | < 20 dB |
| Toeren/minuut | 1200 - 1400 rpm |
| Fan controller | Nee |
