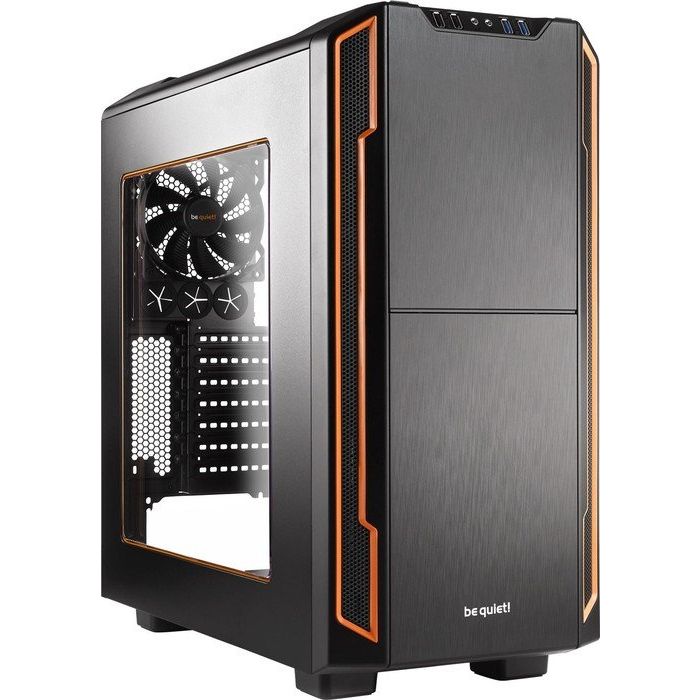

Be quiet! Silent Base 600 Orange (window)

€141,00
End of life
SKU
178724
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Feature Details

Very Silent Operation

  • The innovative construction of the front, side and top covers optimize case airflow for perfect air circulation, reducing turbulence and generating superior cooling at lower fan speeds for exceedingly quiet operation
  • Sound insulation material on the side panel and the front also reduces vibrations and provides even more stability
  • The side panel with an innovative double-glazed window and a cavity of 9mm between the panes of the window provides superb sound insulation
  • Two pre-installed Pure Wings 2 fans (one Pure Wings 2 140mm in the front, one Pure Wings 2 120mm at the rear) include an array of optimizations for quiet airflow
    • unique airflow-optimized fan blade design reduces noise-generating fan turbulence
    • high-quality sleeved bearing
    • switching, noise-cancelling circuitry
    • fans are decoupled from the case with special mounts, reducing transmission of vibration and noise
  • Hard drive cage features unique, specially designed silicone rubber anti-vibration rails that fully decouple drives to eliminate any transmission of vibration to the case



Perfect Cooling

  • The upper cover air ducts are designed to channel cooling airflow. The rear opening allows air to exit the chassis while reducing the noise passing through the front panel
  • Adjustable side panel vent allows the user to fine tune airflow
  • Additional fan mounting of up to four fans at the top, bottom and front
  • Convenient 3-step fan controller for up to three 3-pin fans
  • Water cooling ready for high-performance systems. Three areas are provided for radiators: below the top cover, in the HDD section and in the rear of the case
  • Organized cable routing assures a better look, but more importantly it also provides for efficient airflow, better cooling, and therefore quieter operation



Engineering

  • The unique, specially designed front panel intake system allows cool air to enter the case while greatly eliminating almost all of the noise that is allowed back out
  • The top cover allows hot air to exit the case while greatly reducing the noise experience
  • The chassis is fitted with a side panel that offers more internal space, allowing use of high-end hardware and cooler such as the Dark Rock series
  • The U-shaped edges on the side panels reduce vibration and improve case stability
  • The side panel vent can be closed for silent operation, open or partially open in different amounts for increased air intake
  • The side panel window is made from scratch and impact resisting material and offers superb sound insulation due to the double-glazing of the window
  • The drive cage can be re-arranged to fit different hardware setups
  • All relevant openings are protected with removable, cleanable filters to keep your system clean of heat-trapping dust



Excellent Usability

  • Generous space and flexibility supports all manner of high-end hardware
  • Thoughtful design supports professional cable management:
    • innovative side panel design provides more space for cable management behind the M/B tray
    • silicone rubber grommets on the M/B tray hold cables from shifting
  • Motherboard tray is provided with large, convenient cut-outs for CPU cooler back plates that will ensure compatibility with current and future CPU sockets
  • Tool-less drive mounting allows drive configuration and reconfiguration in minutes
    • tool-less mounting system for 5.25” drives like ODD, fan controllers etc.
    • the silicone rubber rails allow fast and secure tool-less 3.5” HDD mounts
    • the case can fit three 2.5” SSD
    • one mounting bay in the 3.5” HDD cage
    • two additional mounting bays behind the M/B tray
  • Easy to remove dust filters are user-friendly and easy to clean



Outstanding Service and Support

  • 3-years manufacturer's warranty

General

Model
Silent Base 600 | Window Orange

General Data

Form Factor
Motherboard compatibility
ATX, Micro-ATX, Mini-ITX
Case size excl. stands (L x W x H), (mm)
-
Case size incl. stands (L x W x H), (mm)
495 x 230 x 493
Dimensions side panel window (L x W), (mm)
325 x 325
Color option
Orange
Weight (kg)
8.05
USB 2.0
2
USB 3.0
2
HD Audio I/O
1
Expansion slots
7
Fan mounting locations
6

Material

Covers
ABS Plastic
Side panel
0.7mm Steel
Double-glazed window
Polycarbonate
Front panel
ABS Plastic
Stands
ABS Plastic, Rubber

Drive Bay Capacity

5.25
3
3.5
3
2.5
3

HDD Cage Specifications

HDD cages total
1
Removable HDD cage
1
Relocatable HDD cage
1

Pre-installed Fans

Fan @ front
1 x be quiet! Pure Wing 2 |140mm 900rpm
Fan @ rear
1 x be quiet! Pure Wings 2 | 120mm 1,200rpm
Dimensions (L x W x H), (mm)
Front: 140 x 140 x 25, Rear: 120 x 120 x 25
Fan speed @ 12V (rpm)
Front: 900, Rear: 1,200
Noise level @ 12V (dB(A))
Front: 17.1, Rear: 16.8
Air flow @ 12V (cfm / m3/h)
Front: 55.8, Rear: 41.7
Air pressure @ 12V (mm H2O)
Front: 0.6, Rear: 0.9
Voltage range (V DC)
5–12
Input power (W)
Front: 1.08, Rear: 1.04
Input current (A)
0.09
Connector
3-pin
Lifespan (h / 25°C)
up to 80,000
3-step fan controller

Optional Fan Installation

Front (mm)
1x 140
Top (mm)
2x 140/ 120
Bottom (mm)
1x 140/ 120
Side panel (mm)
-

Cooling

Optional water cooling system (radiator in mm)
Front: 120/140, Rear: 120, Top: 120/140/240
Max.construction height of CPU cooler unit (mm)
up to 170
Airflow channel
Top

PSU Compatibility

Maximum dimensions excl. bottom fan (mm)
290
Maximum dimensions incl. bottom fan (mm)
160

Graphics Card

Upper HDD cage installed (mm)
294
Without upper HDD cage (mm)
413

Insulation and Damping

Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU

Removable Dust Filters

Front
1
Bottom
1
Side panel
1

Accessories

#6-32 Round head screws (pcs.)
8
M3 HDD screws (pcs.)
12
M3 x 8 Flat head screws (pcs.)
12
#6-32 x 5 Flat head screws (pcs.)
4
M3 x 5 Round head screws (pcs.)
6
#6-32 Hex head screws (pcs.)
4
#6-32 x30 Flat head screws (pcs.)
4
Rubber rail (pcs.)
6
Standoff (pcs.)
2
Cable tie long (pcs.)
2
Cable tie short (pcs.)
2
Cable tie holder (pcs.)
1

Service

Warranty (Years)
3
