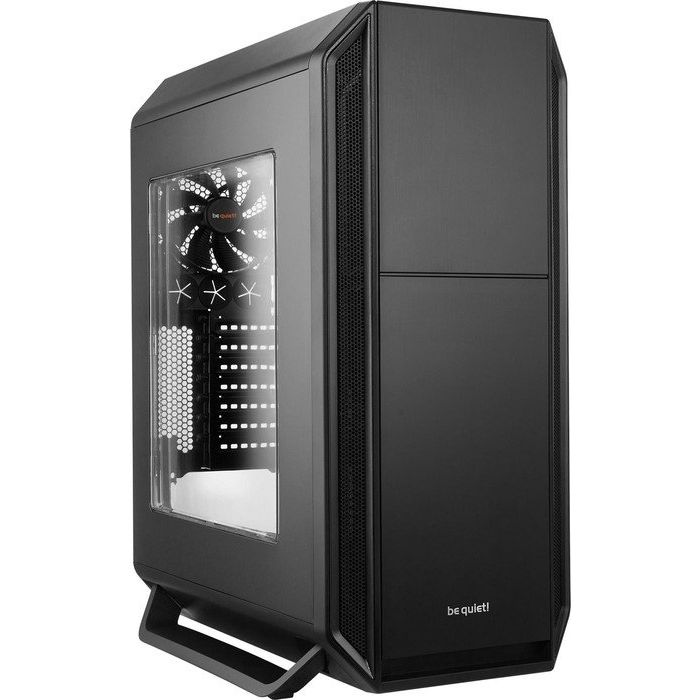

be quiet! Silent Base 800 Black (window)

Beschikbaarheid: End of life

€ 137,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

be quiet!
My icon

Meer dan 17 jaar ervaring met high-end pc's !

My icon

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

My icon

Uw order altijd goed verpakt !

My icon

Niet alleen een online shop, maar ook een échte winkel ! Meer info...


Beschrijving
Details

Very Silent Operation

  • The innovative construction of the side, bottom and top covers optimizes case airflow for perfect air circulation, reducing turbulence and generating superior cooling at lower fan speeds for exceedingly quiet operation
  • Sound insulation material on the side panel and the front also reduces vibrations and provides even more stability
  • The side panel with an innovative double-glazed window and a cavity of 9mm between the panes of the window provides superb sound insulation
  • Three pre-installed Pure Wings 2 fans ( two Pure Wings 2 140mm in the front, and one Pure Wings 2 120mm at the rear) include an array of optimizations for quiet airflow
    • unique airflow-optimized fan blade design reduces noise-generating fan turbulence
    • high-quality sleeved bearing
    • switching, noise-cancelling circuitry
    • fans are decoupled from the case with special mounts, reducing transmission of vibration and noise
  • Hard drive cages feature unique, specially designed silicone rubber anti-vibration rails that fully decouple drives so as to eliminate any transmission of vibration to the case



Perfect Cooling

  • The upper and lower cover air ducts are designed both to channel cooling airflow. The rear opening allows air to enter the chassis while reducing the noise passing through the front panel
  • Adjustable side panel vent allows the user to fine tune airflow
  • Additional fan mounting of up to three fans at the top and the bottom
  • Water cooling ready for high-performance systems. Three areas are provided for radiators: below the top cover, in the HDD section, and in the rear of the case
  • Organized cable routing assures a better look, but more importantly it also provides for efficient airflow, better cooling, and therefore quieter operation



Engineering

  • The unique, specially designed front panel intake system allows cool air to enter the case while greatly eliminating almost all of the noise that is allowed back out
  • The top and bottom covers channel cooling air into the case and allow hot air to exit the top while greatly reducing the noise that is allowed to escape the case
  • The chassis is fitted with a side panel that offers more internal space, allowing use of high-end hardware and cooler such as the Dark Rock series
  • The U-shaped edges on the side panels reduce vibration and improve case stability
  • The side panel vent can be closed for silent operation, open or partially open in different amounts for increased air intake
  • The side panel window is made from scratch and impact resisting material and offers superb sound insulation due to the double-glazing of the window
  • The drive cages can be re-arranged to fit different hardware setups
  • All relevant openings are protected with removable, cleanable filters to keep your system clean of heat-trapping dust



Excellent Usability

  • Generous space and flexibility supports all manner of high-end hardware
  • Thoughtful design supports professional cable management:
    • innovative side panel design provides more space for cable management behind the M/B tray
    • silicone rubber grommets on the M/B tray hold cables from shifting
  • Motherboard tray is provided with large, convenient cut-outs for CPU cooler back plates that will ensure compatibility with current and future CPU sockets
  • Tool-less drive mounting allows drive configuration and reconfiguration in minutes
    • tool-less mounting system for 5.25” drives like ODD, fan controllers etc.
    • the silicone rubber rails allow fast and secure tool-less 3.5” HDD mounts
    • the case can fit four 2.5” SSD
    • one mounting bay is in each 3.5” HDD cage
    • two additional mounting bays behind the M/B tray
  • Easy to remove dust filters are user-friendly and easy to clean



Outstanding Service and Support

  • 3-year manufacturer's warranty

General

Model
Silent Base 800 | Window Black

General Data

Form Factor
Motherboard compatibility
ATX, Micro-ATX, Mini-ITX
Case size excl. stands (L x W x H), (mm)
495 x 230 x 542
Case size incl. stands (L x W x H), (mm)
495 x 266 x 559
Dimensions side panel window (L x W), (mm)
460 x 438 x 22 / 325 x 325
Color option
Black
Weight (kg)
9.31
USB 2.0
2
USB 3.0
2
HD Audio I/O
1
Expansion slots
7
Fan mounting locations
6

Material

Covers
ABS Plastic
Side panel
0,7mm Steel
Double-glazed window
Polycarbonate
Front panel
ABS Plastic
Stands
Nylon, Fiber, Rubber

Drive Bay Capacity

5.25
3
3.5
7
2.5
4

HDD Cage Specifications

HDD cages total
2
Removable HDD cage
2
Relocatable HDD cage
1

Pre-installed Fans

Fan @ front
2 x be quiet! Pure Wing 2 |140mm 1,000rpm
Fan @ rear
1 x be quiet! Pure Wings 2 | 120mm 1,500rpm
Dimensions (L x W x H), (mm)
Front: 140 x 140 x 25, Rear: 120 x 120 x 25
Fan speed @ 12V (rpm)
Front: 1,000, Rear: 1,500
Noise level @ 12V (dB(A))
Front: 18.8, Rear: 19.2
Air flow @ 12V (cfm / m3/h)
Front: 61.2, Rear: 51.4
Air pressure @ 12V (mm H2O)
Front: 0.76, Rear: 1.25
Voltage range (V DC)
5–12
Input power (W)
Front: 1.08, Rear: 1.04
Input current (A)
0.09
Connector
3-pin
Lifespan (h / 25°C)
up to 80,000
3-step fan controller
-

Optional Fan Installation

Front (mm)
-
Top (mm)
2 x 140/120
Bottom (mm)
1 x 140/120
Side panel (mm)
-

Cooling

Optional water cooling system (radiator in mm)
Front: 120/140, Rear: 120, Top: 120/140/240/280
Max.construction height of CPU cooler unit (mm)
up to 167
Airflow channel
Top, Bottom

PSU Compatibility

Maximum dimensions excl. bottom fan (mm)
290
Maximum dimensions incl. bottom fan (mm)
160

Graphics Card

Upper HDD cage installed (mm)
290
Without upper HDD cage (mm)
400

Insulation and Damping

Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU

Removable Dust Filters

Front
1
Bottom
1
Side panel
1

Accessories

#6-32 Round head screws (pcs.)
8
M3 HDD screws (pcs.)
28
M3 x 8 Flat head screws (pcs.)
16
#6-32 x 5 Flat head screws (pcs.)
4
M3 x 5 Round head screws (pcs.)
6
#6-32 Hex head screws (pcs.)
4
#6-32 x30 Flat head screws (pcs.)
-
Rubber rail (pcs.)
14
Standoff (pcs.)
2
Cable tie long (pcs.)
2
Cable tie short (pcs.)
2
Cable tie holder (pcs.)
1

Service

Warranty (Years)
3
Extra info
Extra info
EAN 4260052184325
Vendor ID BGW02
Voorraad status End of life
Soort kast Midi tower
Materiaal Staal / Plastic
Aantal 3,5 inch intern 7 bays
Aantal 2,5 inch intern 4 bays
Aantal 5,25 inch extern 3 bays
Venster in de zijkant Ja
Front USB aansluiting USB 2.0 / USB 3.0
Form Factor ATX
Inclusief voeding Nee
Kleur Zwart
