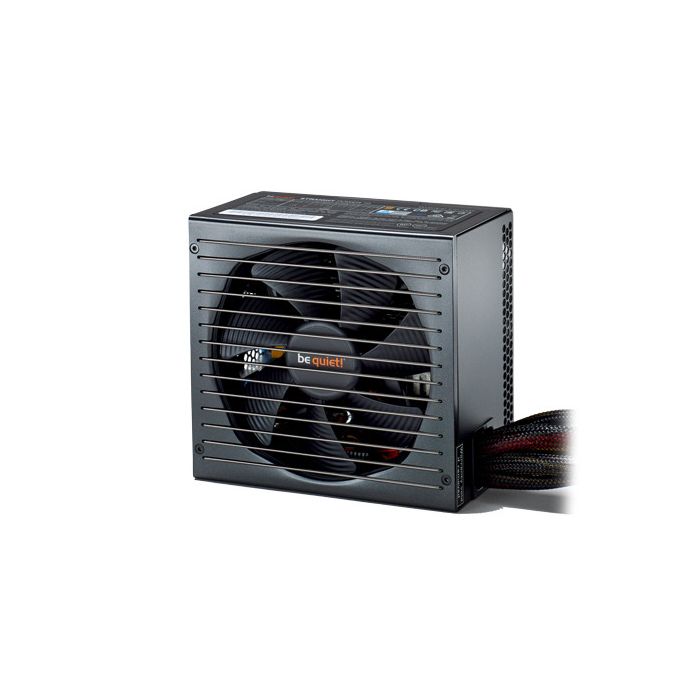

be quiet! Straight Power 10 500W

€88,00
End of life
SKU
TN5V2E01
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

General

Model

General data

Continuous power (W)
500
Peak power (W)
550
Form factor ATX 12V
Version 2.4
Form factor EPS 12V
Version 2.92
Modular cable management
-
Special technology
Active Clamp + SR + DC/DC
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
8 / 4
PFC
active
Power factor at 100% load
>0.97
Compliant to Intel Haswell C6/C7
Compliant to Intel C6 mode
Power consumption in standby (W)
<0.25
Average life time (h / 25°C)
100.000
Operating temperature up to (°C)
40

Output

12 V Rails (Multi-Rail operation)
4
12 V Single Rail operation
-
Overclocking key
-
+3.3V (A)
24
+5V (A)
24
+12V1 (A)
18
+12V2 (A)
18
+12V3 (A)
18
+12V4 (A)
18
+12V5 (A)
-
+12V6 (A)
-
-12V (A)
0.3
+5Vsb (A)
3
Max. combined power 12V (W)
480
Max. combined power 3,3V + 5V (W)
130
Hold-up time (ms)
17

Fan / Cooling technology

Fan type
be quiet! SilentWings
Motor technology
Bearing technology
Fan size (mm)
135
Max. fan speed (rpm), temperature-dependent
1,200
Control of case fans
-
Temperature control for case fans
-
Noise level data:
-
dB(A) at 20% load
10.2
dB(A) at 50% load
10.9
dB(A) at 100% load
15.5

Protection

OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)

Safety certification

Nemko (N)
-
Semko (S)
-
Fimko (FI)
-
Demko (D)
-
FCC
cRUus
cTUVus
c-tick
-
BSMI

Eco / Efficiency

80PLUS certification
Gold
Efficiency (%) at 230V, 20% load
87
Efficiency (%) at 230V, 50% load
90
Efficiency (%) at 230V,100% load
87

Environmental directives

ENERGY STAR
6.0
RoHS

Cablemanagement / Connectors

Modular cable management
-
Sleeved cables
Cable length to mainboard (cm)
60
Cable length to first connector (cm)
55
Maximum cable length (cm)
115
All-in-one cable (SATA/IDE/FDD)
No. of cables
7
ATX-Mainboard (20+4 pin)
1
P8 (CPU)
-
P4+4 (CPU)
1
P4 (CPU)
-
PCI-E 6 pin (GPU)
-
PCI-E 6+2 pin (GPU)
2
IDE 4-pin (HDD, Drives)
3
SATA 5-pin (HDD, Drives)
9
FDD (Floppy)
1
Mainboard Connector (like 4 pin drive connector)
-
External fan connectors
-

GPU compatibility

Multi-GPU ready
NVIDIA SLI readyTM certified
-
NVIDIA Hybrid ready
AMD CrossFireX certified
-

Casing

Dimensions without cable (L x W x D), (mm)
160 x 150 x 86
Weight incl. fixed cables (kg)
2.14
Color
black

Accessories

Thumb screws
-
Screws
Velcro cable ties
-
Cable ties
AC power cord (mm)
1.500
Box/Bag for PSU/Cables
-
User manual languages
EN, DE, FR, PL, ES, RU
OCK Jumper
-
OCK slot bracket with switch
-

Service

Warranty (Years)
5
Pick-up and return service in first year
DE, FR
International hotline / free of charge
✓ / DE, FR

Logistics data, RRP

Article number
BN231
EAN code
4260052183649
Dimensions, package (L x W x D), (mm)
328 x 248 x 102
