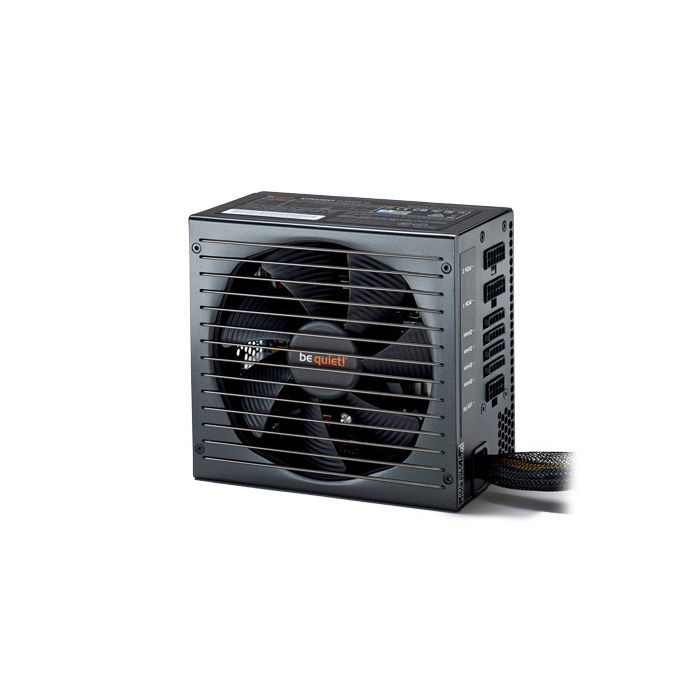

be quiet! Straight Power 10 CM 600W
€104,00
End of life
SKU
154889
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
General
Model
STRAIGHT POWER 10 | 600W CM
General data
Continuous power (W)
600
Peak power (W)
670
Form factor ATX 12V
Version 2.4
Form factor EPS 12V
Version 2.92
Modular cable management
✓
Special technology
Active Clamp + SR + DC/DC
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
8 / 4
PFC
active
Power factor at 100% load
>0.97
Power consumption in standby (W)
<0.25
Average life time (h / 25°C)
100.000
Operating temperature up to (°C)
40
Output
12 V Rails (Multi-Rail operation)
4
12 V Single Rail operation
-
Overclocking key
-
+3.3V (A)
24
+5V (A)
24
+12V1 (A)
18
+12V2 (A)
18
+12V3 (A)
20
+12V4 (A)
20
+12V5 (A)
-
+12V6 (A)
-
-12V (A)
0.5
+5Vsb (A)
3
Max. combined power 12V (W)
576
Max. combined power 3,3V + 5V (W)
140
Hold-up time (ms)
17
Fan / Cooling technology
Fan type
be quiet! SilentWings
✓
Motor technology
Bearing technology
Fan size (mm)
135
Max. fan speed (rpm), temperature-dependent
1,500
Control of case fans
-
Temperature control for case fans
-
Noise level data:
-
dB(A) at 20% load
10.6
dB(A) at 50% load
10.9
dB(A) at 100% load
20.2
Protection
Safety certification
Eco / Efficiency
80PLUS certification
Gold
Efficiency (%) at 230V, 20% load
87
Efficiency (%) at 230V, 50% load
90
Efficiency (%) at 230V,100% load
87
Cablemanagement / Connectors
Modular cable management
✓
Sleeved cables
✓
Cable length to mainboard (cm)
60
Cable length to first connector (cm)
55
Maximum cable length (cm)
115
All-in-one cable (SATA/IDE/FDD)
✓
No. of cables
7
PCI-E 6 pin (GPU)
-
PCI-E 6+2 pin (GPU)
4
IDE 4-pin (HDD, Drives)
3
SATA 5-pin (HDD, Drives)
9
FDD (Floppy)
1
Mainboard Connector (like 4 pin drive connector)
-
External fan connectors
-
GPU compatibility
Casing
Dimensions without cable (L x W x D), (mm)
160 x 150 x 86
Weight incl. fixed cables (kg)
2.37
Color
black
Accessories
Service
Warranty (Years)
5
Pick-up and return service in first year
DE, FR
International hotline / free of charge
✓ / DE, FR
Logistics data, RRP
Article number
BN235
EAN code
4260052183687
Dimensions, package (L x W x D), (mm)
328 x 248 x 102
EAN | 4260052183687 |
---|---|
Vendor ID | BN235 |
Voorraad status | End of life |
Energie Certificering | 80 Plus Gold |
Modulair | Ja |
Wattage | 600W - 700W |
Aantal ATX 12V | 1 x 8 (2x4) polig |
Aantal PCI-E | 4 x 6+2-polig |
Sata connectors | 9 X Sata |
Molex 4-pin | 3 x molex |
