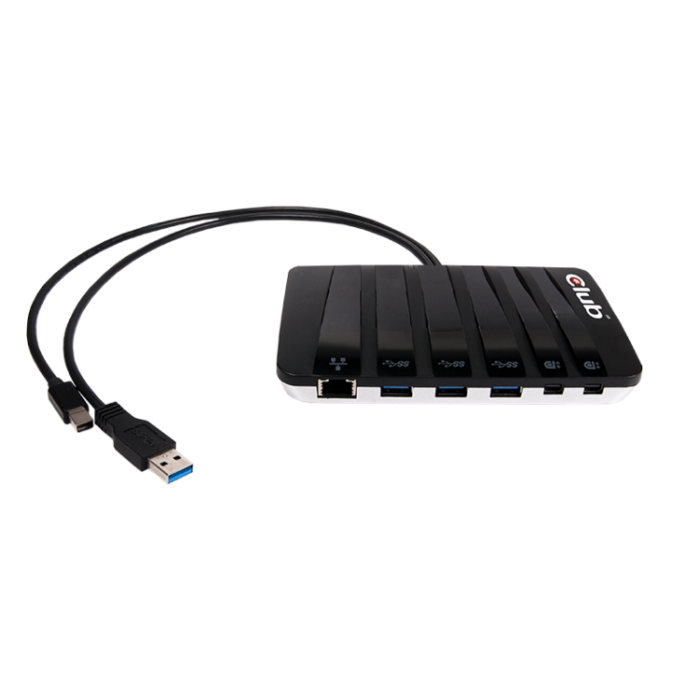

Club 3D SenseVision Y-Cabled Docking Station

Met de Club 3D Y-cabled Docking Station kan u gemakkelijk verschillende soorten randapparatuur aan uw notebook of tablet koppelen.

Beschikbaarheid: Op voorraad bij leverancier (2-5 werkdagen)

€ 90,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Club 3D
My icon

Meer dan 17 jaar ervaring met high-end pc's !

My icon

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

My icon

Uw order altijd goed verpakt !

My icon

Niet alleen een online shop, maar ook een échte winkel ! Meer info...


Beschrijving
Details

Y-Cabled docking station can easily be connected to your Laptop/Tablet and enable connectivity to a full range of peripherals.
It has built-in three USB3.0 ports, two MiniDisplayPort outputs and one Ethernet 10/100/100 port. You can even extend the connections of the USB ports as well as the MiniDisplayPort even further to add more periphirals and/or screens. The connected monitors can be configured to either mirror your primary screen, or extend the Windows desktop allowing visibility of more applications at the same time. No more stacking windows within the confines of a single display.

Slim Design

At 1.95 cm it's one of the slimmest Y-Cabled Docking Stations. Designed for easy portability and fantastic for your mobile lifestyle.

Scan button

The Club 3D Y-Cabled Docking Station features a scan button for attached displays through the Mini DisplayPort

Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB 3.0 and a Mini Displayport available you can now drive two 2560x1600 60Hz displays and 3x USB 3.0 for attached peripherals.

Product features

Power light: Power indicator
Network: 1x Ethernet RJ45 10/100/1000 port
Video: 2x Mini DisplayPort 1.2
AC adapter: DC 19.5V power
Standard compliance: Support DisplayPort 1.2, 1.1a, VESA DDM standard, HDCP 2.0, DisplayID and EDID 1.4
SUPPORTS:

Main link rates: 5.4 bps(HBR2), 27 bps(HBR) and 1.62 bps(RBR) from source
1/2/4 lanes of main link for RX side
DP++ output ports or two dual-link DVI ports, or the combination of ports
DP 1.2 MST Multi video/audio streams
1.1 source, ViewXpand supported
DP-DP bypass mode
AUX-CH enables SBM and I2C mapping over AUX between the source/sink and device
Dedicated I2C slave for main processor to access device
Resolution up to 2560x1600@60Hz each monitor in DP 1.2 MST and up to FHD/1080p in DP1.1 or DP 1.2 SST
Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB 444

Model

Product Name: Club 3D Y-Cabled Docking Station
Product Series: SenseVision
Item Code: CSV-3203
EAN Code:8717249401025
UPC code: 854365005855

Interface

USB 3.0 & Mini DisplayPort 1.2

Voltage

DC 19.5V

Output Configuration

2x Mini DP / 3x USB 3.0 / 1x RJ45

In the package

Club 3D Y-Cabled Docking Station
CD driver
Power Adapter

DisplayPort 1.2a supports up to twice the bandwidth of DisplayPort 1.1a (HBR). High Bit-rate 2 (HBR2) provides up to 5.4Gbps/lane of bandwidth, or up to 21.6Gbps in a full four-lane configuration. This lends itself very well to many applications that require ultra-high bandwidth.

DP 1.2

The number of display devices and also timings at which each display device can be driven will depend on the available bandwidth.

HBR

Graphics cards (only with the ones that has DisplayPort or Mini DisplayPort output)

HBR (Radeon HD 5000 series)
HBR2 (Radeon HD 6000 / 7000 / R7 / R9 series)

Maximum video resolution supported

Max resolution

With DisplayPort Native resolutions up to FHD (4K x 2K) @60Hz, 24bpp but limited by DP banwidth)

OS Support


Windows 7 32-bit and 64-bit
Windows 8 & 8.1   32-bit and 64-bit
