Cooler Master MasterFrame 600 Mesh
Op voorraad bij leverancier (2-5 werkdagen)

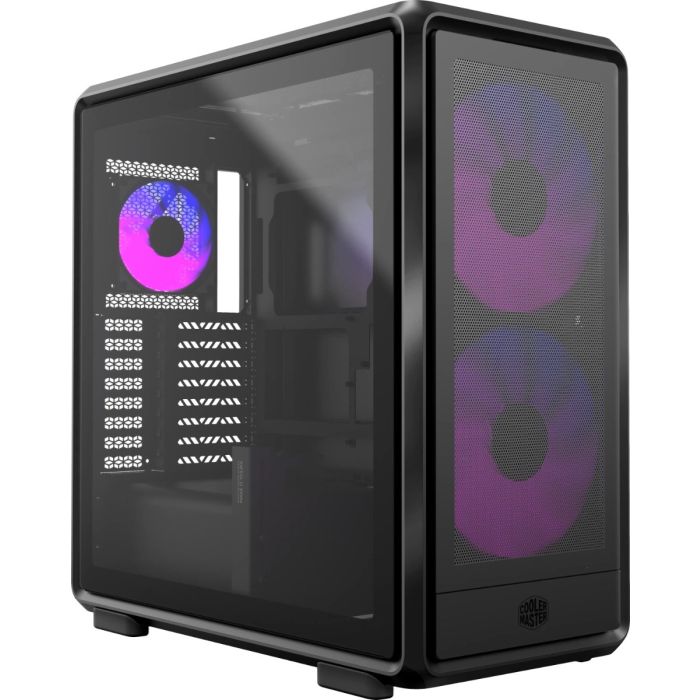

The MasterFrame 600 Mesh is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization. Designed with FreeForm 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.
Model Number Black: MF600M-KGNN-S01
Color(s) Black
Materials - Exterior SGCC Steel, Aluminum
Materials - Side panel (Right / Left) Tempered Glass / Aluminum
Dimensions (L x W x H) 531 x 261 x 544mm (Incl. Protrusions), 514 x 244 x 514 mm (Excl. Protrusions)
Volume 73.6 L (Liters Incl. Protrusions)
Motherboard Support Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support)
Power Supply Support ATX
PCI Expansion Slots 8
5.25" Drive Bays 0
3.5" Drive Bays 0
2.5" / 3.5" Drive Bays (Combo) 2
2.5" Drive Bays 3
I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Front 2x SickleFlow 200 ARGB
Pre-installed Fans - Top N/A
Pre-installed Fans - Rear 1x SickleFlow 120 ARGB
Fan Support - Front 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm
Fan Support - Top 3x 120mm, 2x 140mm, 2x 180mm, 1x 200mm
Fan Support - Rear 1x 120mm
Fan Support - Side 3x 120mm, 3x 140mm
Radiator Support - Front 120 / 140 / 240 / 280 / 360 / 420 mm
Radiator Support - Top 120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to the front panel)
Radiator Support - Rear 120 mm
Radiator Support - Side 240 / 280 / 360 / 420 mm
Dust Filters Top, Front, Bottom, Right side panel
Clearance - CPU Cooler 190 mm
Clearance - PSU 235 mm
Clearance - Graphics Card L: 485 mm (incl. power connector), H: 190 mm (incl. power connector)
Included Accessories GPU Support Bracket / ARGB PWM Hub
Cable Routing - Behind Motherboard Tray 43 mm
Warranty 2 years
Size Mid Tower
Series MasterFrame Series
| EAN | 4719512160954 |
|---|---|
| Vendor ID | MF600M-KGNN-S01 |
| Soort kast | Midi tower |
| Materiaal | Staal / Glas |
| Aantal 3,5 inch intern | 2 bays |
| Aantal 2,5 inch intern | 3 bays |
| Aantal 5,25 inch extern | Nee |
| Venster in de zijkant | Ja |
| Front USB aansluiting | USB 3.0 / USB 3.1 |
| Form Factor | EATX |
| Inclusief voeding | Nee |
| Color | Zwart |
