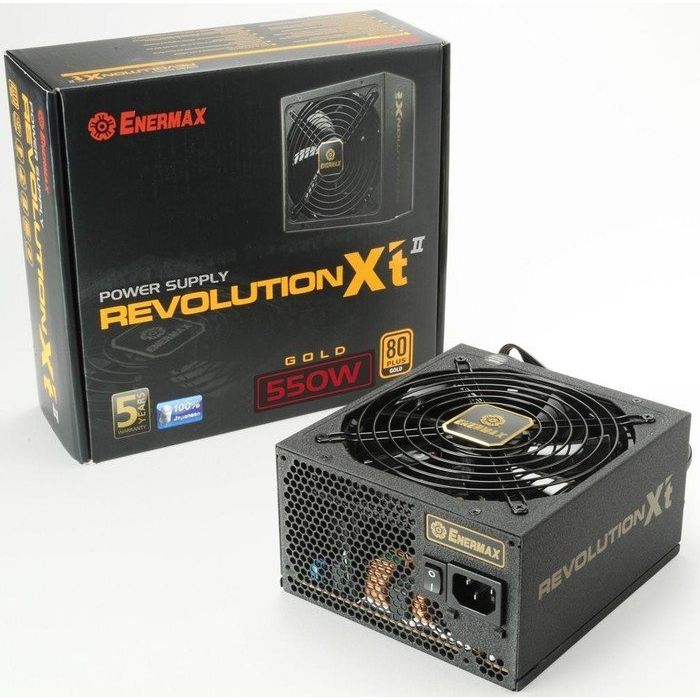

Enermax Revolution X't II 550W

The Revolution X’t II power supply series from ENERMAX achieves a peak efficiency of 92% (80 PLUS® Gold certified). It is based on an advanced DC-to-DC circuit for perfect voltage regulation and full compatibility with latest CPU/GPU energy-saving modes. The integrated 13.9cm Twister bearing fan ensures an efficient cooling and a silent operation. Revolution X’t II is built for performance-capable gaming system with one or two graphics cards. The flat modular cables simplify the system installation and cable routing. ENERMAX grants 5 years warranty on the Revolution X’t II series.

Technical Data

Efficiency & Noise Level



The Revolution X't II series complies with the requirements of the EU regulation for computer systems No. 617/2013 (valid from 1st of July 2014).



	10% Last @ 230V		20% Last @ 230V		50% Last @ 230V		100% Last @ 230V
	Eff.	dB(A)	Eff.	dB(A)	Eff.	dB(A)	Eff.	PF	dB(A)
ERX550AWT	86%	11.0	91%	11.0	93%	14.4	91%	0.97	18.3

* Eff. = Efficiency | PF = Power Factor

Modular Cables

			ERX550 AWT
EMC014-F			1x
EMC019-F			2x
EMC020-F			1x

Connectors

			ERX550 AWT
Native Connectors
Mainboard 24P			1x (60cm)
CPU 4+4P (8P)			1x (60cm)
Modular Connectors
SATA			8x
4P Molex			4x
PCI-E 2.0 6+2P (8P)			2x
FDD			1x
