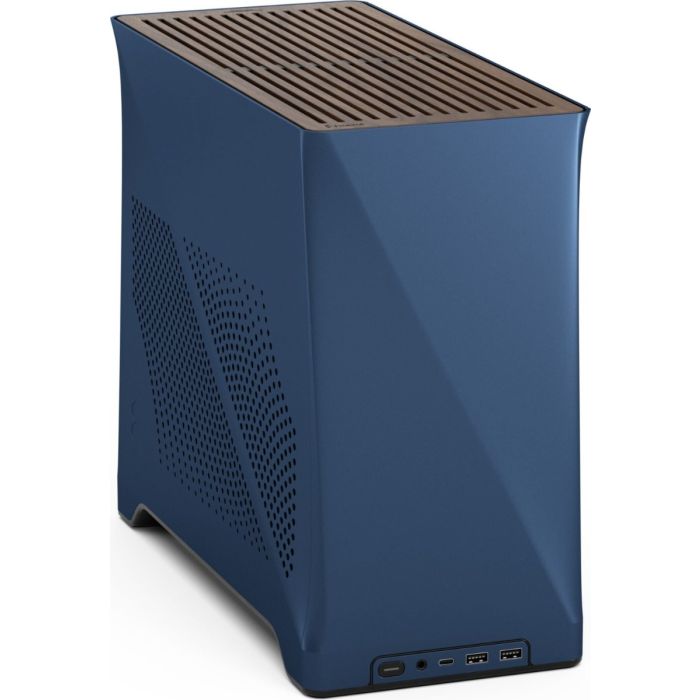

Fractal Design Era 2 Midnight Blue

Specifications 3.5"/2.5" drive mounts 0 total, 0 included
Dedicated 2.5" drive mounts 4 total, 4 included (2 on motherboard wall)
5.25” drive mounts 0 total, 0 included
Expansion slots 3
Motherboard compatibility ITX
Power supply type SFX / SFX-L
Front interface 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, Audio
Total fan mounts 4 x 120 or 2 x 120 and 2 x 140 mm (2x120 mm Aspect PWM fans included)
Top fan 2 x 120 mm or 2 x 140
Bottom fan 2 x 120 mm
Dust filters Bottom
Top radiator Up to 315 x 140 mm with total thickness ≤ 52 mm Up to 300 x 140 mm with total thickness ≤ 58 mm
GPU max length 326 mm
GPU max Height 137 mm
GPU max thickness 48-63 mm (depending on motherboard wall position)
CPU cooler max height 55-70 mm (depending on motherboard wall position)
Cable routing grommets No
Fixed velcro straps Yes (2 included)
Captive thumbscrews PCI-e Blanks
Panels Aluminum
SFF-Ready Enthusiast GeForce Cards Yes
*Note
If you wish to use the Era 2 PCIe 4.0 riser cable together with a PCIe 5.0 compatible motherboard and graphics card, make sure you first set the PCIe Slot Configuration in your motherboard BIOS or UEFI to PCIe Gen4 for best system stability.
Other
Case dimensions (LxWxH) 366 x 165 x 314 mm
Case dimensions w/o feet/protrusions/screws 365 x 165 x 314 mm
Net weight 4,64 kg
Package dimensions (LxWxH) 455 x 250 x 408 mm
Gross weight 5.74 kg
Package contents Case, Accessory Box, Designers Letter, Quick Start Note
Accessory box contents SSD Screw x16, PSU Screw x4, Motherboard Screw x8, Zip Tie x4
