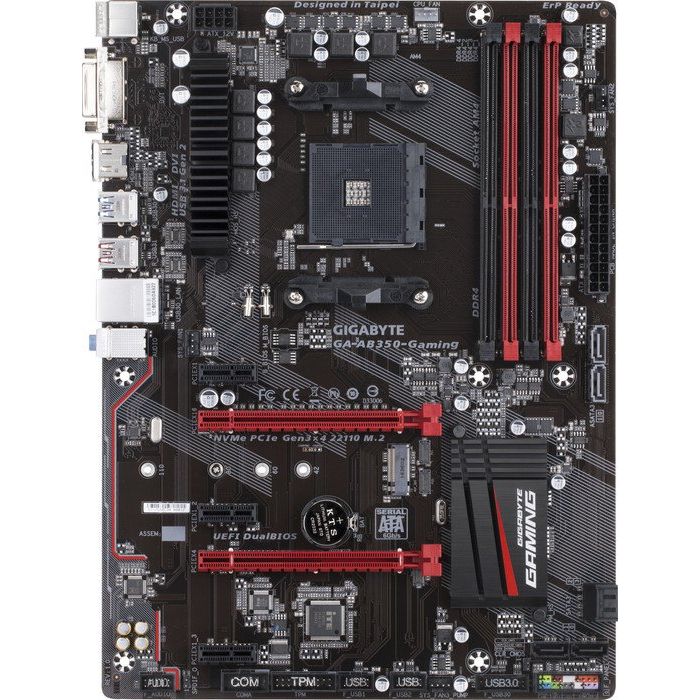

Gigabyte GA-AB350-Gaming

Beschikbaarheid: Op voorraad bij leverancier (2-5 werkdagen)

€ 96,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Gigabyte

Altijd persoonlijke service en aanpak !

Meer dan 13 jaar ervaring met high-end pc's !

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

Uw order altijd goed verpakt !
Altijd bevestiging via mail.

Niet alleen een online shop, maar ook een échte winkel ! Meer info...

Beschrijving
Details
  • Supports AMD Ryzen™ & 7th Generation A-series/ Athlon™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Fast 2 USB 3.1 Gen 2 with USB Type-A
  • 2-Way CrossFire™ Multi-Graphics Support
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 6 Temperature Sensors and 4 Hybrid Fan Headers
  • GIGABYTE UEFI DualBIOS™
  • APP Center Including EasyTune™ and Cloud Station™ Utilities



  • AM4 Socket:
    1. AMD Ryzen™ processor
    2. AMD 7th Generation A-series/ Athlon™ processor
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B350
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
      * Support for higher than DDR4 2667 MHz may vary by CPU.
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Maximum shared memory of 2 GB

    * Actual support may vary by CPU.
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * Actual support may vary by CPU.
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_2 and PCIEX1_3 slots are empty.
      * Actual support may vary by CPU.
    3. 3 x PCI Express x1 slots
      (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
      * Actual support may vary by CPU.
    2. 6 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Multi-Graphics Technology
    1. Support for 2-Way AMD CrossFire™ Technology
  • USB
    Chipset:
    1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.1 Gen 1 ports (available through the internal USB header)
    3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x M.2 Socket 3 connector
    4. 6 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 2 x system fan headers
    7. 1 x system fan/water cooling pump header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x S/PDIF Out header
    11. 1 x USB 3.1 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x serial port header
    14. 1 x Trusted Platform Module (TPM) header
    15. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DVI-D port
    3. 1 x HDMI port
    4. 4 x USB 3.1 Gen 1 ports
    5. 2 x USB 3.1 Gen 2 Type-A ports (red)
    6. 2 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      3D OSD
      Ambient LED
      AutoGreen
      BIOS Setup
      Cloud Station
      Color Temperature
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. ATX Form Factor; 30.5cm x 22.5cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Extra info
Extra info
EAN 4719331801366
Vendor ID GA-AB350-Gaming
Voorraad status Nee
Form Factor ATX
Socket AMD AM4
Type Geheugen DDR4
PCI-E (16x en 8x ) 1 slot
VGA onboard Ja, via processor
SLI / Crossfire Crossfire compatible
Aantal sata poorten 6 poorten
M.2-Slot Ja
USB 3.0 4X USB 3.0
USB 3.1 2X USB 3.1
Bluetooth/Wifi Nee
Firewire onboard Nee
Thunderbolt Nee
