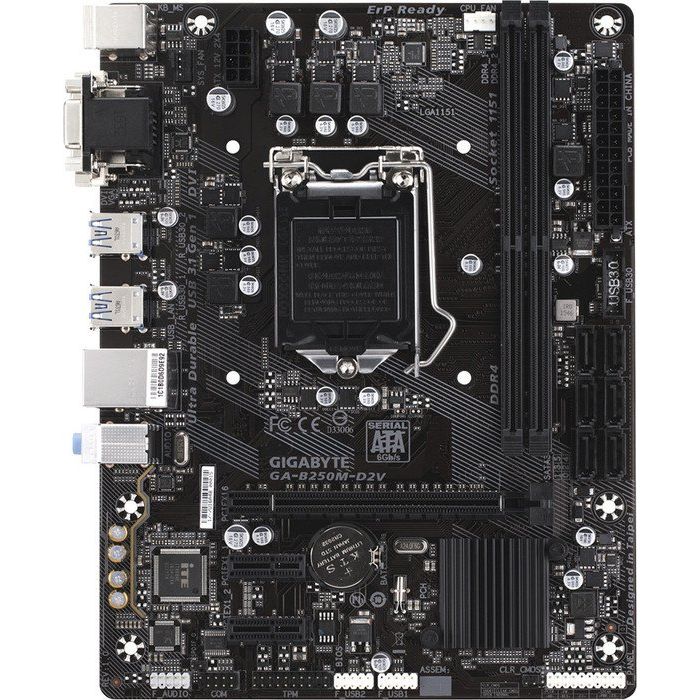

Gigabyte GA-B250M-D2V

€71,00
End of life
SKU
217294
Voeg toe aan je wensenlijst Vergelijk
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
  • Supports 7th/ 6th Generation Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
  • GIGABYTE UEFI BIOS™
  • APP Center Including Cloud Station™ Utility
CPU
  1. Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® B250 Express Chipset
Memory
  1. x DDR4 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 2400(O.C.)* / 2133 MHz memory modules
    * To support 2400 MHz or XMP memory, you must install a 7th generation processor.
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
    * To support 2400 MHz or XMP memory, you must install a 7th generation processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
  2. 2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface Chipset:
  1. 6 x SATA 6Gb/s connectors
USB Chipset:
  1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 6 x SATA 6Gb/s connectors
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 1 x S/PDIF Out header
  9. 1 x USB 3.1 Gen 1 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x Trusted Platform Module (TPM) header
  12. 1 x serial port header
  13. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 4 x USB 3.1 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 1 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    BIOS Setup
    Color Temperature
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for 3TB+ Unlock
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Operating systems supported may vary depending on your processor model.
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. Micro ATX Form Factor; 22.6cm x 17.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Meer informatie
EAN 4719331847272
Vendor ID GA-B250M-D2V
Voorraad status End of life
Form Factor Micro-ATX
Socket Intel 1151
Type Geheugen DDR4
PCIe 3.0 1 slot
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Geen SLI/Crossfire
Aantal sata poorten 6 poorten
M.2-Slot Nee
USB 3.0 4X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Nee
