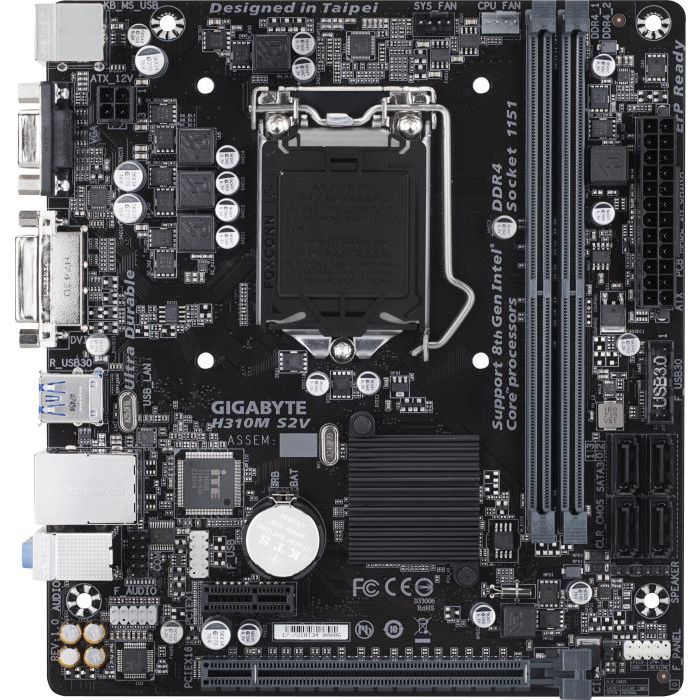

Gigabyte H310M S2V

€61,00
End of life
SKU
GNIG30

Intel H310 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready

  • Supports 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • All new GIGABYTE™ APP Center, simple and easy use
  • Anti-Sulfur Resistors Design
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
  • CPU
    1. Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® H310 Express Chipset
  • Memory
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 2666/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
      * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    Maximum shared memory of 1 GB
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 1 x PCI Express x1 slot
      (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
  • Storage Interface
    Chipset:
    1. 4 x SATA 6Gb/s connectors
  • USB
    Chipset:
    1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x USB 3.1 Gen 1 header
    9. 1 x USB 2.0/1.1 header
    10. 1 x serial port header
    11. 1 x speaker header
    12. 1 x chassis intrusion header
    13. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 2 x USB 3.1 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundle Software
    1. Norton® Internet Security (OEM version)
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 19.0cm x 17.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Meer informatie
EAN 4719331803438
Vendor ID H310M S2V
Voorraad status End of life
Form Factor Micro-ATX
Socket Intel 1151-v2
Type Geheugen DDR4
PCIe 3.0 1 slot
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Geen SLI/Crossfire
Aantal sata poorten 4 poorten
M.2-Slot Nee
USB 3.0 2X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Nee
