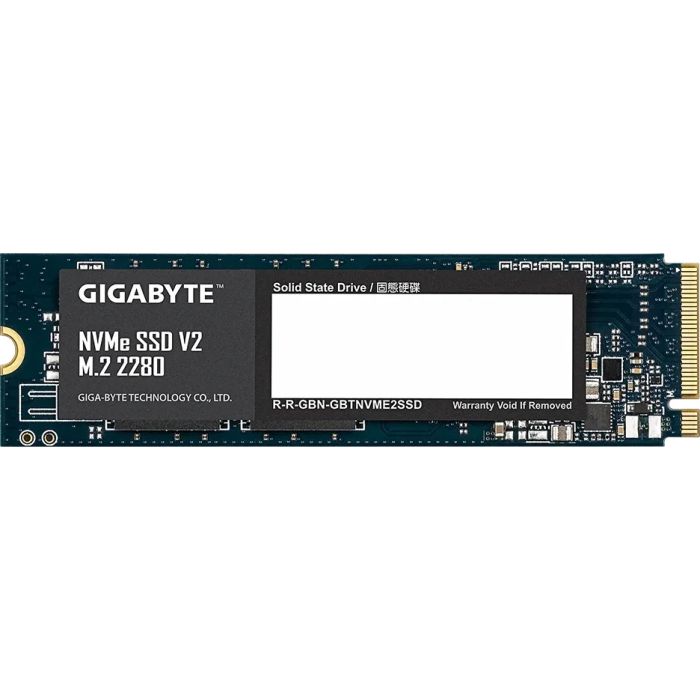

GIGABYTE NVMe SSD V2 256GB (PCIe 3.0 x 4)

Interface PCI-Express 3.0 x4, NVMe 1.4
Form Factor M.2 2280
Total Capacity 256GB
NAND 3D TLC NAND Flash
External DDR Cache N/A
Sequential Read speed Up to 3,200 MB/s
Sequential Write speed Up to 1,200MB/s
Dimension 80 x 22 x 2.3 mm
Mean time between failure (MTBF) 1.5 million hours
Max. Operating Power Read : 4.2W; Write : 3.0W
Power Consumption (Idle, PS3) 35mW
Power Consumption(PS4, L1.2) 5mW
Temperature (Operating) 0°C to 70°C
Temperature (Storage) -40°C to 85°C
Warranty
1. Limited 3-years or 100TBW.
2. Limited warranty based on 3 years or 100TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
