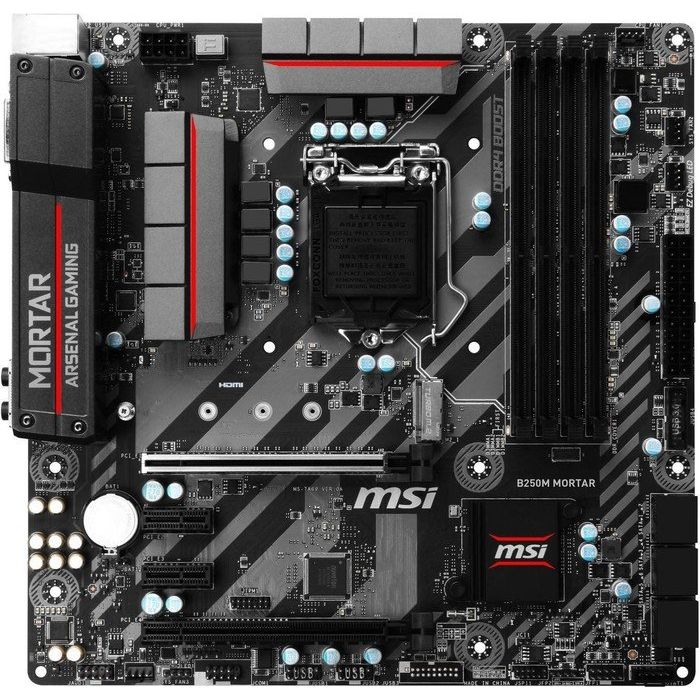

MSI B250M Mortar

€76,00
End of life
SKU
213694
Voeg toe aan je wensenlijst Vergelijk
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
  • Supports 7th / 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
  • Supports DDR4-2400 Memory (Max.)
  • DDR4 Boost: Give your DDR4 memory a performance boost
  • VR Ready: Best virtual reality game experience without latency
  • GAMING LEDs: Ambient LED lights for an awesome look & feel
  • Lightning Fast Game experience: Turbo M.2 with Steel Armor, Intel Optane Memory Ready
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • GAMING LAN with LAN Protect, powered by Intel® : The best online gaming experience with lowest latency and bandwidth management
  • Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
  • MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
  • Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click
  • In-Game Weapons: GAMING Hotkey, X-Boost, Xsplit Gamecaster
  • EZ Debug LED: Easiest way to troubleshoot
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
  • GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

CPU

• Supports 7th/6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* This function will be supported depend on the CPU.



Chipset

• Intel® B250 Chipset



Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- 7th Gen processors support DDR4 2400/ 2133 MHz*/ **
- B250 chipset + 6th Gen processors support DDR4 2133 MHz*/ **
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)**
* Please refer to www.msi.com for more information on compatible memory.
**DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6 th Gen processors on XMP mode.



Slots

• 2 x PCIe 3.0 x16 slots (support x16/x4 mode)
• 2 x PCIe 3.0 x1 slots



Onboard Graphics

• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
• 1 x DisplayPort, supports a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz,1920x1200@60Hz
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz



Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology


Storage

• Intel® B250 Chipset
• 6 x SATA 6Gb/s ports*
• 1 x M.2 slot (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
- Intel® Optane™ Memory Ready
• Supports Intel® Smart Response Technology for Intel Core™ processors

* The SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
** The Turbo U.2 Host Card is not included, please purchase separately.



USB

• Intel® B250 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A ports + 1 Type-C port on the back panel, 2 ports available through the internal USB connector)
ƒ- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)



Audio

• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio



LAN

• 1 x Intel® I219-V Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x M.2 slot
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x Serial port connector
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x TBT connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper



Back Panel I/O Ports

- 1 x PS/2 mouse & keyboard combo port
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 3 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen1 Type-C port
- 6 x OFC audio jacks



Dimension

• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
• Micro-ATX Form Factor



Mounting

• 8 mounting holes
Meer informatie
EAN 4719072496142
Vendor ID 7A69-003R
Voorraad status End of life
Form Factor Micro-ATX
Socket Intel 1151
Type Geheugen DDR4
PCIe 3.0 1 slot
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Crossfire compatible
Aantal sata poorten 6 poorten
M.2-Slot Ja
USB 3.0 4X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Nee
