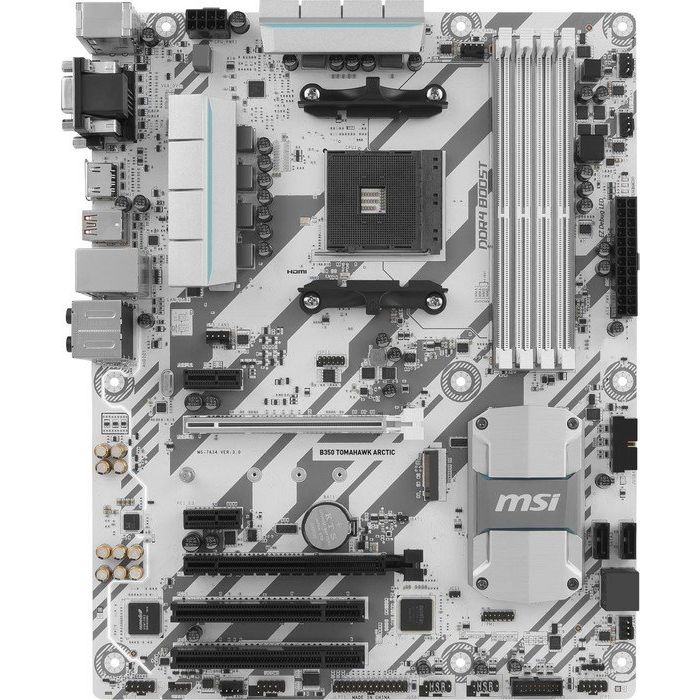

MSI B350 Tomahawk Artic

€107,00
End of life
SKU
sk214624
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
  • Supports AMD® RYZEN Series processors and 7th Gen A-series / Athlon™ Processors for socket AM4
  • Supports DDR4-3200+(OC) Memory
  • DDR4 Boost: Give your DDR4 memory a performance boost
  • VR Ready: Best virtual reality game experience without latency
  • GAMING LEDs: Ambient LED lights for an awesome look & feel
  • Lightning Fast Game experience: Turbo M.2
  • Audio Boost with Nahimic 2: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • GAMING LAN with LAN Protect: The best online gaming experience with lowest latency and bandwidth management
  • Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
  • MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
  • Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click
  • In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster
  • EZ Debug LED: Easiest way to troubleshoot
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
  • GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players
  • WHQL certified for Windows 10

CPU

• Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
* This function will be supported depend on the CPU.



Chipset

• AMD® B350 Chipset



Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
• Dual channel memory architecture
* 7th Gen A-series/ Athlon ™ processors support up to 2400 MHz. Please refer www.msi.com for more information on compatible memory.



Slots

• 1 x PCIe 3.0 x16 slot (PCI_E2)
- Supports x 16 speed with RYZEN Series Processors
- Supports x 8 speed with 7th Gen A-series/ Athlon™ processors
• 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*
• 2 x PCIe 2.0 x1 slots
• 2 x PCI slots
* PCI_E4 slot will become PCIe 2.0 x2 mode, when installing device in any PCIe x1 slot.



Onboard Graphics


• 1 x VGA port, supports a maximum resolution of 2048x1280@60HZ (RB)*
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz*
* Only support when using a 7th Gen A-series/ Athlon™ processor


Storage

• AMD® B350 Chipset
• 4 x SATA 6Gb/s ports*
- Support RAID 0, RAID 1 and RAID 10
• 1 x M.2 port (Key M)
- Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors ) and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices




USB

• AMD® B350 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

• AMD® RYZEN series processors/ 7th Gen A-series/ Athlon™ processors
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A ports and 1 Type-C port on the back panel)



Audio

• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio



LAN

• 1 x Realtek® 8111H Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x 4-pin RGB LED strip connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper



Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI™ port
- 3 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen1 Type-C port
- 1 x LAN (RJ45) port
- 6 x OFC audio jacks



Dimension

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor



Mounting

• 9 mounting holes





B350 TOMAHAWK back IO
  1. PS/2 GAMING Device Port
  2. VGA Port
  3. USB 3.1 Gen1 Ports
  4. Realtek® Gigabit LAN Port
  5. HD Audio Connectors
  6. USB 2.0 Port
  7. DVI-D Port
  8. HDMI
  9. USB 3.1 Gen1 Type-C Ports
  10. VR Ready USB 3.1 Gen1 Ports
Meer informatie
EAN 4719072512279
Vendor ID 7A36-004R
Voorraad status End of life
Form Factor ATX
Socket AMD AM4
Type Geheugen DDR4
PCIe 3.0 1 slot
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Crossfire compatible
Aantal sata poorten 4 poorten
M.2-Slot Ja
USB 3.0 4X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Nee
