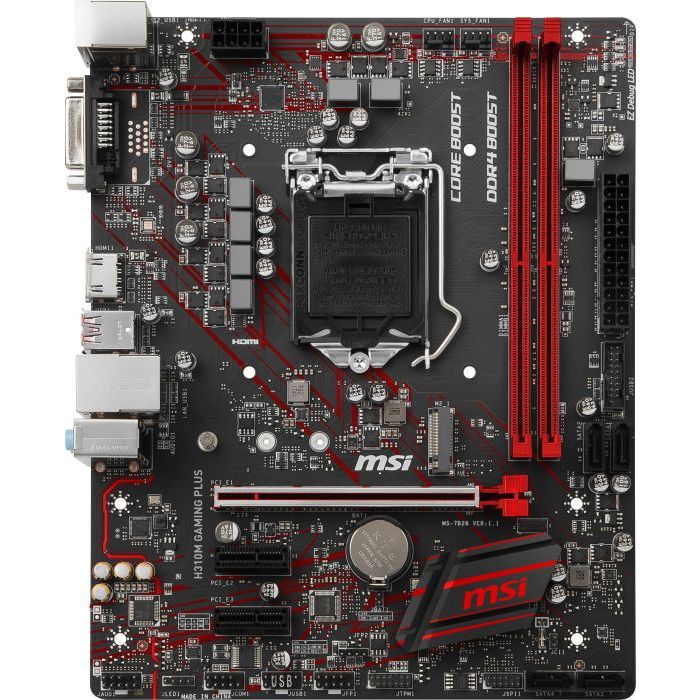

MSI H310M Gaming Plus
€83,00
End of life
SKU
GNIM26
- Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA 1151
- Supports DDR4 Memory, up to 2666 MHz
- MYSTIC LIGHT Sync: Synchronize other RGB solutions and control all LEDs in one click through Mystic Light APP or a mobile device.
- Core Boost: With premium layout and optimized power design to support more cores and provide better performance.
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
- M.2 and NVMe support, up to 20 Gb/s using PCI-Express Gen2 x4.
- GAMING LAN, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
- VR Ready: Best virtual reality game experience without latency, reduces motion sickness.
- In-Game Weapons: GAMING Hotkey, X-Boost.
- EZ Debug LED: Easiest way to troubleshoot.
- Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
PROCESSOR
Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151
CHIPSET
Intel® H310 Chipset
MEMORY
- 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2666/ 2400/ 2133 MHz
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer to www.msi.com for more information on compatible memory
SLOTS
- 1 x PCIe 3.0 x16 slots
- 2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
- 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
STORAGE
Intel® H310 Chipset
- 4 x SATA 6Gb/s ports
- 1 x M.2 slots (Key M)
- Support up to PCIe 2.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280 storage devices
USB
Intel® H310 Chipset
- 4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
- 6x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
AUDIO
Dual Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x Intel I219-V Gigabit LAN controller
INTERNAL CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 1 x Serial port connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x LED connector
- 1 x Clear CMOS jumper
BACK PANEL PORTS
- PS/2 Combo Port
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- DVI-D Port
- HDMI
- USB 3.1 Gen1 Port
- USB 2.0 Port
DIMENSIONS
- 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
- m-ATX Form Factor
MOUNTING
6 mounting holes
EAN | 4719072562892 |
---|---|
Vendor ID | 7B28-001R |
Voorraad status | End of life |
Form Factor | Micro-ATX |
Socket | Intel 1151-v2 |
Type Geheugen | DDR4 |
PCIe 3.0 | 1 slot |
PCIe 4.0 | Nee |
VGA onboard | Ja, via processor |
SLI / Crossfire | Geen SLI/Crossfire |
Aantal sata poorten | 4 poorten |
M.2-Slot | 1x |
USB 3.0 | 2X USB 3.0 |
USB 3.1 | Nee |
Bluetooth/Wifi | Nee |
