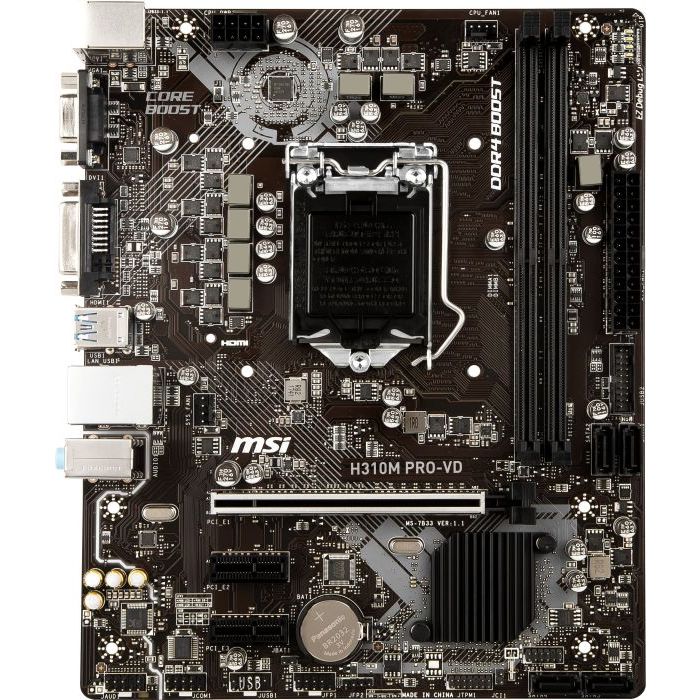

MSI H310M PRO-VD

€65,00
End of life
SKU
256516
  • Supports 8th Gen Intel® Core™ / Pentium® Gold/ Celeron® Processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666MHz
  • Audio Boost: Reward your ears with studio grade sound quality.
  • EZ Debug LED: Easiest way to troubleshoot.
  • PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength.
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

PROCESSOR

Supports 8th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for Socket LGA1151

See supported processors

CHIPSET

Intel® H310 Chipset

MEMORY

  • 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

SLOTS

  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

  • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

STORAGE

Intel® H310 Chipset

  • 4 x SATA 6Gb/s ports

USB

Intel® H310 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

AUDIO

Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 2 x Front panel connectors
  • 1 x Front panel audio connector
  • 1 x Serial port connector
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. VGA Port
  3. DVI-D Port
  4. USB 3.1 Gen1
  5. LAN Port
  6. HD Audio Connectors
  7. USB 2.0 Port
  8. USB 2.0 Port
MSI H310M PRO-VD back panel ports

DIMENSIONS

  • 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
  • m-ATX Form Factor

MOUNTING

6 mounting holes

Meer informatie
EAN 4719072561901
Vendor ID 7B33-002R
Voorraad status End of life
Form Factor Micro-ATX
Socket Intel 1151-v2
Type Geheugen DDR4
PCIe 3.0 1 slot
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Geen SLI/Crossfire
Aantal sata poorten 4 poorten
M.2-Slot Nee
USB 3.0 2X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Nee
