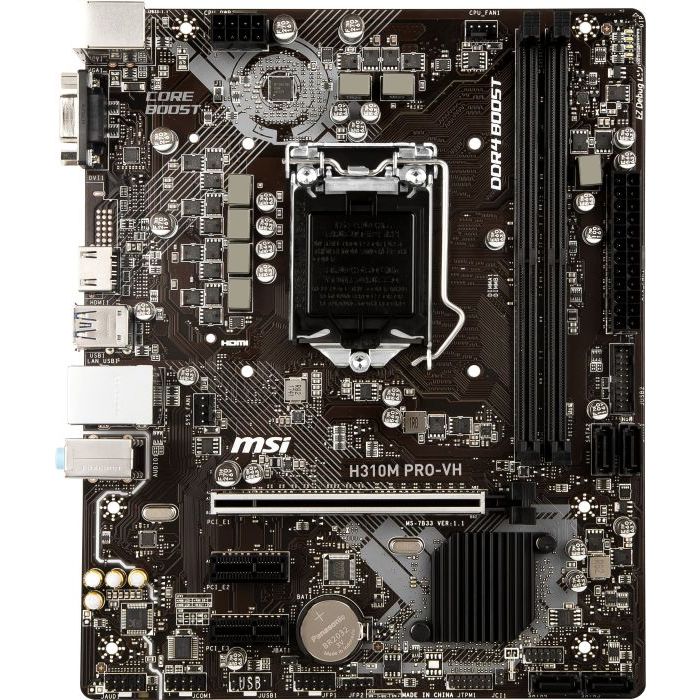

MSI H310M PRO-VH
€66,00
End of life
SKU
sk214860
- Supports 8th Gen Intel® Core™ / Pentium® Gold/ Celeron® Processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666MHz
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: Easiest way to troubleshoot.
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
PROCESSOR
Supports 8th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for Socket LGA1151
CHIPSET
Intel® H310 Chipset
MEMORY
- 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2666/ 2400/ 2133 MHz
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
SLOTS
- 1 x PCIe 3.0 x16 slot
- 2 x PCIe 2.0 x1 slots
ONBOARD GRAPHICS
- 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
- 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H
STORAGE
Intel® H310 Chipset
- 4 x SATA 6Gb/s ports
USB
Intel® H310 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
AUDIO
Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 2 x Front panel connectors
- 1 x Front panel audio connector
- 1 x Serial port connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 4 x EZ Debug LED
BACK PANEL PORTS
- PS/2 Combo Port
- VGA Port
- HDMI Port
- USB 3.1 Gen1
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- USB 2.0 Port
DIMENSIONS
- 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
- m-ATX Form Factor
MOUNTING
6 mounting holes
EAN | 4719072561895 |
---|---|
Vendor ID | 7B33-001R |
Voorraad status | End of life |
Form Factor | Micro-ATX |
Socket | Intel 1151-v2 |
Type Geheugen | DDR4 |
PCIe 3.0 | 1 slot |
PCIe 4.0 | Nee |
VGA onboard | Ja, via processor |
SLI / Crossfire | Geen SLI/Crossfire |
Aantal sata poorten | 4 poorten |
M.2-Slot | Nee |
USB 3.0 | 2X USB 3.0 |
USB 3.1 | Nee |
Bluetooth/Wifi | Nee |
