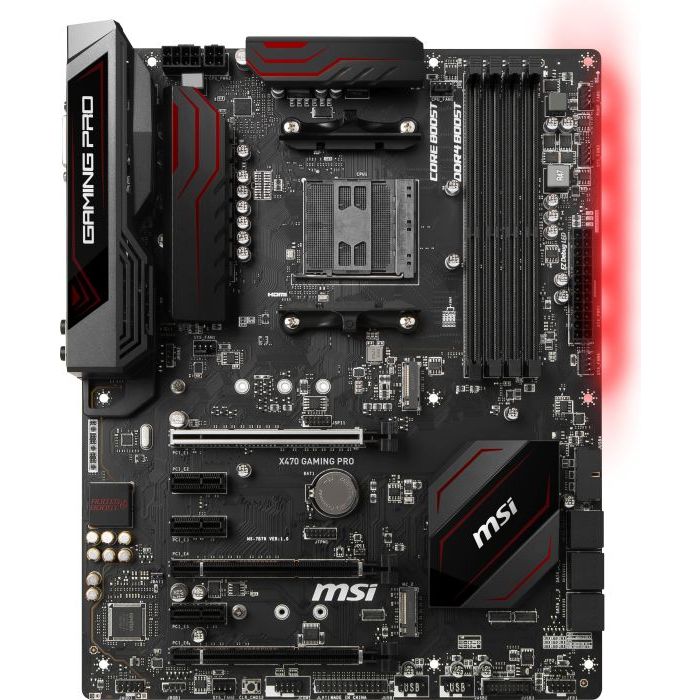

MSI X470 Gaming Pro

€160,00
End of life
SKU
sk214904
  • Supports AMD® RYZEN Desktop Processors and AMD® A-series / Athlon Processors for socket AM4
  • Supports DDR4-3466+(OC) Memory
  • DDR4 Boost: Give your DDR4 memory a performance boost
  • Mystic Light and Mystic Light Sync: 7 colors / 7 effects in one click. Synchronize other RGB solutions for customization.
  • Lightning Fast Game experience: TURBO M.2, StoreMI, AMD Turbo USB 3.1 GEN2
  • Audio Boost with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Core Boost: With premium layout and optimized power design to support more cores and provide better performance.
  • MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 3-Way AMD Crossfire™
  • VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance.
  • In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
  • EZ Debug LED: Easiest way to troubleshoot
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

PROCESSOR

Supports AMD® Ryzen™ Desktop Processors and AMD® A-Series/Athlon™ Processors for Socket AM4

See supported processors

CHIPSET

AMD® X470 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE1
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  1. A-series/ Athlon™ processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.

SLOTS

  • 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
    • Ryzen™ Desktop Processors support x16/x0, x8/x8 mode
    • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors support x8/x0 mode
  • 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
  • 3 x PCIe 2.0 x1 slots
  1. PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

MULTI-GPU

  • Ryzen™ Desktop Processors
    • Supports 3-Way AMD® CrossFire™ Technology
  • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
    • Supports 2-Way AMD® CrossFire™ Technology

STORAGE

AMD® X470 Chipset

  • 6 x SATA 6Gb/s ports
  • 2 x M.2 ports (Key M)1
    • M2_1 slot (from AMD® processor) supports PCIe 3.0 x4 (Ryzen™ Desktop Processors ) or PCIe 3.0 x2 (A-series/ Athlon™ Processors) 2242/ 2260 /2280/ 22110 storage devices
    • M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  1. SATA1 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
  2. PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.

RAID

AMD® X470 Chipset

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

ONBOARD GRAPHICS

  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1
  1. Only support when using Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
  2. Maximum shared memory of 2048 MB

USB

ASMedia® ASM1143 Chipset

  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

AMD® X470 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB connectors
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD® CPU

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin PUMP fan connector (supports up to 2A)
  • 4 x 4-pin system fan connectors
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 2 x 5050 RGB LED strip 12V connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Clear CMOS button

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. USB 3.1 Gen1
  3. LAN Port
  4. HD Audio Connectors
  5. USB 2.0 Port
  6. DVI-D Port
  7. HDMI Port
  8. USB 3.1 Gen1
  9. USB 3.1 Gen2
  10. Optical S/PDIF OUT
MSI x470 gaming plus back panel ports

DIMENSIONS

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

MOUNTING

9 mounting holes

Meer informatie
EAN 4719072564261
Vendor ID 7B79-001R
Voorraad status End of life
Form Factor ATX
Socket AMD AM4
Type Geheugen DDR4
PCIe 3.0 2 sloten
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Crossfire compatible
Aantal sata poorten 6 poorten
M.2-Slot 2x
USB 3.0 4X USB 3.0
USB 3.1 2X USB 3.1
Bluetooth/Wifi Nee
