main product photo

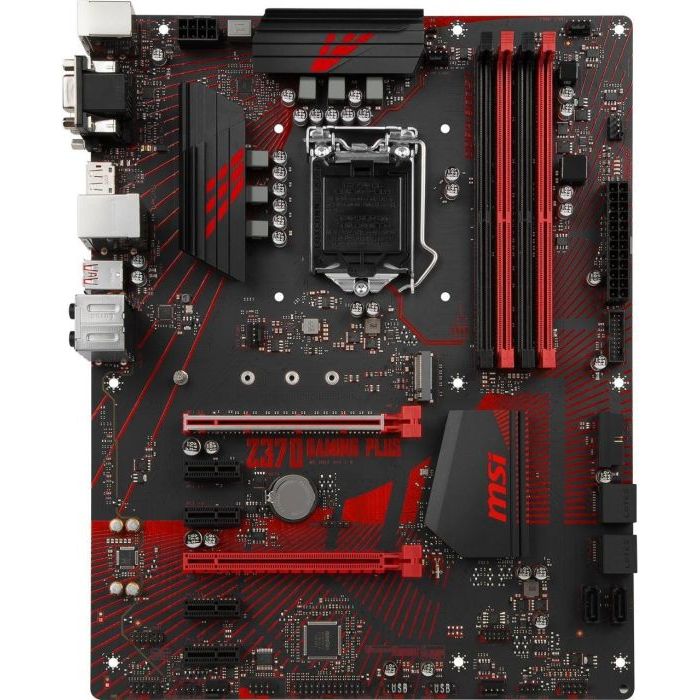

MSI Z370 Gaming Plus

€136,00
End of life
SKU
sk214720
Voeg toe aan je wensenlijst Vergelijk
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
  • Supports 8th Gen Intel® CoreTM / Pentium® Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4000+(OC) MHz
  • Lightning Fast Game experience: 1x TURBO M.2, Intel Optane Memory Ready.
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost.
  • GAMING LAN, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
  • MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
  • VR Ready: Best virtual reality game experience without latency, reduces motion sickness
  • Military Class 5, Guard-Pro: Latest evolution with high quality Japanese components for best protection and efficiency
  • In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast
  • EZ Debug LED: Easiest way to troubleshoot
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
  • GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

CPU

• Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1151



Chipset

• Intel® Z370 Chipset



Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz*
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.



Slots

• 2 x PCIe 3.0 x16 slots
• 4 x PCIe 3.0 x1 slots



Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology



Onboard Graphics

• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x DisplayPort, supports a maximum resolution of 4096x2304@24Hz, 3840x2160@60Hz, 1920x1200@60Hz


Storage

• Intel® Z370 Chipset
• 6 x SATA 6Gb/s ports*
• 1 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices
- Intel® Optane™ Memory Ready**

* The SATA1 port will be unavailable when M.2 SATA SSD has been installed in M.2 slot.
** Please refer to page 100 for Intel® Optane™ Memory Configuration.



RAID

• Intel® Z370 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices



USB

• Intel® Z370 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)



Audio

• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio



LAN

• 1 x Intel® I219-V Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Parallel port connector
- 1 x Serial port connector
- 1 x Clear CMOS jumper



Back Panel I/O Ports

- 1 x PS/2 mouse / keyboard combo port
- 2 x USB 2.0 ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x DisplayPort port
- 1 x LAN (RJ45) port
- 4 x USB 3.1 Gen1 Type-A ports
- 6 x OFC audio jacks



Dimension

• 12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor



Mounting

• 9 mounting holes
Meer informatie
EAN 4719072540425
Vendor ID 7B61-002R
Voorraad status End of life
Form Factor ATX
Socket Intel 1151-v2
Type Geheugen DDR4
PCIe 3.0 2 sloten
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Crossfire compatible
Aantal sata poorten 6 poorten
M.2-Slot 1x
USB 3.0 4X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Nee
