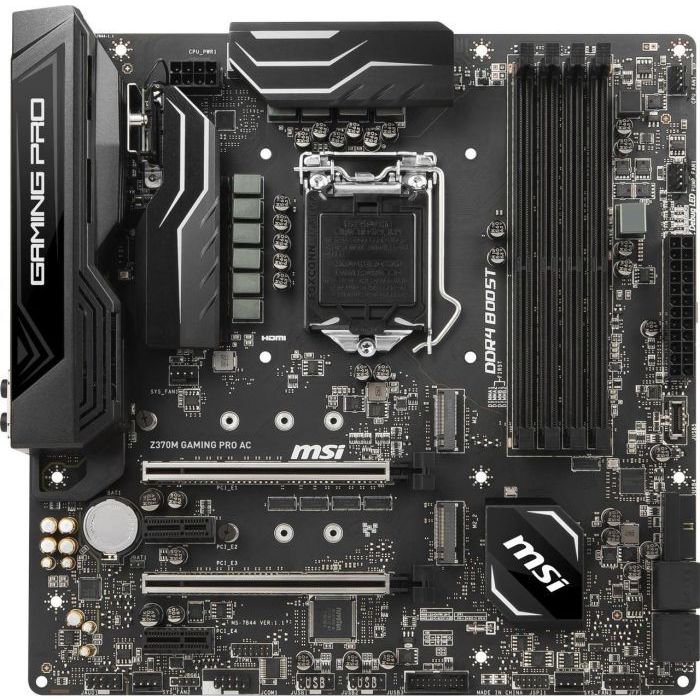

MSI Z370M Gaming Pro AC

€169,00
End of life
SKU
sk214723
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
  • Supports 8th Gen Intel® CoreTM / Pentium® Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4000+(OC) MHz
  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. LIGHTNING USB 3.1 GEN2
  • AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost.
  • GAMING LAN and Wireless support, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
  • MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way NVIDIA SLI™ & 2-Way AMD Crossfire™
  • VR Ready: Best virtual reality game experience without latency, reduces motion sickness
  • Military Class 5, Guard-Pro: Latest evolution with high quality Japanese components for best protection and efficiency
  • In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast
  • EZ Debug LED: Easiest way to troubleshoot
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
  • GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

CPU

• Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1151



Chipset

• Intel® Z370 Express Chipset



Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.



Slots

• 2 x PCIe 3.0 x16 slots (support x16/x0, x8/x8 modes)
• 2 x PCIe 3.0 x1 slots



Onboard Graphics

• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
• 1 x DisplayPort port, supports a maximum resolution of 4096X2304@24Hz, 3840X2160@60Hz,1920X1200@60Hz



Multi-GPU

• Supports 2-Way NVIDIA® SLI™ Technology
• Supports 2-Way AMD® CrossFire™ Technology


Storage

• Intel® Z370 Chipset
• 4 x SATA 6Gb/s ports*
• 2 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Intel® Optane™ Memory Ready for all M.2 slots*
• Supports Intel® Smart Response Technology for Intel Core™ processors
* Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.


RAID

• Intel® Z370 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 for M.2 PCIe storage devices*
* M.2 PCIe RAID volume can be created with M.2 GENIE.



USB

• ASMedia® ASM3142 Chipset
- 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C port available through the internal USB connector)
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

• Intel® Z370 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 4 x USB 2.0 (High-speed USB) ports available through the internal USB connector



Audio

• Dual Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output


Wirsless LAN & Bluetooth®

• Intel® Dual Band Wireless-AC 8265 card
- The Wireless module is pre-install in the M2_3 (KeyE) slot.
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2



LAN

• 1 x Intel I219-V Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen2 Type-C connector
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x Serial port connector
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper



Back Panel I/O Ports

- 2 x antenna connectors
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x DisplayPort port
- 1 x HDMI™ port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x LAN (RJ45) port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector



Dimension

• 9.6in. x 9.6 in. (24.4 cm x 24.4 cm)
• ATX Form Factor



Mounting

• 9 mounting holes

Meer informatie
EAN 4719072540340
Vendor ID 7B44-001R
Voorraad status End of life
Form Factor Micro-ATX
Socket Intel 1151-v2
Type Geheugen DDR4
PCIe 3.0 2 sloten
PCIe 4.0 Nee
VGA onboard Ja
SLI / Crossfire SLI + Crossfire
Aantal sata poorten 4 poorten
M.2-Slot 2x
USB 3.0 4X USB 3.0
USB 3.1 2X USB 3.1
Bluetooth/Wifi Ja
