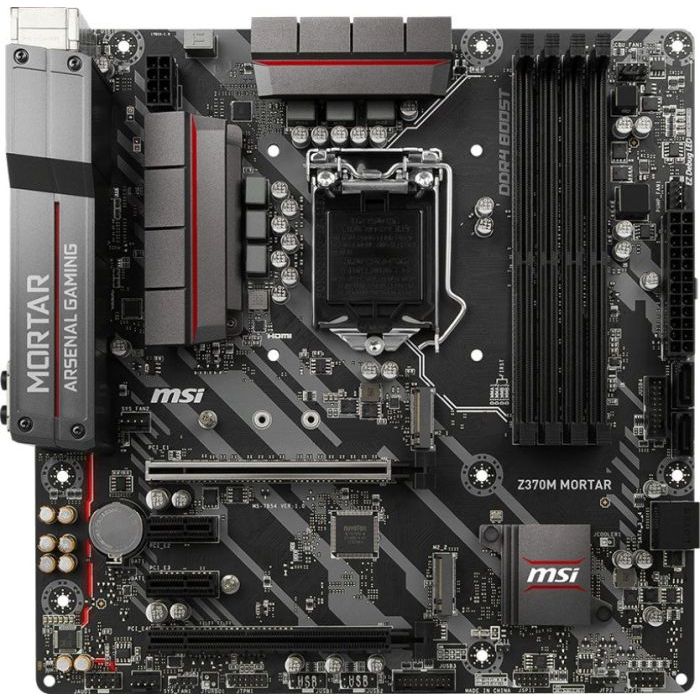

MSI Z370M Mortar

€142,00
End of life
SKU
sk214762
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
  • Supports 8th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4000+(OC) MHz
  • DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.
  • Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
  • Audio Boost: Isolated audio with a high quality audio processor for the most immersive gaming experience.
  • MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire™
  • GAMING LAN powered by Intel®: Experience smooth gaming experience by reducing CPU overheadand, offering more effective and long-term CPU usage.
  • EZ Debug LED: Easiest way to troubleshoot
  • Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
  • VR Ready: Best virtual reality game experience without latency, reduces motion sickness
  • X-Boost: Great tool to boost your USB & Storage performance
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function


CPU

• Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1151



Chipset

• Intel® Z370 Chipset



Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz*
• Supports Dual-Channel mode
• Supports non-ECC UDIMM memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.



Slots

• 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
• 2 x PCIe 3.0 x1 slots



Onboard Graphics

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x DisplayPort, supports a maximum resolution of 4096x2304@24Hz
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz



Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology


Storage

• Intel® Z370 Chipset
• 4 x SATA 6Gb/s ports*
• 2 x M.2 slots (Key M)
- M2_1 supports up to PCIe 3.0 x4, 2242/ 2260 /2280 storage devices
- M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices*
- Intel® Optane™ Memory Ready for all M.2 slots*
• Supports Intel® Optane™ Memory Ready**
* SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M2_2 slot.
** Please refer to manual for Intel® Optane™ Memory Configuration.



RAID

• Intel® Z370 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices



USB

• 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)



Audio

• Dual Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output


LAN

• 1 x Intel I219-V Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 2 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper



Back Panel I/O Ports

- 1 x PS/2 mouse / keyboard combo port
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 1 x DisplayPort port
- 1 x HDMI port
- 1 x LAN (RJ45) port
- 4 x USB 3.1 Gen1 Type-A ports
- 5 x OFC audio jacks
- 1 x Optical S/PDIF out connector



Dimension

• 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
• Micro-ATX Form Factor



Mounting

• 8 mounting holes

Meer informatie
EAN 4719072546533
Vendor ID 7B54-001R
Voorraad status End of life
Form Factor Micro-ATX
Socket Intel 1151-v2
Type Geheugen DDR4
PCIe 3.0 2 sloten
PCIe 4.0 Nee
VGA onboard Ja, via processor
SLI / Crossfire Crossfire compatible
Aantal sata poorten 4 poorten
M.2-Slot 2x
USB 3.0 4X USB 3.0
USB 3.1 Nee
Bluetooth/Wifi Nee
