Noctua NH-U9S

Momenteel nog maar 2 stuk(s) bij de distri !

Beschikbaarheid: Op voorraad bij leverancier (2-5 werkdagen)

€ 64,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Noctua
My icon

Meer dan 17 jaar ervaring met high-end pc's !

My icon

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

My icon

Uw order altijd goed verpakt !

My icon

Niet alleen een online shop, maar ook een échte winkel ! Meer info...


Beschrijving
Details

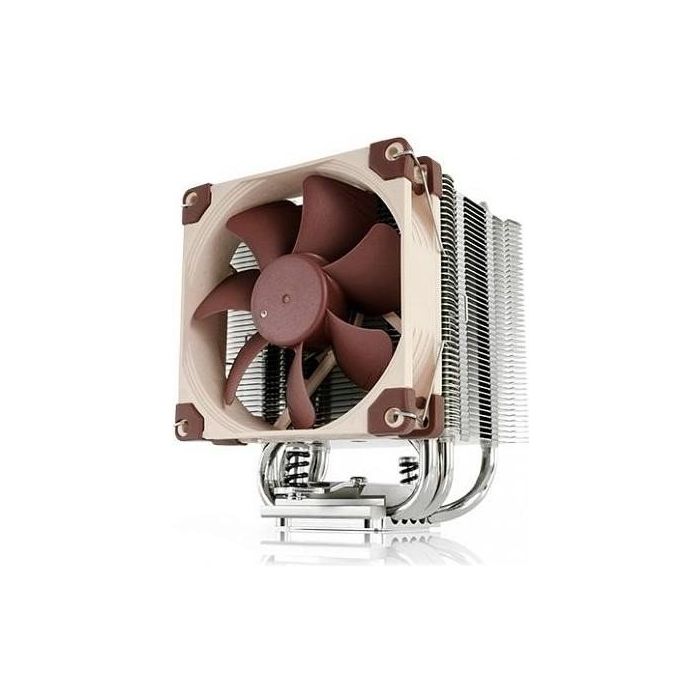

Continuing the renowned legacy of Noctua’s award-winning NH-U9 series, the NH-U9S is a premium quality quiet CPU cooler in classic 9cm size. Its asymmetrical design with 5 heatpipes not only provides even better cooling performance than the previous generation but also improves compatibility: Thanks to its 95x95mm footprint, the NH-U9S clears the RAM and PCIe slots on all Intel and most AMD based mainboards, including µATX and ITX. Combined with its 125mm height, this makes the NH-U9S a highly versatile solution with excellent case, RAM and PCIe compatibility. The included NF-A9 premium fan supports automatic speed control via PWM for outstanding quietness of operation and a second, optional NF-A9 fan can be added for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s provenNT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U9S is a deluxe choice through and through.

Socket compatibility   Intel LGA2011-0 & LGA2011-3(Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)



Height (without fan)   125 mm



Width (without fan)   95 mm



Depth (without fan)   68 mm



Height (with fan)   125 mm



Width (with fan)   95 mm



Depth (with fan)   95 mm



Weight (without fan)   524 g



Weight (with fan)   618 g



Material   Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Max. TDP   see TDP guide



Fan compatibility   92x92x25



Scope of Delivery
  • NF-A9 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kit
  • Fan-clips for second NF-A9
  • Noctua Metal Case-Badge



Warranty   6 Years





Fan specifications




Model   Noctua NF-A9 PWM



Bearing   SSO2



Max. Rotational Speed (+/- 10%)   2000 RPM



Max. Rotational Speed with L.N.A. (+/- 10%)   1550 RPM



Min. Rotational Speed (PWM, +/-20%)   400 RPM



Max. Airflow   78,9 m³/h



Max. Airflow with L.N.A.   62,6 m³/h



Max. Acoustical Noise   22,8 dB(A)



Max. Acoustical Noise with L.N.A.   16,3 dB(A)



Input Power   1,2 W



Voltage Range   12 V



MTBF   > 150.000 h


Extra info
Extra info
EAN 4716123315575
Vendor ID NH-U9S
Voorraad status Nee
Socket Socket 1150, Socket 1155/1156, Socket 2011, Socket 2011-v3, Socket AM2/AM3, Socket AM3+, Socket FM1, Socket FM2/FM2+
Aantal Heatpipes 5 Heatpipes
Type koeling Lucht koeling
