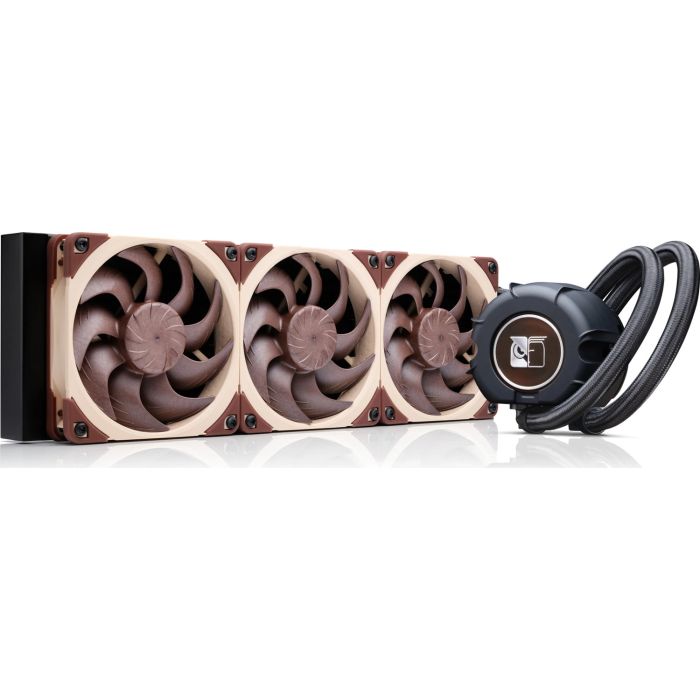

Noctua NL-LC1-36 360mm AIO Waterkoeler

Key specifications

Pump model Asetek Emma V2
Socket compatibility AM5, AM4, LGA1700, LGA1851, LGA1954
Radiator form factor 360 mm
Fan configuration 3x NF-A12x25 G2
NSPR  248
Warranty 6 years

Scope of delivery

NL-LC1-36 closed-loop liquid cooler with NL-PNA1 pump noise absorber
Metal Noctua logo faceplate
3x NF-A12x25 G2 PWM fans with speed-offset (PPA/PPB/PPA)
3x NA-AVG1 anti-vibration gaskets (pre-installed)
NA-SC1 3-way splitter cable
NA-EC1 30cm extension cable
Fan and radiator mounting screws (Torx® T20)
SecuFirm2+™ multi-socket mounting system with offset options for
AMD AM5/AM4 and Intel LGA1851/1700
NM-SD1 Torx® T20 screwdriver
NT-H2 thermal compound
NA-CW1 cleaning wipe
NA-TPG1 thermal paste guard for AMD AM5
Noctua metal case badge

Fan: NF-A12x25 G2 PWM


Size (Form factor) 120 x 120 x 25 mm (square)
Speed range 0 – 1800 rpm
Airflow (max.) 107.3 m³/h (63.15 CFM)
Acoustical noise (max.) 22.5 dB(A)
Static pressure (max.) 3.14 mm H₂O
Rated voltage 12 V
Connector 4-pin
Colour Brown
Warranty 6 years
Pump block specifications

Pump model Asetek Emma V2
Pump block height 70 mm
Motor type (phases) Three phase
Impeller type Centrifugal (closed)
Bearing Ceramic sleeve and shaft
Rated voltage 12 V
Starting voltage 9.5 V
Max. operating voltage 13.2 V
Input power (max) 6 W
Input power (typical) 2 W
Input current (max) 1.7 A
Input current (typical) 0.5 A
Max. rotational speed (manual mode)  3400 rpm
Max. rotational speed (balanced mode)  2600 rpm
Max. rotational speed (quiet mode)  2100 rpm
Rotational speed @ 20% PWM  750 rpm
Rotational speed @ 0% PWM  750 rpm
Max. acoustical noise (manual mode) 14.9 dB(A)
Max. acoustical noise (balanced mode) 7.8 dB(A)
Max. acoustical noise (quiet mode) <5 dB(A)
Cable length 500 mm
Connector type 4-pin PWM
Pin configuration

Pin 1 Black: Ground (GND)
Pin 2 Black: Voltage (Vcc)
Pin 3 Black: RPM Signal
Pin 4 Black: PWM Signal
Cold plate material Copper CU1100 (99.95% high-purity)
Cold plate size 55.5 x 55.5 mm
Construction Skived fin micro channels
Mounting system SecuFirm2+
Mounting hole pitch 78 mm
Pump noise absorber NL-PNA1
Auxiliary cooling fan Optional (NL-ACF1)
Coolant specifications

Composition 22% propylene glycol 78% water
Inhibitors Anti-freeze
Anti-corrosion Antibiological
Compatibility Non-toxic
Electrically conductive Tube specifications

Material EPDM (braided)
Tube length 410 mm
Outer diameter 12.5 mm
Inner diameter 7 mm
Min. bend radius 26 mm
Radiator specifications

Form factor 360 mm
Material (fins) Aluminium
Material (tubes) Aluminium
Material (frame) Steel
Fins per inch (FPI) 20
Radiator size 399.5 x 120 x 30 mm
Fan configuration 3x 120x120x25 mm
Screw threads UNC 6-32
Performance specifications

NSPR  248
CPU performance see compatibility tab
Safety, compliance & environmental specifications

Safety standards EN62368-1 CE UKCA REACH RoHS

Operating temperature 2°C to 50
