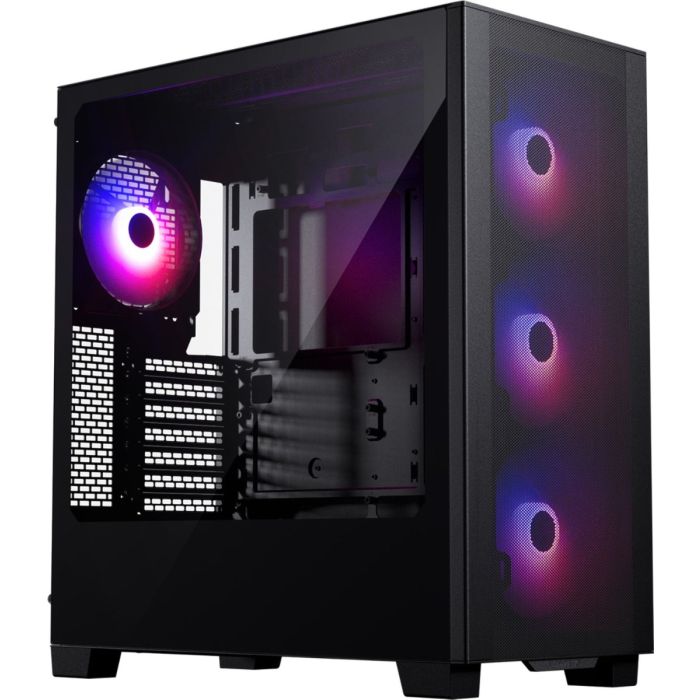

Phanteks XT Pro Ultra Satin Black
Levertijd tussen 5 - 10 werkdagen
With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.
The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provides direct cooling.
Specifications
General
Model No. PH-XT523P1_DBK01
UPC Code 886523303138
Case Dimensions 450 x 230 x 500 mm | 17.7×9.05×19.68 in
Form Factor Mid-Tower
Mainboard Support E-ATX* | ATX | Micro-ATX | Mini-ITX
*Up to 280mm wide
Materials Steel chassis | Tempered glass | ABS plastic
Side Window Yes
PCI Slots 7
Vertical GPU Support 3-slots
Riser Cable sold separately
Internal 2.5″ Bay 5 + 1x 3.5″ HDD
Internal 3.5″ Bay 2 + 3x 2.5″ SSD
Front I/O
1x USB-C 3.2 Gen2
1x USB 3.0
Microphone | Headphone combo
Power Button
Reset Button
Fans
Total Fans
120 mm | 140 mm 10x | 6x
Top 3x | 2x
Front 3x | 3x
Side – | –
Rear 1x | 1x
Midplate 3x | –
Radiators
Top Max. 360 | –
Front Max. 240 | –
Side – | –
Rear 120 | –
Midplate – | –
Clearance
CPU Cooler
Height 184 mm | 7.24 in
GPU
Length 415 mm | 16.33 in
GPU
Width 184 mm | 7.24 in
Power Supply
Length 270 mm | 10.62 in
Top Radiator
Length x Width x Height 415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in
Front Radiator
Length x Width 170 x 132 mm | 6.69 x 5.19 in
Side Radiator
Length x Width –
Midplate Radiator Length x Width –
Extra Net Weight 7.55 kg | 16.64 lbs
Gross Weight 9.45 kg | 20.83 lbs
Warranty 5 Years limited
Scope of Delivery
1x XT Pro Ultra chassis
4x M25-140 D-RGB fans
Accessory
30x Zip ties
Screws
30x Mainboard | SSD screws
4x Power supply screws
8x HDD screws
4x Thumb screws
12x 30mm Fan Screw
1x Motherboard stand-off
1x Stand-off removal tool
| EAN | 0886523303138 |
|---|---|
| Vendor ID | PH-XT523P1_DBK01 |
| Voorraad status | Levertijd tussen 5 - 10 werkdagen |
| Soort kast | Midi tower |
| Materiaal | Staal / Glas |
| Aantal 3,5 inch intern | 2 bays |
| Aantal 2,5 inch intern | 5 bays |
| Aantal 5,25 inch extern | Nee |
| Venster in de zijkant | Ja |
| Front USB aansluiting | USB 3.0 / USB 3.1 |
| Form Factor | EATX |
| Inclusief voeding | Nee |
| Color | Zwart |
